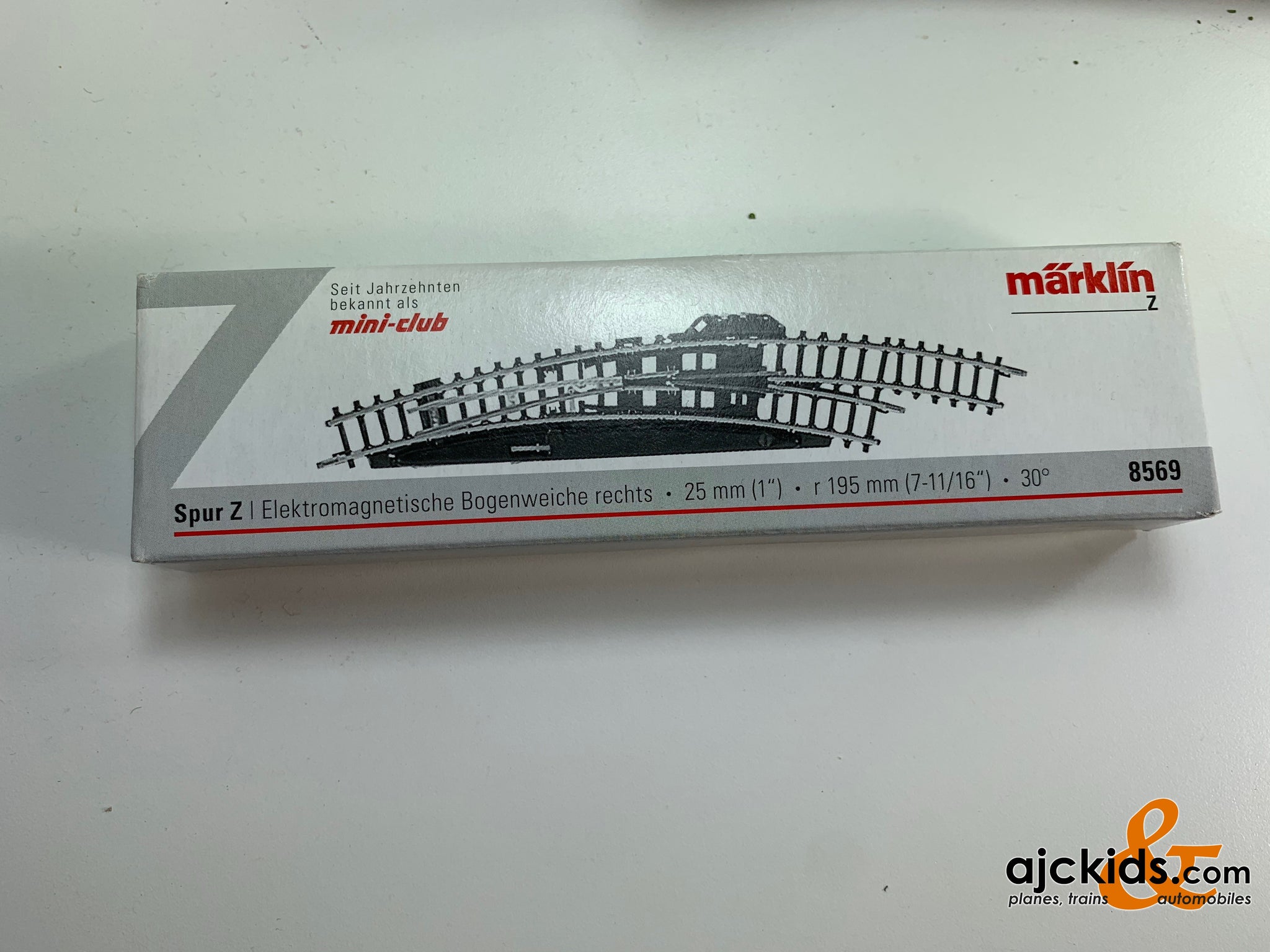

Marklin 8569 - Right curved remote turnout

  • $54.79
    Unit price per
Shipping calculated at checkout.

  Shows to be in stock at Ajckids

Add to Wishlist

Scale: Z-Scale

UPC or EAN: 4001883085692

Product Description

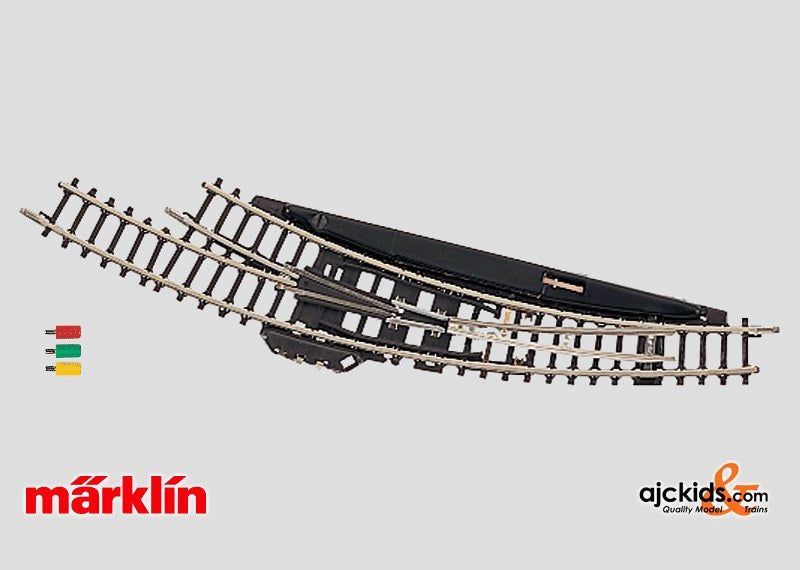

Right curved remote turnout complete with plugs.

Radius 195 mm / 7-11/16. 30° (This means the inner track portion of the turnout is the same as 8521.)

Main track length 25 mm / 1.

Charlie's Tips:

The 8568 left and the 8569 right curved turnouts as well as the 8560 double slip switch have double solenoid mechanisms and manual hand levers.

They can be activated with the 7272/72720 control box or with circuit tracks, and also by hand.

There are two ways to connect a radius 2 circle (8520/8521) to a radius 3 circle (8530/8531), as depicted on the diagram: Either direct with turnout facing turnout, or indirect with an additional 8521 piece between the two turnouts.

In the direct turnout to turnout scenario, the outer (quarter) circle starts with 8531, but ends with 8521.

In the indirect scenario, the outer (quarter) circle has no 8531's, but two 8521's and an 8504 piece at the end.


Marklin Z Track Curved Turnouts 8568 and 8569

Marklin Z Track Curved Turnouts 8568 and 8569

With the Märklin Z 8568 or 8569 curved turnouts you can set up a crossover on a curve between Circles 3 and 4 (r = 195 mm /7 -11/16" and r = 220 mm / 8-11/16') This allows the station/yard tracks to be longer. The 8521 track (NOT the 8531) is joined to the trailing end of the turnout on the outer circle.

Märklin Z 8568 or 8569 curved turnouts

You can also build the opposite configuration, note how the position of the 8521 and 8531 tracks on the outer (larger) circle switch as well. The 8521 always goes on the single track end of the turnout, the 8531 always goes on the branch side.

More Information

Manufacturer Marklin
Item 8569
Scale Z-Scale (1:220)
Availability   Shows to be in stock
UPC or EAN (GTIN) 4001883085692
