Trix 16298 - Class 294 Diesel Locomotive (Remotored)

  • $323.99
    Unit price per
Shipping calculated at checkout.

new for 2023 New for 2023.

We can't ship until around

Add to Wishlist

Scale: N-Scale

UPC or EAN: 4028106162985

Digital: with Sound

Product Description

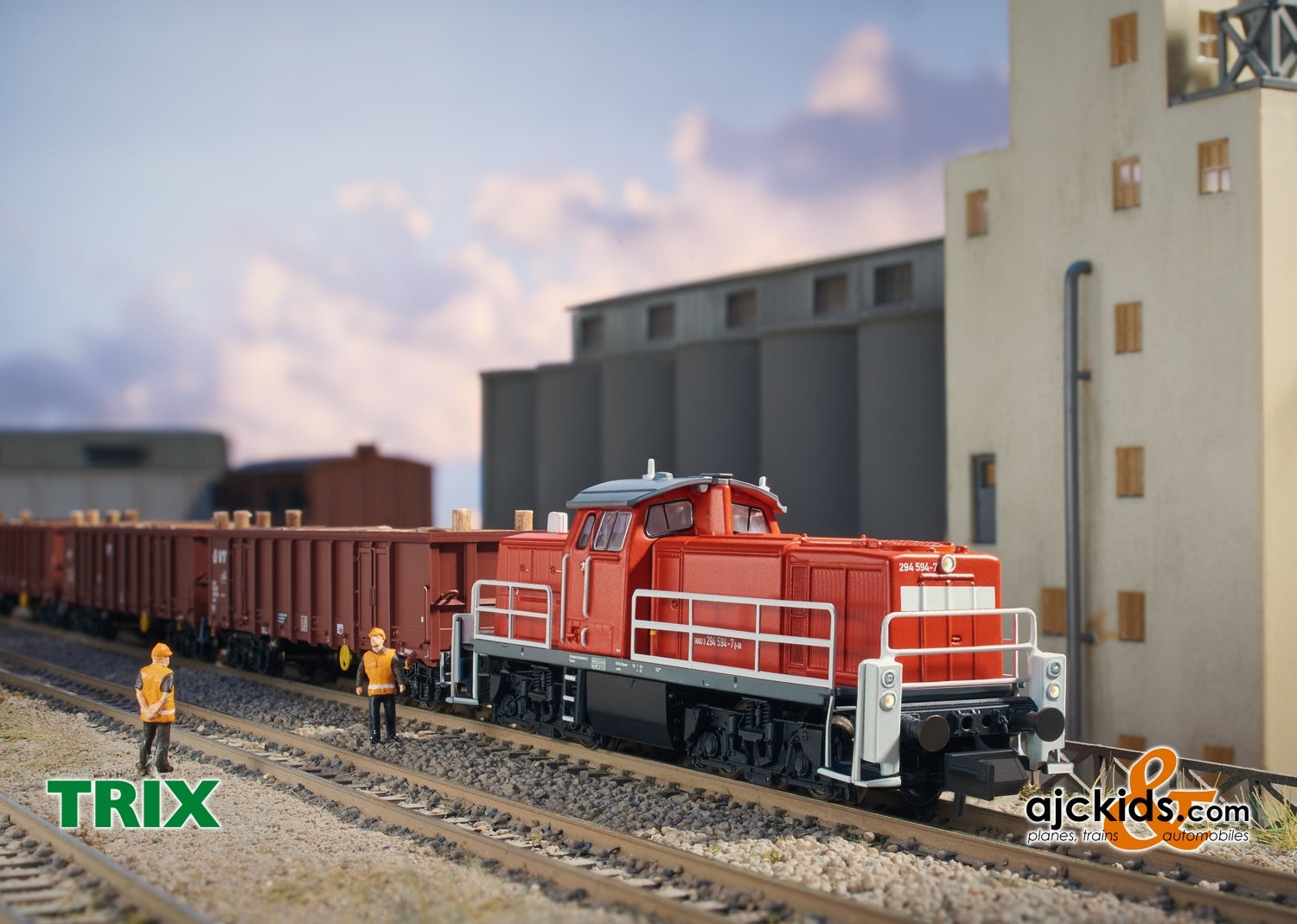

Prototype: German Railroad, Inc. (DB AG) heavy diesel switch engine, road number 294 594-7, with home base lettering for DB Schenker Rail Germany, Inc. in Mannheim, Germany. Remotored version (Motor MTU 8V 4000 R41), including additional side handrails and new ventilation system. The locomotive looks as it did around 2015. Use: Switching work and freight trains.


  • Body and frame constructed of metal.
  • Additional handrails.
  • Cab lighting.
  • New motor sound.

Product description

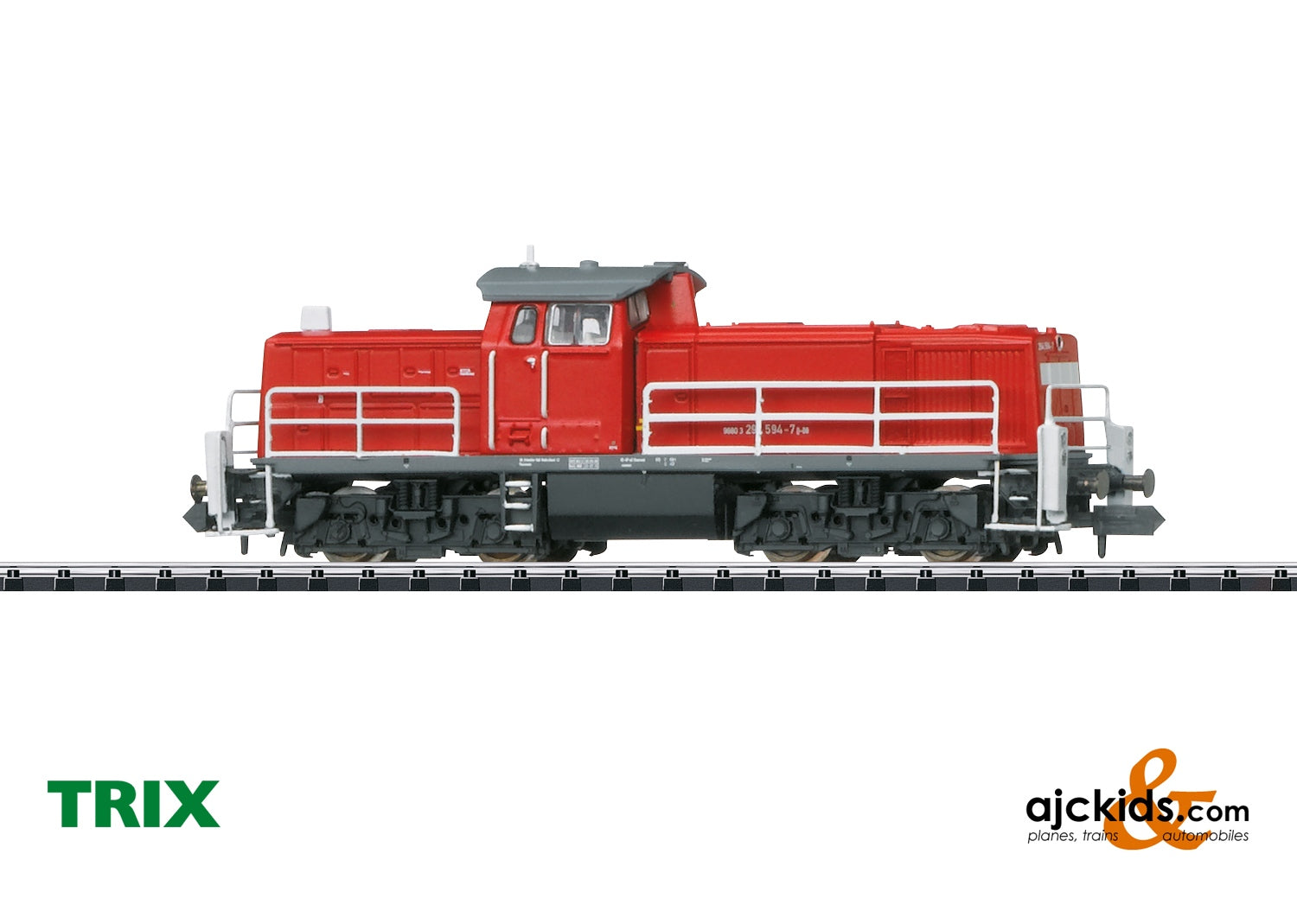

Model: This model has tooling changes. The locomotive has a built-in digital decoder and sound generator for operation with DCC and Selectrix. The motor has a flywheel. 4 axles powered. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The locomotive has cab lighting. It also has separately applied metal grab irons and handrails. Additional steps can be installed under the cab for larger radius curves.

Length over the buffers 89 mm / 3-1/2".

One-time series.


- Herbst-Neuheiten Minitrix 2023

Prototype information

The V 100 was too light for heavy switching work. This was why the German Federal Railroad commissioned a new class from the firm Maschinenbau Kiel (MaK). The V 90 - designated the class 290 from 1968 on - was to be closely based on the successful V 100 general-purpose locomotive. This was not very apparent externally; the V 90 was more angular than the V 100. However, inside the German Federal Railroad had proven components installed, such as the diesel prime mover that worked in the V 100.20 (212) and a very similar universal joint drive shaft. On August 4, 1968, the German Federal Railroad took delivery of road number V 90 001.

Twenty pre-production locomotives demonstrated the quality of the design in hard daily switching work. The regular production version had only slight design changes. By September 4, 1974, the German Federal Railroad had taken delivery of 387 regular production units from MaK, Deutz, and Henschel. Procurement came to a halt, since a more powerful variant was ready in the form of the class 291.

Road number 290 999 was a locomotive that the German Federal Railroad leased from the military. It was purchased in 1990 and the German Federal Railroad assigned it road number 290 408. Today, these locomotives are still working at all larger switchyards and are also providing motive power for transfer trains. However, they do not have their original road numbers. After installation of radio remote control, the DB designated them the class 294.


qOne-time series
_Era VI
§DCC decoder
`Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
!Sound effects circuit
PTriple headlights and two red marker lights that change over with the direction of travel.
,Lighting with warm white LED’s
ZMetal locomotive frame and body
\For adults only


 ATTENTION: adults only
 ATTENTION: not for children under 15 years
Headlight(s) X X
Horn X X
Diesel locomotive op. sounds X X
Engineer’s cab lighting X X
Direct control X X
Sound of squealing brakes off X X
Rear Headlights off X X
Horn blast 2 X X
Front Headlights off X X
Station Announcements X X
Cab Radio X X
Brake Compressor X X
Blower motors X X
Letting off Air X X
Whistle for switching maneuver X X
Special sound function X X
Sanding X X
Headlight(s) X X
SIFA warning sound X X
Replenishing fuel X X
Window X X
Warning announcement X X
Train radio X X
Dialog X X
Rail Joints X X
Sound of uncoupling X X

More Information

Manufacturer Trix
Item 16298
Scale N-Scale

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Railroad DB AG - German Bahn
UPC or EAN (GTIN) 4028106162985
