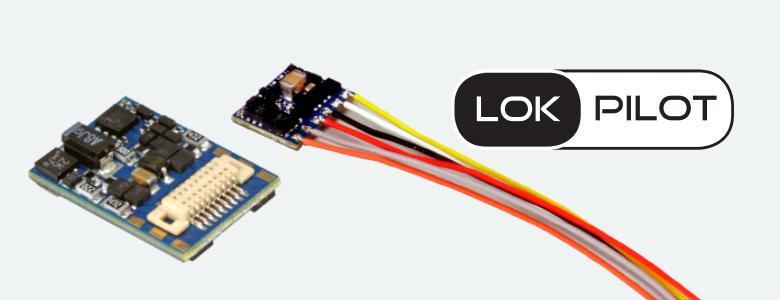

LokPilot 5 micro DCC / MM / SX, 6-pin direct, gauge N, TT

The LokPilot 5 micro is the smallest digital decoder from ESU to date. Thanks to the use of sub-miniature components, 8-layer circuit boards and the latest production technology, it is so small with only 8.0mm x 7.0mm and a thickness of only 2.4mm (on the capacitor: 2.9mm) that it can also be used in very small locomotives Can accommodate nominal sizes Z, N or TT. Nevertheless, functionality and robustness have not been saved compared to the larger versions.

LokPilot 5 micro decoders are offered with all common interfaces. The variants with Next18 or PluX16 interface are slightly larger with a base area of ​​13.0mm x 9.2mm, but they also speak for the mfx®-compatible M4 protocol.

Modes of operation

The LokPilot 5 micro is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In the DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically.

It masters all DCC programming modes and, thanks to RailCom®, the CV values ​​on the main track can be read out with suitable central units. Auxiliary registers exist for central units that can only program CVs from 1-255.

Motorola® users benefit from up to 28 speed levels with 255 addresses. Three additional Motorola® addresses enable 16 functions to be triggered. A built-in programming mode also enables reprogramming with the venerable 6021 Control Unit.

The Next18 and PluX16 variants also allow automatic logon to mfx®-compatible control panels thanks to the M4 protocol. All 32 possible function keys are offered here.

The LokPilot 5 micro decoder recognizes the Märklin® braking sections as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with direct voltage is also possible. It also stops with a Selectrix® braking diode. An ABC automatic shuttle train enables automatic commuting between two train stations.

The LokPilot 5 decoder can be used on analogue direct current railways. The variants with Next18 or PluX16 can also be used on analog AC systems. The maximum speed can be set separately.

The decoder switches between the operating modes fully automatically "on-the-fly". Usually nothing needs to be adjusted.

Functions

We know that you want your locomotives to be as realistic as possible. That is why we have equipped the LokPilot 5 micro with an astonishing number of function outputs. The variants with 6-pole or 8-pole cable harness offer 4 amplified function outputs with 180mA output current each as well as two logic level outputs for servos or Susi. The versions with Next18 or PluX16 interface have a total of 6 amplified outputs and two logic level outputs. All important light functions are available. The brightness of each output can be set separately. The decoder is capable of automatic pushing and pulling when uncoupling for ROCO®, Krois® and Telex® couplings.

Engine control

The engine control of the LokPilot 5 micro has been fundamentally improved again. A variably adjustable PWM clock frequency of 10kHz to 50kHz ensures super-quiet operation, especially with bell-shaped armature motors - the typical "humming" is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function enables the decoder to be automatically calibrated to the motor. With a motor current of up to 0.75A, the LokPilot 5 micro decoder delivers enough juice for the intended application scenarios.

Operational safety

If desired, a PowerPack can be connected to the LokPilot 5 micro to bridge dirty rail sections.

protection

Of course, the motor output and the function outputs are protected against overload. We want you to enjoy your decoder for as long as possible.
