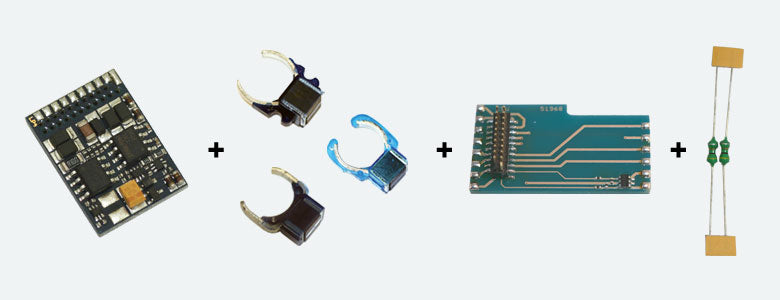

LokPilot digital set 21MTC 2 including LokPilot V4.0 M4 64614, 51968 and 51961, shielded choke

Many model railroaders would like to exchange their old interface for the modern 21MTC version when converting their aged Märklin® locomotives and look for a simple and affordable opportunity to do so.

For this application, we offer our new digital conversion sets. Besides a LokPilot V4.0 M4 (64614) multi-protocol digital decoder with 21MTC interface, the set includes one of three appropriate permanent magnets, two choke coils as well as the appropriate adapter board 51968. The adapter board 51968 simulates the well-known Delta® 6090x decoders in shape and size and in most cases, can be plugged directly into the specified holding.

Another advantage of the interface is that a subsequent decoder change can be carried out without soldering. The model railroader also benefits from the price advantage of buying the whole set.

Operational modes:

  • NMRA/DCC with 14, 28 and 128 speed steps,
  • DCC RailCom® DCC 2-digit and 4-digit addresses (long and short addresses)
  • Digital Motorola® (old and new),
  • up to 255 addresses for Motorola® use Selectrix® operation
  • Analog DC (de-selectable);
  • Analog AC (de-selectable)
  • Automatic recognition of operational mode and DCC speed selection
  • Supports Lenz® LG100, Märklin®, Roco® braking section and ZIMO® HLU commands
  • Supports the ABC braking mode
  • Base-direction bit / stores operational status
  • Intelligent programming mode with Märklin® 6021
  • Switching speed and acceleration & deceleration key selectable

Throttle:

  • 1.1 A continuous load Runs DC, coreless and AC motors (with permanent magnet)
  • Silent, safe 40 / 20 kHz pulse width frequency motor regulation
  • Motor output overload protection; Fifth generation back EMF (de-selectable)

Function outputs:

  • 4 outputs
  • 21MTC connector version has two additional logic outputs
  • 250mA load per output
  • 500mA total load of all function outputs short-circuit-proof
  • Free function allocation (function mapping)

Dimensions:

  • 21.3mm x 15.5mm x 5.5mm
