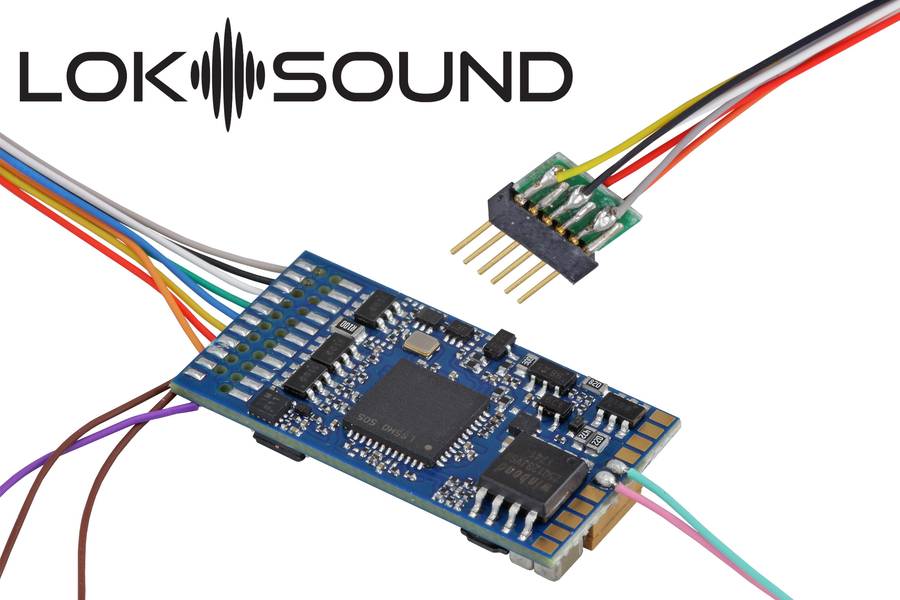

ESU 58416 - LokSound 5 DCC/MM/SX/M4, 6-pin NEM651

Skip to product information
1 of 1

$110.99
Regular price $11099
Regular price Sale price $11099
Sale Sold out
Shipping calculated at checkout.
Style

Shows in stock at Ajckids

Add To Wishlist

Scale: All Scales

EAN/UPC: 4044645584163

View full details

LokSound 5 DCC/MM/SX/M4 “Blank decoder”, 6-pin NEM651, Retail, with Speaker 11x15mm, gauge: 0,

Select "Custom Sound" and fill out the order number for the desired sound file. They are listed on the bottom of this description.

The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive.

LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure.

Operating modes

Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations.

This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only



facilitate programming of CVs ranging from 1 to 255.

Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021.

The M4 protocol supports the automatic registration on mfx® compatible central units.

The LokSound 5 decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.

The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts.

Sound

The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.

The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.

Functions

We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers.

Motor control

Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types.

LokSound 5 DCC

The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts.

Ordering information

  Art.No. Description
  58420 LokSound 5 DCC "blank decoder", 8-pin NEM652, gauge: 0, H0
  58429 LokSound 5 DCC "blank decoder", 21MTC NEM6660, gauge: 0, H0
  58410 LokSound 5 DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: 0, H0
  58412 LokSound 5 DCC/MM/SX/M4 "blank decoder", PluX22, with speaker 11x15mm, gauge: 0, H0
  58416 LokSound 5 DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: 0, H0
  58419 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM6660, with speaker 11x15mm, gauge: 0, H0
  58449 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC "MKL", gauge: 0, H0

We can upload soundfiles for you

Select "Preprogrammed with Soundfiles" and select one of the following available soundfiles. We will upload the sounds to the decoder before we ship it out. There is a $5 surcharge for these decoders. The final cost is reflected when you select "preprogrammed" in the selection box.

Order Nr Type Country Description
S0001 Steam  Germany Universal Schmalspur BR99
S0002 Steam  Germany Universal 3 Zylinder
S0003 Steam  Germany 2 - 4 Zylinder Universal
S0016 Steam  Germany Adler
S0006 Steam  Germany BR 01
S0014 Steam  Germany BR 01.10 Kohle
S0026 Steam  Germany BR 01.10 Oil
S0007 Steam  Germany BR 03
S0223 Steam  Germany BR 03.10 DR-Reko
S0027 Steam  Germany BR 03.10 Oil
S0018 Steam  Germany BR 05
S0017 Steam  Germany BR 06
S0019 Steam  Germany BR 18 201
S0236 Steam  Germany BR 18.3 (Badische IVh)
S0005 Steam  Germany BR 18.4 / BR18.5 / Bayr.-S36
S0008 Steam  Germany BR 23
S0021 Steam  Germany BR 24 / 64
S0004 Steam  Germany BR 38
S0249 Steam  Germany BR 38.4
S0212 Steam  Germany BR 39
S0024 Steam  Germany BR 41 Kohle
S0025 Steam  Germany BR 41 Oil
S0213 Steam  Germany BR 43
S0028 Steam  Germany BR 44 Oil
S0010 Steam  Germany BR 50
S0011 Steam  Germany BR 50
S0012 Steam  Germany BR 50
S0322 Steam  Germany BR 50.35 / BR 50.50
S0246 Steam  Germany BR 52
S0015 Steam  Germany BR 52 Kondenstender
S0158 Steam  Germany BR 53
S0020 Steam  Germany BR 55
S0133 Steam  Germany BR 58 / BR 58.3
S0324 Steam  Germany BR 61 Stromlinie
S0241 Steam  Germany BR 62
S0242 Steam  Germany BR 65
S0290 Steam  Germany BR 71
S0205 Steam  Germany BR 76
S0022 Steam  Germany BR 78
S0013 Steam  Germany BR 80
S0336 Steam  Germany BR 82
S0029 Steam  Germany BR 86
S0077 Steam  Germany BR 89
S0153 Steam  Germany BR 91
S0154 Steam  Germany BR 91
S0023 Steam  Germany BR 93
S0267 Steam  Germany BR 94.5 pr.T16.1
S0157 Steam  Germany BR 95
S0009 Steam  Germany BR 96 "Mallet"
S0227 Steam  Germany BR 98 "Lokalbahn"
S0240 Steam  Germany BR 98.10
S0119 Steam  Germany BR 98.3 "Glaskasten"
S0088 Steam  Germany BR 99.51-60 "Sächsische IV K"
S0143 Steam  Germany Kittel Steamtriebwagen
S0291 Steam  Germany T18.002 "Steamturbine"
S0058 Diesel  Germany Blue Tiger
S0034 Diesel  Germany Bombardier
S0256 Diesel  Germany BR 119 DR - 12KVD
S0255 Diesel  Germany BR 119 DR - M820
S0120 Diesel  Germany BR 119 DR "U-Boot" ( BR 219 DB )
S0059 Diesel  Germany BR 120 (DR)
S0263 Diesel  Germany BR 210
S0033 Diesel  Germany BR 218
S0262 Diesel  Germany BR 219 / V169
S0042 Diesel  Germany BR 232 DB (BR 130 / 131 / 132 DR)
S0268 Diesel  Germany BR 245 "Traxx DE ME"
S0220 Diesel  Germany BR 246 "Traxx P160 DE"
S0296 Diesel  Germany BR 247 "Vectron DE"
S0248 Diesel  Germany BR 261
S0326 Diesel  Germany BR 265
S0049 Diesel  Germany BR 605 "ICE VT"
S0078 Diesel  Germany BR 643 "Talent"
S0052 Diesel  Germany BR 650
S0159 Diesel  Germany BR Köf I
S0089 Diesel  Germany BR Köf II
S0228 Diesel  Germany Class 66 / Class 77
S0094 Diesel  Germany Desiro
S0238 Diesel  Germany DHG 500 C (Henschel Werkslok)
S0126 Diesel  Germany Feuerwehrlok
S0080 Diesel  Germany G1200 MaK Vossloh
S0214 Diesel  Germany G1700
S0245 Diesel  Germany G2000BB (MTU Motor)
S0334 Diesel  Germany Henschel BBC DE2500 / BR202 DB
S0091 Diesel  Germany Klein(Feldbahn-Lok)
S0271 Diesel  Germany LINT S0128 LINT 27
S0207 Diesel  Germany LINT 41
S0330 Diesel  Germany MaK DE 1002 (MTU 12V 396)
S0329 Diesel  Germany MaK DE 1002 (MWM TBD 604B V12)
S0195 Diesel  Germany ME 26 / NSB Di6 21MTC
S0235 Diesel  Germany O&K MV9B / WHL19
S0139 Diesel  Germany Schienenzeppelin
S0036 Diesel  Germany US-Universal-FP7
S0032 Diesel  Germany V100 DB (BR 212)
S0037 Diesel  Germany V100 DR
S0283 Diesel  Germany V15 / BR 101 DR
S0140 Diesel  Germany V160
S0076 Diesel  Germany V180 DR (BR 118)
S0232 Diesel  Germany V200.1
S0142 Diesel  Germany V300
S0048 Diesel  Germany V320
S0030 Diesel  Germany V36
S0053 Diesel  Germany V36 (Doppeltes Lottchen)
S0031 Diesel  Germany V60
S0035 Diesel  Germany V60 DR
S0055 Diesel  Germany V80
S0127 Diesel  Germany V90 (MTU-12V-652)
S0237 Diesel  Germany Vossloh Euro 4000
S0050 Diesel  Germany VT 08
S0039 Diesel  Germany VT 11.5
S0081 Diesel  Germany VT 11.5 (BR602) "Gasturbine"
S0082 Diesel  Germany VT 12.5 "Stuttgarter Rössle"
S0288 Diesel  Germany VT 135 / VT 70.9
S0040 Diesel  Germany VT 18
S0239 Diesel  Germany VT 2.09 / Ferkeltaxe
S0257 Diesel  Germany VT 36.5
S0206 Diesel  Germany VT 610
S0198 Diesel  Germany VT 612
S0208 Diesel  Germany VT 614
S0280 Diesel  Germany VT 62
S0041 Diesel  Germany VT 628
S0054 Diesel  Germany VT 98
S0155 Diesel  Germany VW Draisine
S0312 Diesel  Germany Wismarer Schienenbus
S0084 Electric  Germany BR 101
S0060 Electric  Germany BR 110
S0216 Electric  Germany BR 111
S0065 Electric  Germany BR 120
S0085 Electric  Germany BR 141 / E41
S0069 Electric  Germany BR 143 DB / 243 DR
S0219 Electric  Germany BR 151
S0138 Electric  Germany BR 181 / 184
S0265 Electric  Germany BR 187 "Traxx 3 Last Mile"
S0266 Electric  Germany BR 187 "Traxx 3"
S0318 Electric  Germany BR 189 / ES64F4
S0258 Electric  Germany BR 193 "Vectron"
S0317 Electric  Germany BR 193 "Vectron" Last Mile
S0067 Electric  Germany BR 401 / 402 (ICE 1, ICE 2)
S0217 Electric  Germany BR 403 (ICE 3)
S0121 Electric  Germany BR 420
S0321 Electric  Germany BR 442 / Talent 2
S0338 Electric  Germany DB BR185.1
S0063 Electric  Germany E 03 / BR 103
S0306 Electric  Germany E 17 / BR117
S0092 Electric  Germany E 18 / BR 118
S0292 Electric  Germany E 32
S0061 Electric  Germany E 40
S0070 Electric  Germany E 44
S0066 Electric  Germany E 50 / BR 150
S0062 Electric  Germany E 75
S0064 Electric  Germany E 94
S0093 Electric  Germany ET 65
S0289 Electric  Germany ET 91 / BR 491 "Gläserner Zug"
S0087 Electric  Germany ETA / ESA 176
S0115 Electric  Germany ETA150 - ESA150
S0086 Electric  Germany Eurosprinter
S0144 Electric  Germany Kittel Steamtriebwagen
S0090 Electric  Germany Streetcar Altbau
S0285 Electric  Germany Streetcar Düwag Bogestra
S0116 Electric  Germany Streetcar GT4
S0156 Other Germany Horsedrawn
S0056 Diesel  Austria ÖBB 2016 Hercules - ER20
S0117 Diesel  Austria ÖBB 2043
S0209 Diesel  Austria ÖBB 2050
S0073 Electric Austria ÖBB 1016 "Taurus"
S0218 Electric Austria ÖBB 1042
S0075 Electric Austria ÖBB 1044
S0224 Electric Austria ÖBB 1116
S0225 Electric Austria ÖBB 1216 - SŽ 541
S0335 Electric Austria ÖBB Cityjet / Ventus / OEBB4744/4746
S0101 Electric Belgium SNCB HLE 13
S0102 Electric Belgium SNCB HLE 15
S0103 Electric Belgium SNCB HLE 16
S0104 Electric Belgium SNCB HLE 20
S0105 Electric Belgium SNCB HLE 21
S0106 Electric Belgium SNCB HLE 23
S0313 Electric Belgium SNCB HLE 28 (Type 120)
S0124 Electric Belgium SNCB Reeks 11, 12. 21, 27
S0123 Electric Belgium SNCB Reeks 15
S0104 Electric Belgium SNCB HLE 20
S0105 Electric Belgium SNCB HLE 21
S0106 Electric Belgium SNCB HLE 23
S0213 Electric Belgium SNCB HLE 28 (Type 120)
S0124 Electric Belgium SNCB Reeks 11, 12. 21, 27
S0123 Electric Belgium SNCB Reeks 15
S0332 Electric Switzerland BLS Ae 6/8
S0151 Electric Switzerland BLS Ce 4/4 311
S0253 Electric Switzerland BLS RABe 515
S0147 Electric Switzerland BLS Re 4/4
S0083 Electric Switzerland BR 185.2 DB (SBB Re 482 BLS Re 485)
S0314 Electric Switzerland FO/BVZ HGe 4/4 I
S0315 Electric Switzerland FO/BVZ HGe 4/4 II
S0328 Electric Switzerland FO/MGB Deh 4/4 I / Deh 4/4 II
S0272 Electric Switzerland RhB Abe 4/4 II
S0276 Electric Switzerland RhB ABe 4/4 III
S0340 Electric Switzerland RhB Abe 8/12 / Allegra
S0331 Electric Switzerland RhB Ge 2/4
S0118 Electric Switzerland RhB Ge 4/4 I
S0254 Electric Switzerland RhB Ge 4/4 II
S0150 Electric Switzerland RhB Ge 4/4 III
S0226 Electric Switzerland RhB Ge 4/6
S0259 Electric Switzerland RhB Ge 6/6 I
S0260 Electric Switzerland RhB Ge 6/6 II
S0072 Electric Switzerland RhB Re 4/4 II
S0145 Electric Switzerland SBB Ae 3/6 I
S0146 Electric Switzerland SBB Ae 3/6 II
S0074 Electric Switzerland SBB Ae 6/6
S0279 Electric Switzerland SBB Ae 8/14
S0250 Electric Switzerland SBB BDe 4/4
S0071 Electric Switzerland SBB Ce 6/8 III - Be 6/8 III
S0307 Electric Switzerland SBB Ee 3/3
S0204 Electric Switzerland SBB RABDe 500 / ICN
S0231 Electric Switzerland SBB RABe 511
S0230 Electric Switzerland SBB RBDe560 / NPZ-Domino
S0068 Electric Switzerland SBB Re 460
S0148 Electric Switzerland SBB Re 6/6
S0097 Electric Switzerland SBB TEE RAe II - Gottardo
S0129 Electric Switzerland Stadler FLIRT
S0071 Electric Switzerland SBB Ce 6/8 III - Be 6/8 III
S0207 Electric Switzerland SBB Ee 3/3
S0204 Electric Switzerland SBB RABDe 500 / ICN
S0231 Electric Switzerland SBB RABe 511
S0230 Electric Switzerland SBB RBDe560 / NPZ-Domino
S0068 Electric Switzerland SBB Re 460
S0148 Electric Switzerland SBB Re 6/6
S0097 Electric Switzerland SBB TEE RAe II - Gottardo
S0129 Electric Switzerland Stadler FLIRT
S0278 Electric Czech Republic ŽSR/ZSSK350 / SD ES499.0
S0197 Steam  Denmark DSB Type D
S0193 Diesel Denmark DSB ME
S0196 Diesel Denmark DSB MO
S0194 Diesel Denmark DSB MT
S0190 Diesel Denmark DSB MZ I
S0191 Diesel Denmark DSB MZ II
S0192 Diesel Denmark DSB MZ IV
S0038 Diesel Denmark DSB Nohab
S0045 Diesel Spain RENFE D319
S0215 Diesel Spain RENFE D333
S0122 Steam  France SNCF 140 C
S0301 Steam  France SNCF 141 TA
S0320 Steam  France SNCF 141R / 1244 Mikado
S0200 Steam  France SNCF 231
S0057 Diesel France SNCF 68000
S0319 Diesel France SNCF A1AA1A 62000
S0251 Diesel France SNCF BB 63000 / SZ643
S0337 Diesel France SNCF BB63500
S0113 Diesel France SNCF X2800
S0047 Diesel France SNCF Y6200/Y6400 Poyaud
S0125 Electric France SNCF BB 16500 (21MTC)
S0114 Electric France SNCF BB 25100
S0294 Electric France SNCF BB 27000
S0210 Electric France SNCF BB 7200
S0112 Electric France SNCF BB 724000 / 734000
S0302 Electric France SNCF BB15000
S0305 Electric France SNCF BB22000
S0295 Electric France SNCF CC 40100
S0316 Electric France SNCF CC 6500
S0201 Electric France SNCF TGV
S0303 Electric France SNCF Z27500
S0203 Electric France SNCF Z27500
S0199 Diesel Italy FS DE 753
S0252 Diesel Netherlands NS 6400
S0051 Electric Netherlands NS 1600 / 1800
S0079 Diesel Poland KEG 2100 / PKP ST434
S0275 Diesel Poland PKP SM42 / SP42
S0243 Diesel Poland PKP T669 / Rh770 / ChME3
S0277 Electric Poland PKP EU07 / EP07
S0327 Electric Portugal CP 2500/2550
S0141 Diesel Sweden SJ T44
S0096 Electric Sweden LKAB DM3-1200
S0095 Electric Sweden LKAB IORE
S0311 Steam  Great Britain BR Standard Class 7 "Britannia"
S0309 Steam  Great Britain SR Merchant Navy Class
S0310 Steam  Great Britain SR West Country (Un-Rebuilt)
S0308 Steam  Great Britain SR West Country Class
S0287 Diesel Great Britain Class 08 / NS 500

EAN/UPC: 4044645584163
