Trix 22980 - Class 44 Steam Locomotive (Sound)

Skip to product information
1 of 3

$476.90
Regular price $47690
Regular price Sale price $47690
Sale Sold out
Shipping calculated at checkout.

Available to order, not in stock here (can email for estimate)

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4028106229800

System: 2-Rail DC.

View full details

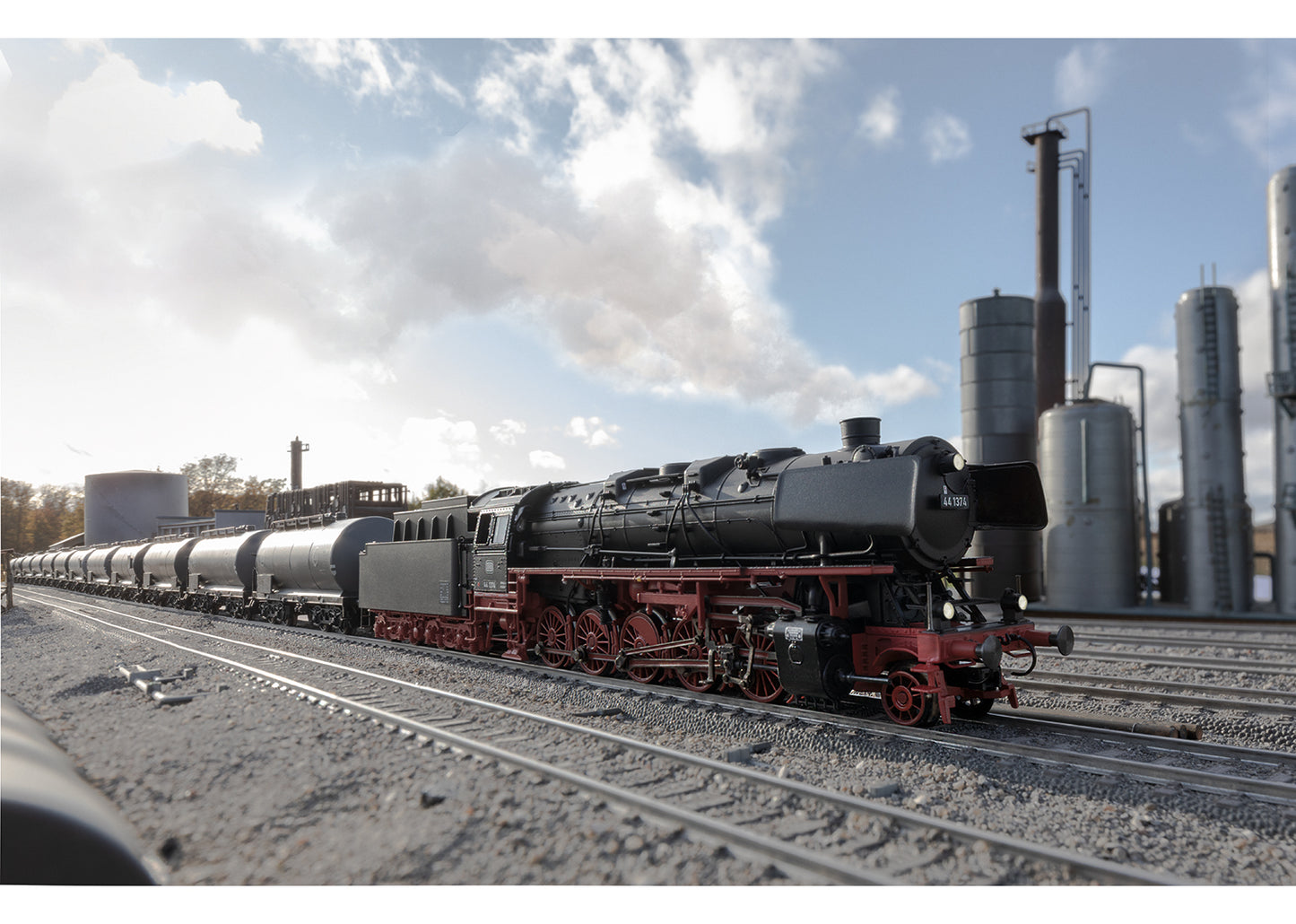

Prototype: German Federal Railroad (DB) class 44 heavy steam freight locomotive, with a type 2´2´T34 standard design coal tender. Black/red basic paint scheme. Standard design Witte smoke deflectors, pilot truck wheel set with spoked wheels, without smoke box central locking, with an inductive magnet on one side. Road number 44 1374. The locomotive looks as it did around 1962/63.

Highlights

  • Version with a coal tender, based on the new tooling for the class 44 steam locomotive.
  • Digital decoder and a variety of operation and sound functions included.
  • Cab lighting, firebox flickering, and flickering at the ash pan can also be controlled digitally.
  • Partially open bar frame with a mostly clear view between the running gear and the boiler.
  • High-efficiency propulsion with a flywheel, mounted in the boiler.
  • Ideal steam locomotive for unit trains.

Product description

Model: The locomotive has a digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the coal tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting, firebox flickering, and flickering at the ash pan can also be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with an NEM pocket and a guide mechanism on the tender and on the front of the locomotive.

The minimum radius for operation is 360 mm / 14-3/16".

Protective sleeves for the piston rods, brake hoses, and imitation couplers are included as detail parts. Length over the buffers 26 cm / 10-1/4".

Publications

Four-axle standard design tank cars to go with this locomotive for making long unit trains can be found under item number 00727 as a 12-car display with different car numbers in the Märklin H0 assortment with information about the required DC wheelsets.

This model can be found in an AC version in the Märklin H0 assortment under item number Marklin 39881.

Publications

- New items brochure H0 2020 - Main Catalog H0 2020/2021

Features

d Era III
§ DCC decoder
` Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
! Sound effects circuit
* Triple headlights in the front, off with the locomotive moving in reverse
Z Metal locomotive frame and body
ï Märklin close couplers in standard pocket with guide mechanism.
\ For adults only

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
DCC SX2 SX MFX
Headlight(s) X X
Smoke generator contact X X
Steam locomotive op. sounds X X
Locomotive whistle X X
Direct control X X
Sound of squealing brakes off X X
Engineer’s cab lighting X X
Whistle for switching maneuver X X
Flickering Light in Fire Box X X
Air Pump X X
Letting off Steam X X
Sound of coal being shoveled X X
Tipping grate X X
Water Pump X X
Injectors X X
Replenishing fuel X X
Replenishing fuel X X
Replenishing fuel X X
Sanding X X
"Switcher Double ""A"" Light" X X
Switching maneuver X X
Generator Sounds X X
On/off function X X
Coal being shoveled and firebox flickering X X
Rail Joints X X
Safety Valve X X
Sound of Couplers Engaging X X
Light Function X X

EAN/UPC: 4028106229800
