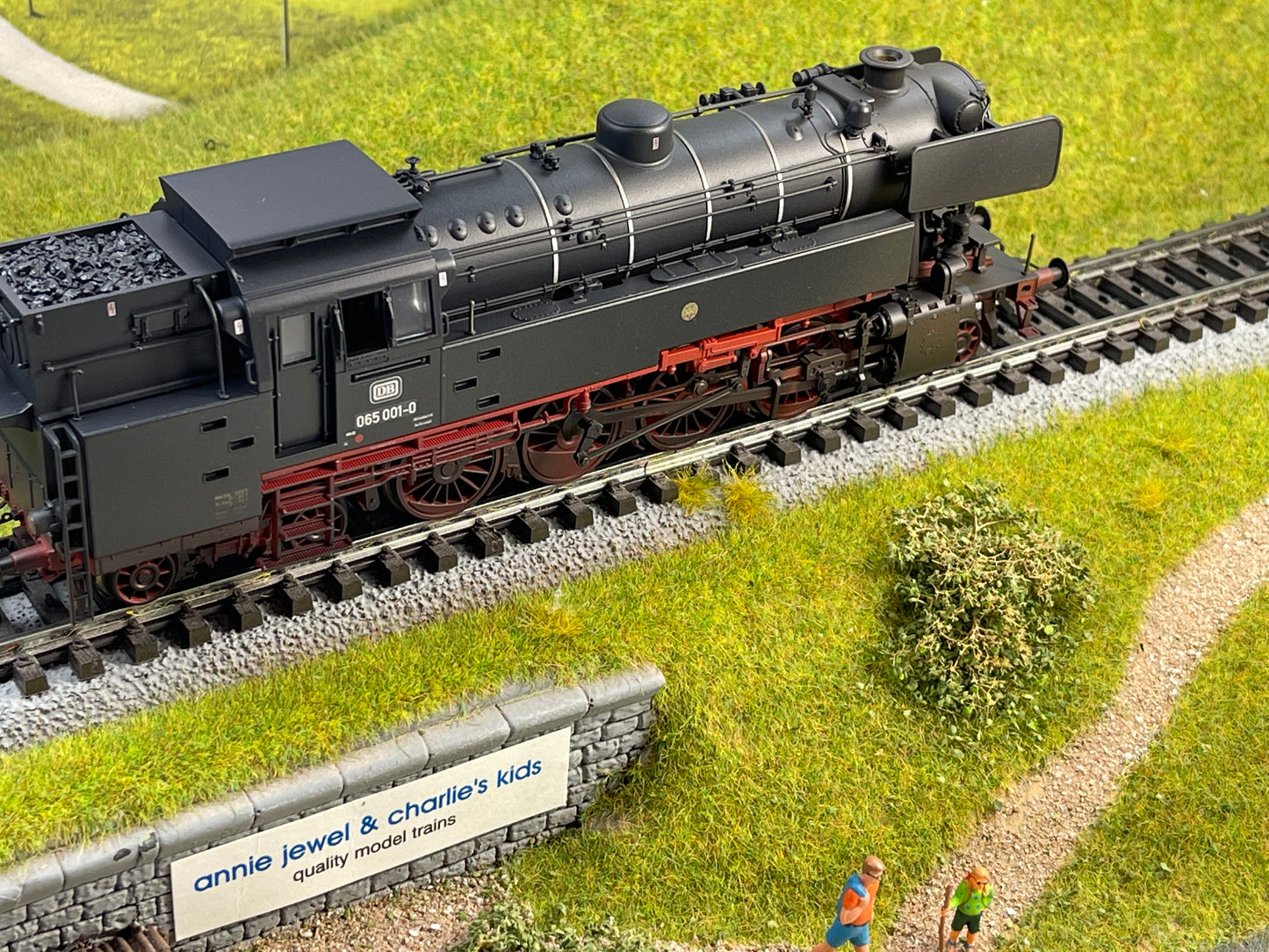

Trix 22664 - Class 065 Steam Locomotive

Skip to product information
1 of 13

$467.99
Regular price $46799
Regular price $519.00 Sale price $46799
Sale Sold out
Shipping calculated at checkout.

Available to order, not in stock here (can email for estimate)

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4028106226649

System: 2-Rail DC.

View full details

Prototype: German Federal Railroad (DB) class 065 passenger tank locomotive. Version with a feed water heater, ventilation installation on the roof, and DB Reflex glass lamps. Road number 065 001. Weathered version.

Highlights

  • Especially intricate metal construction
  • Many separately applied details
  • Cab lighting also controlled digitally
  • Marker lights controlled separately in digital operation
  • Factory-installed smoke unit
  • Multi-protocol decoder includes extensive operation and sound functions
  • Locomotive includes authentic signs of weathering

Product description

Model: The locomotive has a digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. Four axles powered. Traction tires. The locomotive is constructed mostly of metal. It has a factory-installed smoke unit. The smoke unit contact will work in conventional operation and can be controlled digitally. Triple headlights that change over with the direction of travel will work in conventional operation and can be controlled digitally. Dual red marker lights can be controlled separately in digital operation. The cab lighting can also be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. Authentic signs of weathering are included. The minimum radius for operation is 360 mm / 14-3/16". Piston rod protection sleeves and brake hoses are included. Length over the buffers approximately 17.8 cm / 7".

One-time series.

Charlies Tip

A passenger car set to go with this locomotive is offered under item number Trix 23389. This model can be found in an AC version in the Märklin H0 assortment under item number Marklin 39651 exclusively for the MHI.

Publications

- New items brochure H0 2022

Features

qOne-time series
eEra IV
§DCC decoder
`Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
!Sound effects circuit
®Dual red marker lights
*Triple headlights in the front, off with the locomotive moving in reverse
WMetal locomotive frame and boiler
ïMärklin close couplers in standard pocket with guide mechanism.
\For adults only

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
DCC SX2 SX MFX
Headlight(s) X X
Steam locomotive op. sounds X X
Locomotive whistle X X
Smoke generator X X
Direct control X X
Engineer’s cab lighting X X
Front Headlights off X X
Bell X X
Marker light(s) X X
Sound of squealing brakes off X X
Sound of coal being shoveled X X
Conductor's Whistle X X
Letting off Steam X X
Switching range + switching light X X
Whistle for switching maneuver X X
Switching maneuver X X
Air Pump X X
Water Pump X X
Injectors X X
Sanding X X
Safety Valve X X
Tipping grate X X
Generator Sounds X X
Replenishing water X X
Replenishing sand X X
Replenishing coal X X
Grade crossing X X

Power House in Suburban Service
The DB new construction program had plans for a tank locomotive for passenger service in suburban areas. A driving wheel diameter of 1,500 mm / 60" and a maximum speed of 85 km/h / 53 mph were stipulated here. Krauss-Maffei, Inc. in Munich delivered the first handsome prototypes, road numbers 65 001 and 65 002, in March of 1951. Another eleven units (road numbers 65 003-013) were put into service over the course of the year, and in 1955/56 came road numbers 65 013-018. An absolute high point for this class was the Darmstadt maintenance facility, where eleven locomotives (road numbers 65 001-011) were stationed between 1954 and 1966. After various electrification projects, they ran starting in the fall of 1964 only in regional service on the Oden Forest Line Darmstadt – Erbach – Eberbach as well as on the two Oden Forest branch lines from Weinheim/Bergstraße to Wahlen and Fürth/Odenwald.

EAN/UPC: 4028106226649
