ESU 50709 - Interior lighting set with Decoder
Shows to be in stock at Ajckids
Scale: All Scales
UPC or EAN: 4044645507094

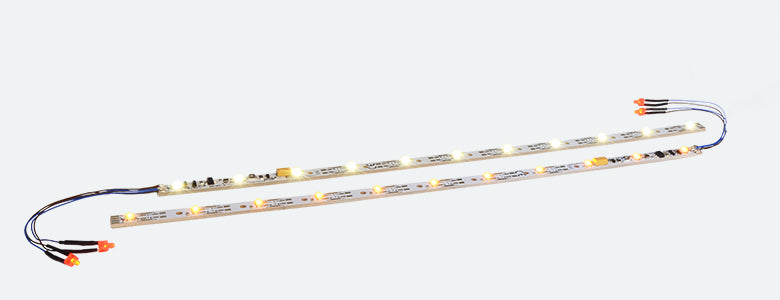

Please note: The image shows two different light strips: the 50708 warm-white on top, and the 50709 yellow on the bottom.
Interior lighting set with Decoder including taillight, 255mm, separable, PowerPack option, 11 LED, yellow , gauge: N, TT, H0
The 255mm long, 9mm slim LED lighting strips with 11 LEDs are designed for N, TT and H0 gauge cars that are going to be operated on digital model railroads.
We are offering two versions: The version with Part number 50708 is equipped with warmwhite LEDs, while on part number 50709 we installed yellow LEDs. This will give you the choice to match the lighting strips with your existing cars. As usual for all ESU lighting strips, you can adjust the brightness according to your wishes with the help of a small variable resistor (potentiometer). Thanks to built-in voltage control the brightness remains almost constant even when conventional driving. To bridge prolonged power interruptions, you may add a PowerPack. Of course, the lighting strips can be arbitrarily cut to fit the cars of all manufacturers and comes with a red taillight.
The integral ESU decoder supports, of course, both Motorola® and DCC and also works on DC analogue layouts. The operating mode is detected automatically. In addition to the basic maximum brightness adjusted with the control knob on the lighting strip, brightness may be further adjusted by means of the software. Various prototypical lighting effects such as soft dimming, fluorescent lamp effect, faulty fluorescent lamp, battery powered lighting and many others provide realistic results. The 11 LEDs are wired in several groups, which can be switched separately. Function mapping allows to assign the LEDs to the function button of your choice. Two additional outputs may be used for the red end-of-train lights or for directional lighting in a cab control car.
Of course, all effects can also be programmed once the lighting strip has been installed. Alternatively you may read out the values of your digital interior lights on the programming track.
|Availability||Shows to be in stock|
|UPC or EAN (GTIN)||4044645507094|
Instruction Manual Download
You can download the Instruction Manual for ESU 50709 as a .pdf file here:
ESU 50709 Instruction Manual
