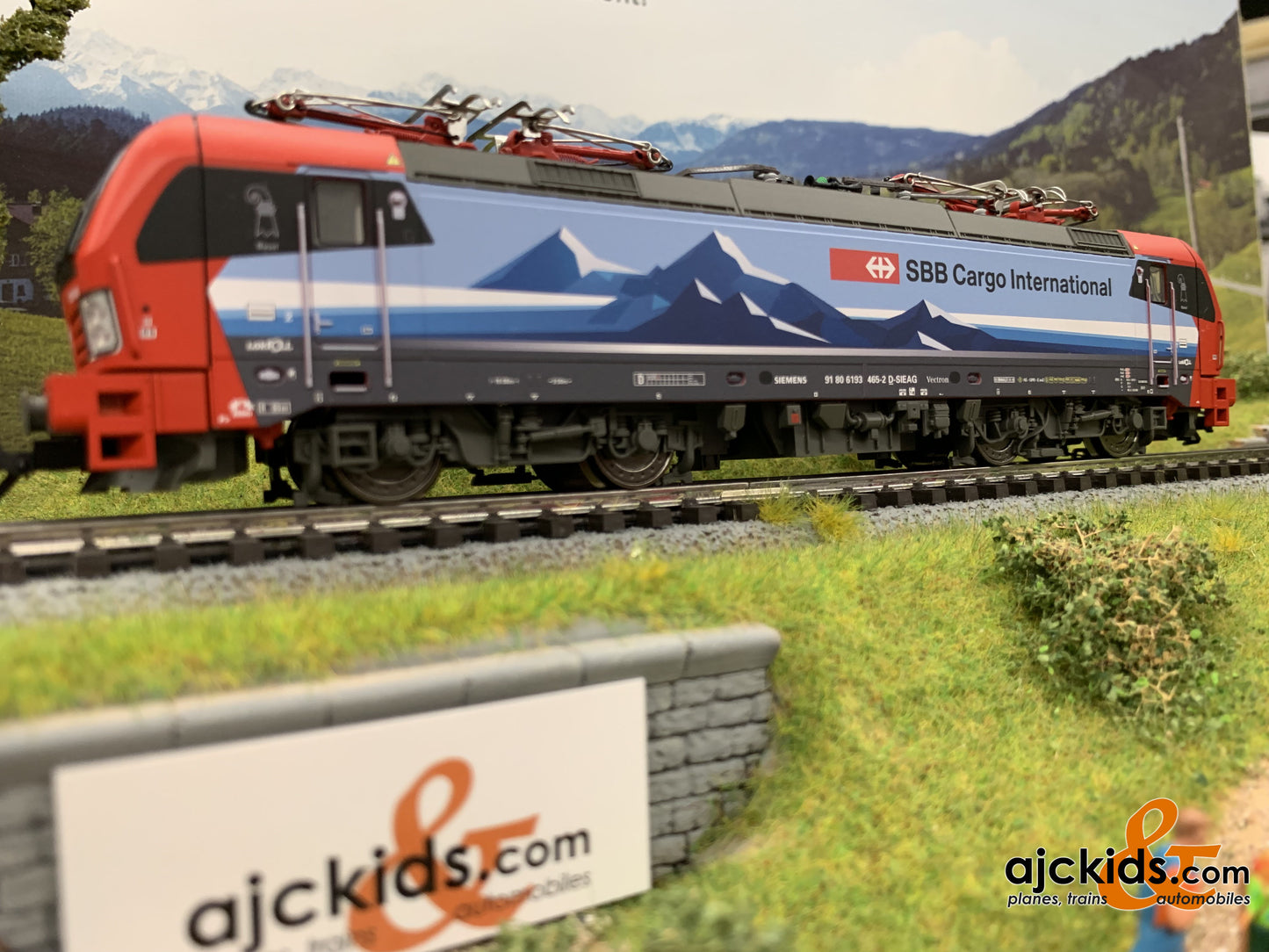

Marklin 36195 - Class 193 Electric Locomotive

Name: Marklin 36195 - Class 193 Electric Locomotive
Brand: Marklin
SKU: Marklin-36195
Availability: OutOfStock

No longer Available

Sold Out

Scale: H0-Scale, 3-Rail AC (for Marklin)

UPC or EAN: 4001883361956

System: AC 3-Rail for Marklin

Description
More Information
Instructions
Reviews and Q&A

Product Description

Model: This electric locomotive is constructed of metal and includes an mfx/DCC digital decoder and extensive sound functions. It also has a special motor; centrally mounted. 4 axles powered by means of cardan shafts. Traction tires. Triple headlights and dual red marker lights change over with the direction of travel; will work in conventional operation; and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. When the headlights at both ends are turned off; then the Double 'A' Light function is on at both ends. Warm white and red LEDs are used for the lighting. There are 4 mechanically working pantographs (no power pickup from catenary).

Length over the buffers 21.8 cm / 8-9/16".

Prototype: Class 193 Vectron electric locomotive; leased to SBB Cargo International. Multiple system locomotive with 4 pantographs. Road number 193 465-2. The locomotive looks as it did in 2018.

This model can be found in a DC version in the Trix H0 assortment under item number 22296.

mfx/DCC decoder and a variety of sound and light functions included.
Digital full sound model with an excellent price-benefit relationship.

Features

) Metal frame and locomotive body.

e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.

§ DCC decoder

h Built-in sound effects circuit.

N Triple headlights and two red marker lights that change over with the direction of travel.

T Märklin close couplers in standard pocket with pivot point.

8 Era 6

Warning

ATTENTION: adults only

	Control Unit	Mobile Station	Mobile Station 2	Central Station 1/2	Central Station 3/2
Headlight(s)	X	X	X	X	X
Buffer to buffer	X	X	X	X	X
Electric locomotive op. sounds	X	X	X	X	X
Low Pitch Horn	X	X	X	X	X
Direct control	X	X	X	X	X
Sound of squealing brakes off		X	X	X	X
Headlight(s): Cab2 End		X	X	X	X
High Pitch Horn		X	X	X	X
Headlight(s): Cab1 End		X	X	X	X
Sound of Couplers Engaging			X	X	X
Operating sounds			X	X	X
Blower motors			X	X	X
Conductor's Whistle			X	X	X
Compressor			X	X	X
Letting off Air			X	X	X
Whistle for switching maneuver			X	X	X

Marklin 36195 Instructions: You can download the Instruction Manual for Marklin 36195 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer	Marklin
Item	36195
Scale	H0-Scale (1:87)
Availability	This item is currently out of stock. The arrival estimate has not yet been updated.
Country	Switzerland
Era	VI
Railroad	SBB - Swiss Federal Railways
System	3-Rail AC (for Marklin)
UPC or EAN (GTIN)	4001883361956
