Marklin 37327 - Class Re 620 Electric Locomotive

Skip to product information
1 of 12

$429.00
Regular price $42900
Regular price Sale price $42900
Sale Sold out
Shipping calculated at checkout.

Sold out, discontinued at Marklin

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883373270

System: 3-Rail AC (Märklin).

View full details



Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. 4 axles powered (both axles in each of the outer trucks) by means of cardan shafts. Traction tires. The triple headlights and 1 white marker light (Swiss headlight / marker light code) change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends, the double "A" lights are on at both ends. The lighting can be switched to 2 red marker lights. Long-distance headlights, cab lighting, and engine room lighting can be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has separately applied metal entry grab irons. The couplers can be replaced by detailed end skirting.

The minimum radius for operation is 360 mm / 14-3/16".

Length over the buffers 22.2 cm / 8-3/4".

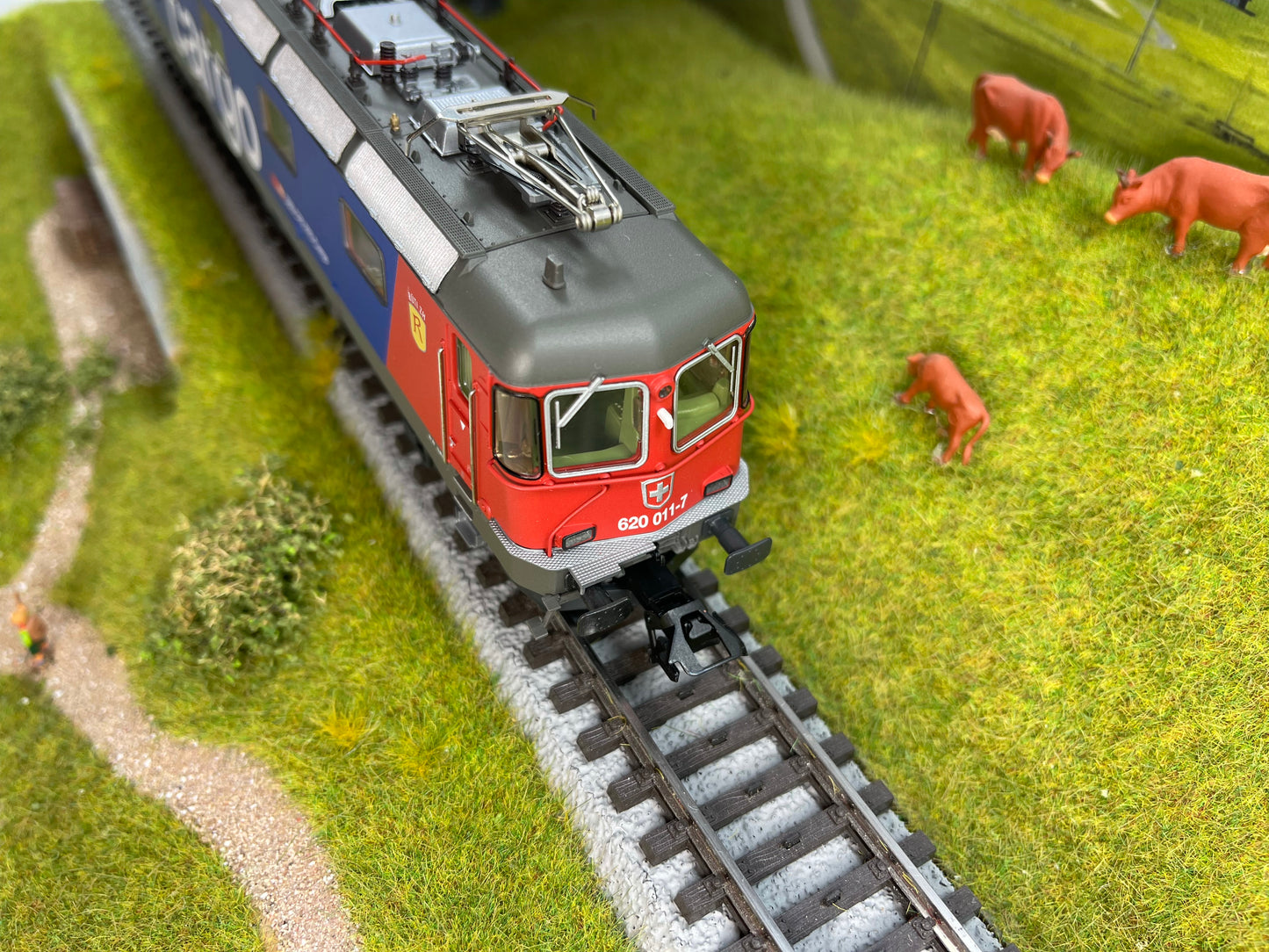

Prototype: Swiss Federal Railways (SBB) class Re 6/6 as the class Re 620 heavy electric locomotive, used for the SBB Cargo freight service area. Version in a "Fire Red" / ultramarine blue basic paint scheme. Rectangular headlights, UIC plugs, diagonal grab irons on the ends, a maintenance hatch on one side for air conditioning. Locomotive road number 620 011-7, with the locomotive coat-of-arms for "Rüti ZH". The locomotive looks as it did around 2019.

Prototype information

It was and still is something special – the Swiss Federal Railways (SBB) Re 6/6. For a long time it was viewed as the most powerful electric locomotive in the world and still has this rating in Switzerland. Naturally, such a high performance as 8,020 kilowatts / 10,755 horsepower could only be applied to six axles, hence the rather unusual wheel arrangement of B-B-B for central European circumstances in order to combine the resultant tractive effort with good running characteristics on curves. The center truck had to have appropriate side play and the three trucks are connected to one another by means of elastic cross couplings.

Based on these specifications, the SBB ordered four different prototypes in 1969 from SLM (mechanical parts) and from BBC (electrical parts). These four units were placed into service by the fall of 1972 and were then exhaustively tested. After a final version began to emerge, the SBB ordered 45 production units of the Re 6/6 from SLM/BBC as early as February 23, 1973.

Delivery of them began in 1975, was carried out within two years, and was completed by 1977. Delivery of the second series of 40 Re 6/6 locomotives (road numbers 11650 - 11689) took place immediately thereafter from the end of 1977 to the end of 1980. From then on heavy EC, IC, and express trains as well as the heaviest freight trains with up to 1,600 metric tons were the domain of the Re 6/6 locomotives on the Gotthard and Simplon lines. This did not change until the turn of the century when all of the Re 6/6 units were assigned by 2003 to the new freight service group SBB Cargo.

It is still impressive today, when an Re 6/6 fights its way up the ramps of the Gotthard with a long freight train. Even more impressive is the so-called "Re 10/10", the double-heading of an Re 4/4II and an Re 6/6, which has become an everyday sight at least on the Gotthard line. The productivity of this combination is only limited by the maximum load on the couplers of 1,400 metric tons on a 2.6% grade. Otherwise, the two locomotives could haul another several hundred tons over the mountain. Many locomotive engineers swear by the ten powered axles and the decent weight. They always prefer it to the nominally similar output of B-B m.u. combinations of the newest design.


This model can be found at Ajckids in a DC version in the Trix H0 assortment under item number 22883.

First time to include a central motor and 4 axles in the outer trucks powered by means of cardan shafts.

Frame and body constructed of heavy metal.

World of Operation mfx+ digital decoder and a variety of light and sound functions included. Long-distance headlights, cab lighting, and engine room lighting can be controlled in digital operation.

Features

) Metal frame and locomotive body.
# mfx+ digital decoder
§ DCC decoder
h Built-in sound effects circuit.
P Triple headlights and a white marker light that change over with the direction of travel.
N Triple headlights and two red marker lights that change over with the direction of travel.
T Märklin close couplers in standard pocket with pivot point.
8 Era 6
Y

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Light Function1 X X X X X
Electric locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Long distance headlights X X X X X
Engineer’s cab lighting X X X X
Headlight(s): Cab2 End X X X X
Engineer’s cab lighting X X X X
Headlight(s): Cab1 End X X X X
Direct control X X X
Sound of squealing brakes off X X X
Light Function 2 X X X
Whistle for switching maneuver X X X
Pantograph Sounds X X X
Blower motors X X X
Compressor X
Letting off Air X
Main Relay X
Stat. Announce. - Swiss X
Conductor's Whistle X
Sanding X
Replenishing fuel X
Sound of Couplers Engaging X
Switching maneuver X

EAN/UPC: 4001883373270
