Marklin 37493 - Electric Locomotive GG-1 Pennsylvania

Skip to product information
1 of 1

$0.00
Regular price Sale price $000
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883374932

System: 3-Rail AC (Märklin).

View full details

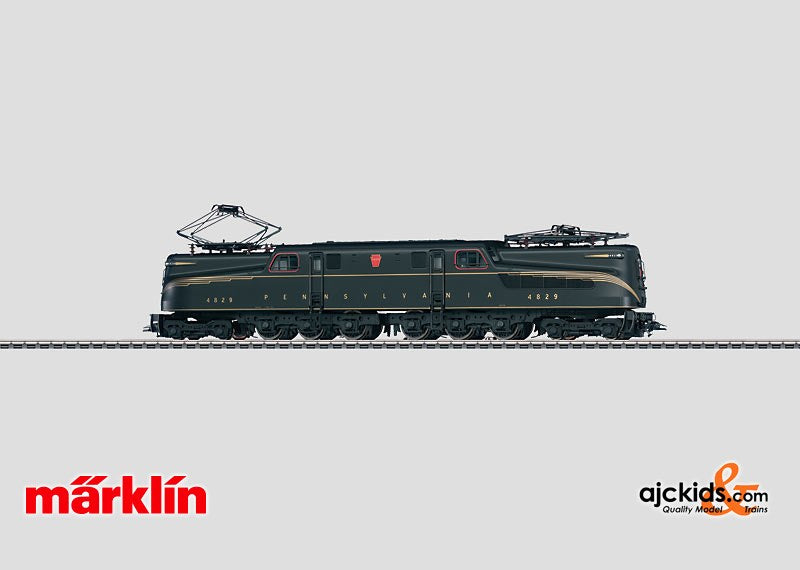

Electric Locomotive GG-1 Pennsylvania in Brunswick Green.

Prototype: Class GG-1 heavy general-purpose locomotive. 4-6-6-4 wheel arrangement. Built by General Electric and Westinghouse.

Model: The locomotive comes with a digital decoder, controlled high-efficiency propulsion, and a sound effects generator with many functions. It has a centrally mounted powerful can motor with a bell-shaped armature. 4 axles powered in each power truck. 4 traction tires. The locomotive has 2 power trucks and 2 pilot trucks and can negotiate sharp curves. The headlights and cab lighting are maintenance-free LED's. The headlights and the cab lighting will work in conventional operation and can be controlled digitally. The long-distance headlights, the cab lighting, and the sound effects of the blower motors, as well as the direct control (acceleration/ braking delay) can be controlled with a Mobile Station or Central Station, or the Ecos that ajckids.com sells. The Central Station can be used to activate the sounds of the relay system at work, cab radio "chatter", the sounds of couplers engaging, and the "clickety-clack" sound of the train running on jointed rail as well as turn off the sound of squealing brakes. Large American design pantographs.

Length over the couplers 28.0 cm / 11".

Highlights:

  • Locomotive constructed of metal.
  • Model in an attractive metallic paint scheme for collectors.
  • Controlled high-efficiency propulsion.
  • Powerful can motor with a bell-shaped armature.
  • mfx decoder with many operating and sound effects functions.
  • Great sound: running gear sounds, blower motors, horn, relay system, squealing brakes, etc.


The sounds of pantographs being raised and lowered, the sounds of the relay system at work, cab radio "chatter", the sounds of couplers engaging, and the "clickety-clack"sound of the train running on jointed rail can be controlled with the Central Station as operating and surrounding sounds specific to the model.


Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Long distance headlights X X X X X
Electric locomotive op. sounds X X X X X
Horn X X X X X
Direct control X X X X X
Engineer’s cab lighting X X X X
Blower motors X X X X
Bell X X X X
Cab Radio X X X X
Sound of squealing brakes off X X X
Sound of Couplers Engaging X X X
Rail Joints X X X





Loewy's Crocodile. In the 30"s in the middle of the deepest depression, the Pennsylvania Railroad PRR ventured to electrify their main routes in the eastern United States. This immense project included the repair and reinforcement of railway track, construction of new tunnels with greater clearance, as well as the integration of commuter lines. The first stretch extended from Washington via Baltimore, Wilmington, and Philadelphia to Penn Station in New York (including the commuter lines under the Hudson River). All that was missing was the suitable locomotive; up to that point the PRR"s long distance passenger trains were steam-powered. A multi-year test phase was begun. At the end of the tests a prototype built by General Electric and Baldwin in 1934 with a 4-6-6-4 wheel arrangement was declared the winner. The GG-1's data was impressive: 6 twin motors (a pair for each axle) put out a total of 3,445 kilowatts / 4620 horsepower with peaks even exceeding 5,965 kilowatts / 8000 horsepower. The pilot truck wheel diameter was 1.45 meters / 57 inches, the total weight 208 tons / 460,000 pounds, the length 23 meters / 79 feet 6 inches. The GG-1 reached speeds of 145 km/h /90 mph. The year before a designer, originally from France, applied for employment at the PRR. Most likely to get rid of him he was assigned to design the trash containers in Penn Station New York. The result was so impressive that he was invited to make a few suggestions for the design of the GG-1. Raymond Loewy pursued the task with thorough precision. Instead of the coarse, riveted superstructure assemblies of the prototype, he came up with a smooth-surface design. He provided an elegant, dynamic package for the mighty power of this machine. The superstructure assemblies gave the effect of being cast as single unit. They are harmoniously rounded and flow into each other without interruption. Five, sharply converging gold stripes on a dark green scheme underline the elegance. On the February 10, 1935, the PRR placed the electrified stretch between Washington and New York in operation. Thanks to its power reserves, the GG-1 shortened travel times and compressed the timetable. Consequently, the PRR also electrified its routes to the west. In total the PRR had 4,300 km / 2,677 miles under wire; this was more than 40 percent of the total electrified network of the USA. The PRR ran 3,500 passenger trains daily on its network. The 137 GG-1 locomotives pulled more than 900 trains a day, including the prestigious express trains between New York and Washington. After being regeared, the GG-1 had a second career pulling freight trains which it usually did in m.u. operation.




A wider wiper for the pantograph may be necessary for operation under catenary mounted in a zigzag pattern or bent to follow a curve. A suitable wiper is available as a spare part: item no. 231802.




EAN/UPC: 4001883374932
