Marklin 37684 - Electric Locomotive 1018.0

Marklin 37684 - Electric Locomotive 1018.0


No longer Available

  • Sold Out

Scale: H0-Scale, 3-Rail AC (for Marklin)

UPC or EAN: 4001883376844

System: AC 3-Rail for Marklin

Product Description

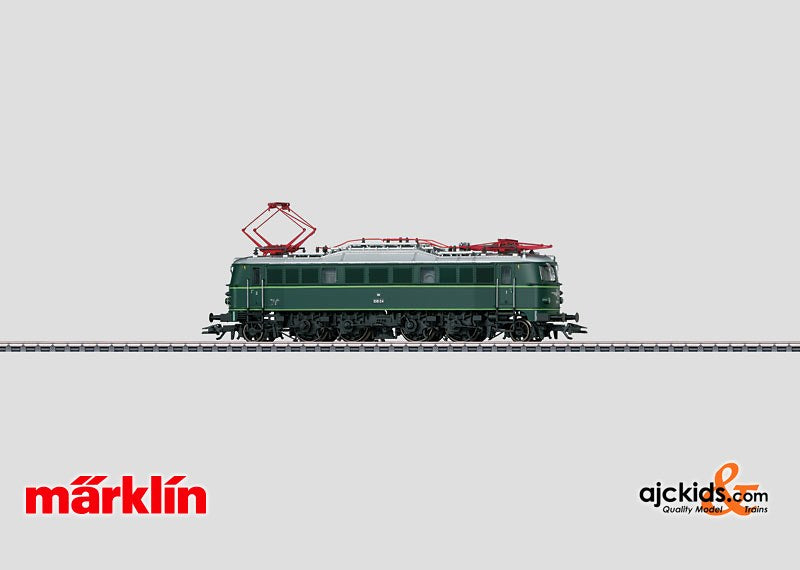

 Prototype: Austrian Federal Railways (ÖBB) class 1018.0 electric locomotive in a pine green basic paint scheme. Rebuilt version corresponding to the ÖBB standardization of this class starting in 1966. Road number 1018.04. The locomotive looks as it did about the start of the Seventies.

Model: The locomotive has an mfx digital decoder and a locomotive whistle sound that can be controlled. It also has controlled high-efficiency propulsion. 2 axles powered. Traction tires. The triple headlights and 1 red marker light change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights are the so-called "Stielaugen" / "Telescope Eyes". The headlights at locomotive ends 2 and 1 can be turned off separately in digital operation. When the headlights are turned off at both ends, the double "A" lights are on. Maintenance-free warm white and red LEDs are used for the lighting. The engineer's cabs and engine room have interior details. The body has numerous separately applied details. The locomotive has prototypical double-arm pantographs. It also has a finely detailed frame with prototypical reproduction of the quill drive wheels. The buffers are made of metal and are separately applied in convex and flat versions. Length over the buffers 19.5 cm / 7-11/16".



Highlights:

  • ÖBB rebuilt version with so-called "Stielaugen" / "Telescope Eyes" headlights.
  • Highly detailed metal body.
  • mfx decoder with locomotive whistle sound.
  • Warm white and red LEDs are used for the lighting.

One-time series.

Features

) Metal frame and locomotive body.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system. One controllable auxiliary function (function), when the locomotive is being run in the Digital system.
e Digital decoder with up to 32 digitally controlled functions. The quantity depends on the controller being used.
h Built-in sound effects circuit.
O Triple headlights and a red marker light that change over with the direction of travel.
i Power supply can be switched to operated from catenary.
T Märklin close couplers in standard pocket with pivot point.
4 Era 4

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Headlight(s): Cab2 End X X X X
Headlight(s): Cab1 End X X X X
Marklin 37684 Instructions: You can download the Instruction Manual for Marklin 37684 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37684
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Austria
Era IV
Railroad ÖBB - Austrian Railways
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883376844

Instruction Manual Download


You can download the Instruction Manual for Marklin 37684 as a .pdf file here:

 Marklin 37684 Instruction Manual
