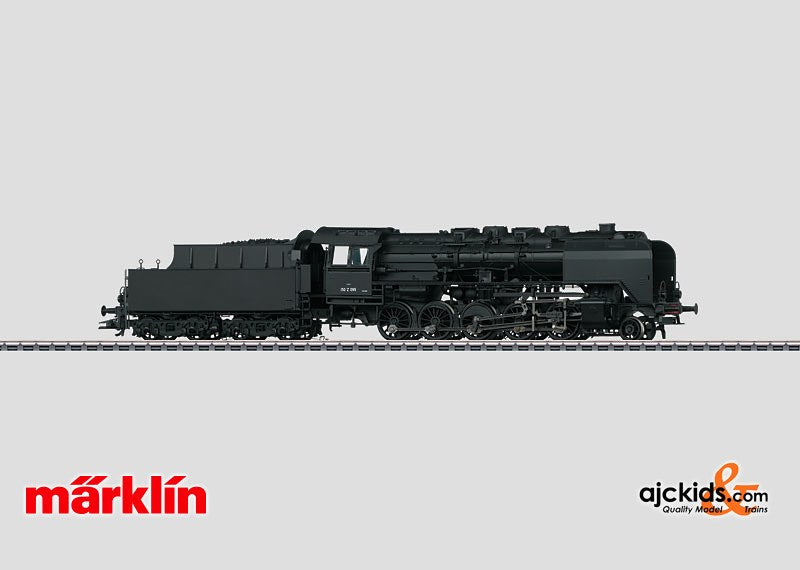

Marklin 37813 - Freight Steam Locomotive with a Tender series 150 Z

Marklin 37813 - Freight Steam Locomotive with a Tender series 150 Z


  • $434.55
    Unit price per
Shipping calculated at checkout.

  Shows to be in stock at Ajckids

Only 1 left!
Add to Wishlist

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Gauge: H0 Era: III

Prototype: French State Railways (SNCF) class 150 Z (former class 50) freight train steam locomotive, with a coal tender as standard design type 2´2´T26 box-style tender in its original design. With Wagner smoke deflectors, standard engineer's cab, long walkway that is angled at the front to the smoke box, DRG lanterns, and without an inductive magnet. Road number 150 Z 095. The locomotive looks as it did around at the end of the Forties / beginning of the Fifties.

Model: The locomotive has an mfx digital decoder and extensive sound functions. It has controlled high efficiency propulsion with a bell-shaped armature and a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the tender are constructed mostly of metal. A 7226 smoke generator can be installed in the locomotive. The dual headlights change over with the direction of travel. They and the smoke generator contact will work in conventional operation and can be controlled digitally. The headlights are maintenance-free, warm white LEDs. There is a close coupling with a guide mechanism between the locomotive and tender and it can be adjusted for curves. The front of the locomotive and the back of the tender has a close coupler in an NEM pocket with a guide mechanism. Minimum radius for operation is 360 mm / 14-3/16". Piston rod protectors and brake hoses are included.

Length over the buffers 26.4 cm / 10-3/8".

  Control
Unit
Sx Mobile
Station
DCC Mobile
Station 2
Central
Station
Headlight(s) ·   ·   · ·
Smoke generator contact ·   ·   · ·
Steam locomotive op. sounds ·   ·   · ·
Locomotive whistle ·   ·   · ·
Direct control ·   ·   · ·
Sound of squealing brakes off     ·   · ·
Air Pump     ·   · ·
Whistle for switching maneuver     ·   · ·
Letting off Steam     ·   · ·
Bell         · ·
Sound of coal being shoveled         · ·
Grate Shaken         · ·
Injectors         · ·

Highlights:

  • Completely new tooling.
  • Especially finely detailed metal construction.
  • Partially open bar frame and many separately applied details.
  • High-efficiency propulsion with a bell-shaped armature, mounted in the boiler.
  • A variety of operating and sound functions that can be controlled digitally.


One-time series.

Charlie's Tip: This model can be found in a DC version in the Trix H0 assortment under item no. Trix 22783.


src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/B_34.gif src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/D_33.gif src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/D_35.gif src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/D_8.gif src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/E_08.gif src=http://www.maerklin.com/site-templates/maerklin-relaunch/img/pictos/1/G_15.gif




Released in: New items brochure 2012

Marklin 37813 Instructions: You can download the Instruction Manual for Marklin 37813 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37813
Scale H0-Scale (1:87)
Availability   Shows to be in stock
Country France
Era III
Railroad SNCF - National French Railways
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883378138

Instruction Manual Download


You can download the Instruction Manual for Marklin 37813 as a .pdf file here:

 Marklin 37813 Instruction Manual
