Marklin 39008 - Steam Express Locomotive with a Tender MFX+

  • Marklin 39008 - Steam Express Locomotive with a Tender MFX+
1 1

$000
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883390086

System: 3-Rail AC (Märklin).

Instruction Manual

View full details

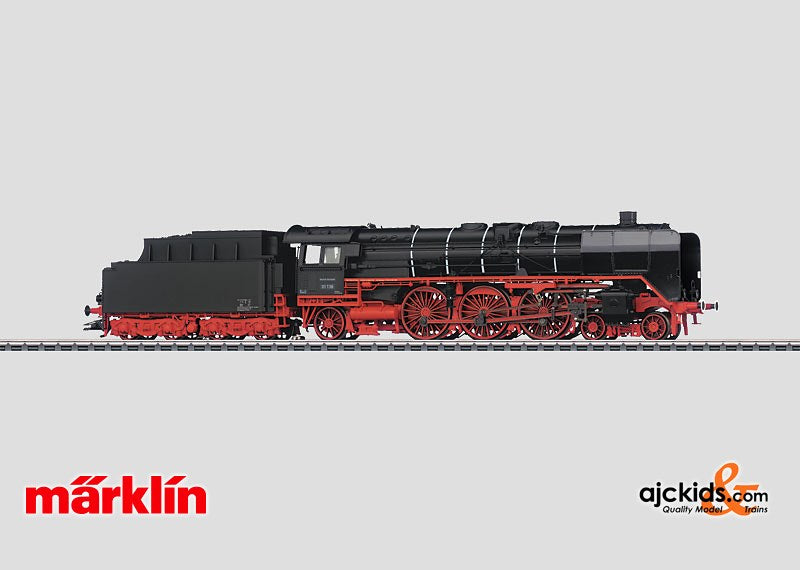

Prototype: German Federal Railroad (DB) class 01 steam express locomotive with a type 2´2´T34 coal tender. Large Wagner smoke deflectors, silver boiler bands, and buffer plate warning stripes. Road number 01 138. The locomotive looks as it did around 1950.

Highlights

  • Equipped with the new mfx+ digital decoder.
  • Operation possible in beginner, advanced, and specialist modes.
  • Simulated operating supplies usage, visible on the controllers but also in reality from the coal pile that can be lowered in the tender.
  • Realistic running characteristics such as constant speed.
  • Simulated engineer's cab in the Central Station 2 display.
  • Control of the model in the cab mode by means of the touchscreen on the Central Station 2.
  • These new functions are only available in conjunction with the Central Station 2 starting with firmware Version 3.0.

Product description

Model: The locomotive has the new mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The 7226 smoke unit comes installed in the locomotive. The dual headlights change over with the direction of travel. They and the smoke unit will work in conventional operation and can be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. There is an adjustable close coupling with a guide mechanism between the locomotive and tender for different curves. There is a close coupler with an NEM pocket and guide mechanism on rear of the tender. There is a mechanism in the tender to lower the coal load so that in the operations mode the coal usage can be represented visually in the tender. The raising and lowering of the coal load can be activated with auxiliary function F8 for digital controllers not equipped for mfx+. Protective sleeves for the piston rods, brake hoses, and figures of the engineer and fireman are included as detail parts.

Minimum radius for operation is 360 mm / 14-3/16".

Length over the buffers 27.5 cm / 10-13/16".

One-time series.

Publications

- New items brochure 2014 - Product programme 2014/2015

Features

!Märklin exclusive special model - produced in a one-time series.
(Metal frame and mostly locomotive body.
cDigital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system. One controllable auxiliary function (function), when the locomotive is being run in the Digital system.
#mfx+ digital decoder
hBuilt-in sound effects circuit.
EDual headlights that change over with the direction of tavel.
UMärklin close couplers in standard pocket with guide mechanism.
3Era 3

Warning

 ATTENTION: adults only
CONTROL UNIT MOBILE STATION MOBILE STATION 2 CENTRAL STATION 1/2 CENTRAL STATION 3/2
Headlight(s) X X X X X
Smoke generator X X X X X
Steam locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Flickering Light in Fire Box X X X X
Whistle for switching maneuver X X X X
Special Function X X X X
Letting off Steam X X X
Grate Shaken X X X
Air Pump X X X
Surrounding sounds X X X
Conductor's Whistle X X X
"Switcher Double ""A"" Light" X X X

EAN/UPC: 4001883390086
