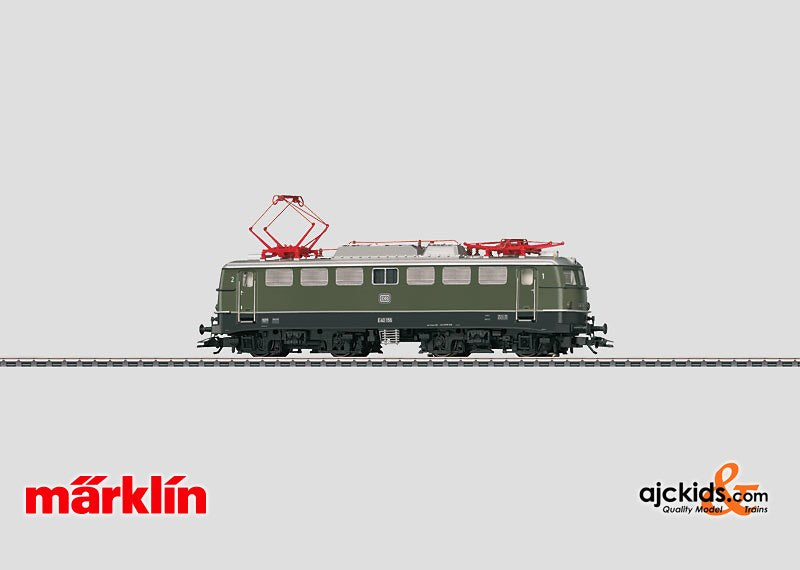

Marklin 39140 - Electric Locomotive E 40

Marklin 39140 - Electric Locomotive E 40


No longer Available

  • Sold Out

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: German Federal Railroad (DB) class E 40. Freight locomotive in a chrome oxide green basic paint scheme. With a continuous rain gutter, Schweiger vents with vertical fins and 3 headlights. The locomotive looks as it did around 1965.
Model: The locomotive has an mfx digital decoder and comes from the factory with sound functions that can be turned on and off. It also has Softdrive Sine high-efficiency propulsion and a compact design, maintenance-free motor, centrally mounted. 4 axles powered through cardan shafts. Traction tires. The triple headlights (maintenance-free, warm white LEDs) and dual red marker lights (maintenance-free red LEDs) will work in conventional operation, and can be controlled digitally. The upper headlight is the rebuilt design with a small lamp diameter. The locomotive has separately applied metal grab irons. The engineer's cabs have interior details including a separately applied speed control wheel. The locomotive has separately applied roof walks. Length over the buffers 18.9 cm / 7-7/16".


Highlights:
  • Completely new tooling for the class E 10 / E 40.
  • Metal construction.
  • High efficiency, compact design Softdrive Sine propulsion.
  • mfx decoder and a sound generator included.

Prototype information

The E 40 – Backbone of Freight Service. The class E 40/140 also came from the new procurement program of the Fifties. From a technical point of view the class E 40 is a class E 10.1 modified for freight service. It had the same locomotive body, almost the same mechanical and electrical systems, but it differed in several features from its faster siblings. The class E 40 had no electric brakes, a different gear ratio, which meant a lower top speed, and a different roof with fewer ventilation grills. The classic chrome oxide green was chosen for the paint scheme; the elegant blue was kept only for express locomotives.

The class E 40, from 1968 on designated as the class 140, was designed for medium heavy freight service, but it wandered into other types of service, particularly when the top speed was raised from 100 km/h / 63 mph to 110 km/h / 69 mph. It could be seen pulling "Silberlinge" commuter cars and during the 1972 Olympic Games in Munich in S-Bahn service too. The main area of use remained and still is freight service. Like all other locomotives, the class E 40/140 underwent modernization programs, which changed the appearance of the locomotives markedly in addition to different paint schemes.

Thirty one of the class E 40 locomotives were specially equipped with direct current resistance brakes for use on steep grades such as the Höllentalbahn or Valley of Hell Railroad. They were designated as the class E 40.11 and later starting in 1968 as the class 139. Later, the remaining class 139 locomotives were assembled together in Munich, where they were used along with the class 140 locomotives in service up to the Brenner Pass. The class E 40/140, with its sub-variations, was the locomotive type built in the largest quantities in the standard design program of the new German Federal Railroad. A total of 879 units were mainly responsible for medium heavy freight service over a period of decades. Except for a few locomotives, they are in the process of being retired or are already completely retired.

Features

) Metal frame and locomotive body.
X Locomotives with controlled, adjustable C-Sine propulsion. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system (Motorola format).
e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
h Built-in sound effects circuit.
N Triple headlights and two red marker lights that change over with the direction of travel.
i Power supply can be switched to operated from catenary.
T Märklin close couplers in standard pocket with pivot point.
3 Era 3

Warning

ATTENTION: not for children under 3 years
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Blower motors X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Headlight(s): Cab2 End X X X X
Headlight(s): Cab1 End X X X X
Marklin 39140 Instructions: You can download the Instruction Manual for Marklin 39140 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 39140
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Era III
Railroad DB - German Bahn
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883391403

Instruction Manual Download


You can download the Instruction Manual for Marklin 39140 as a .pdf file here:

 Marklin 39140 Instruction Manual
