Marklin 39244 - EST Class 13 Express Train Steam Locomotive

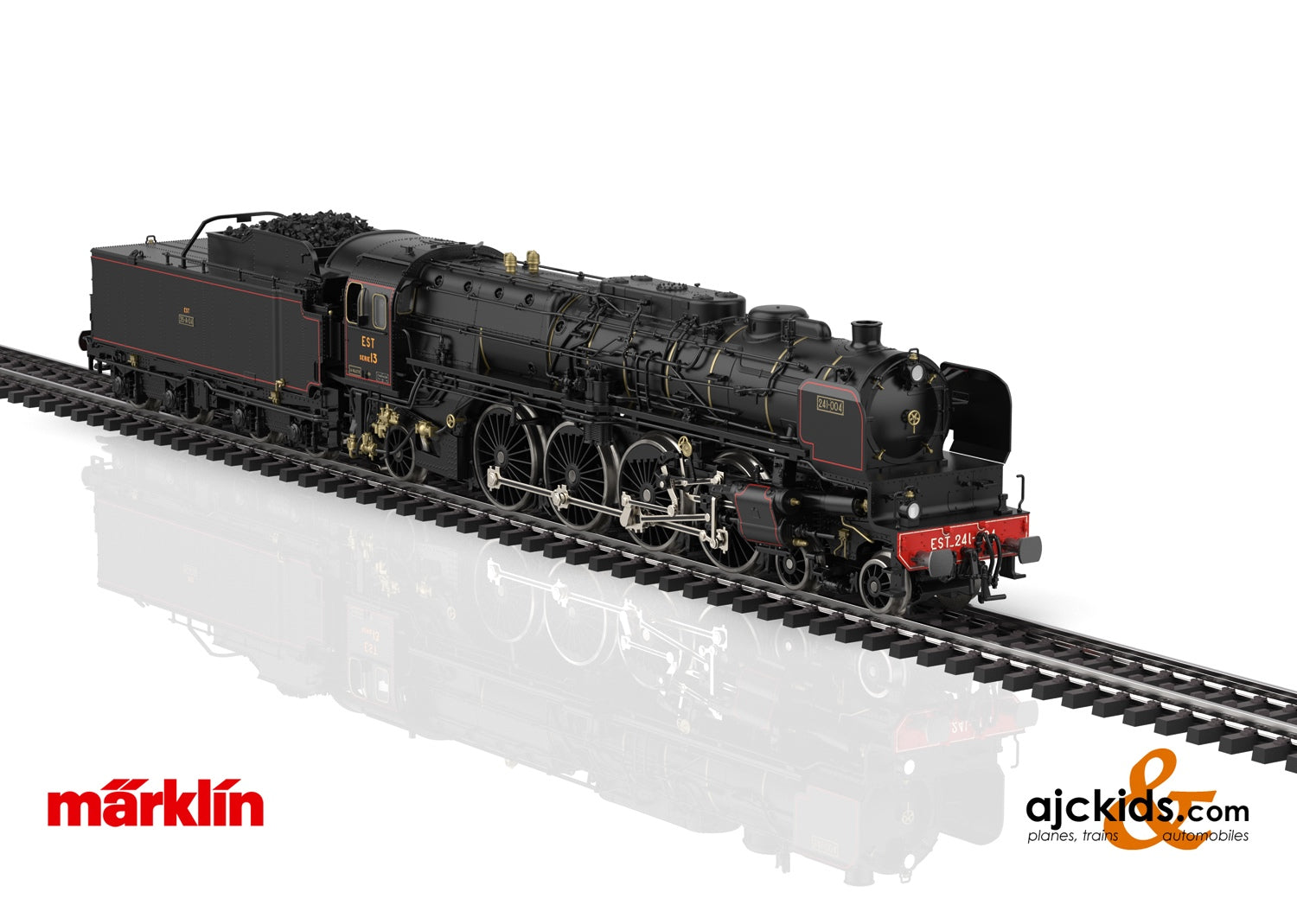

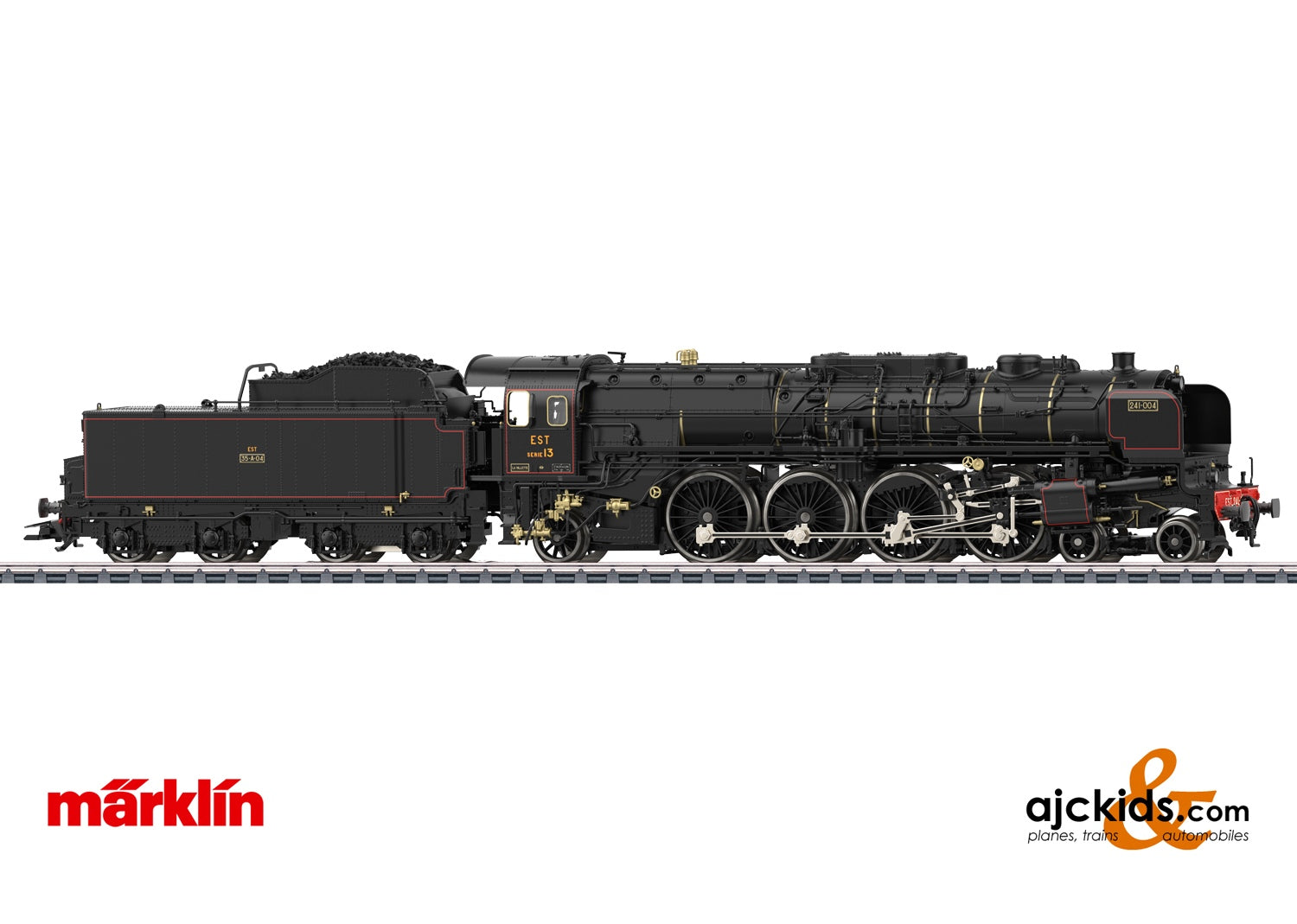

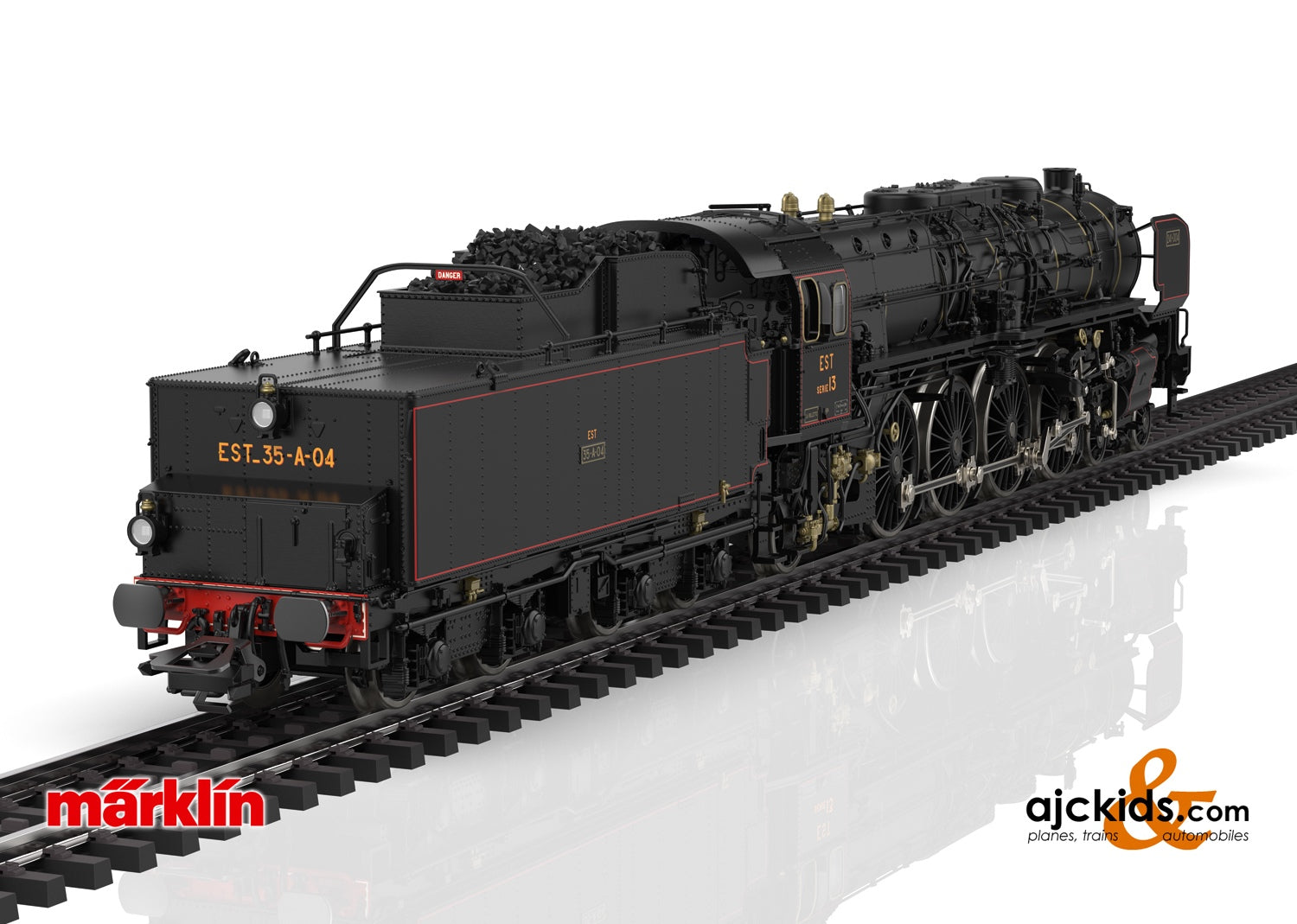

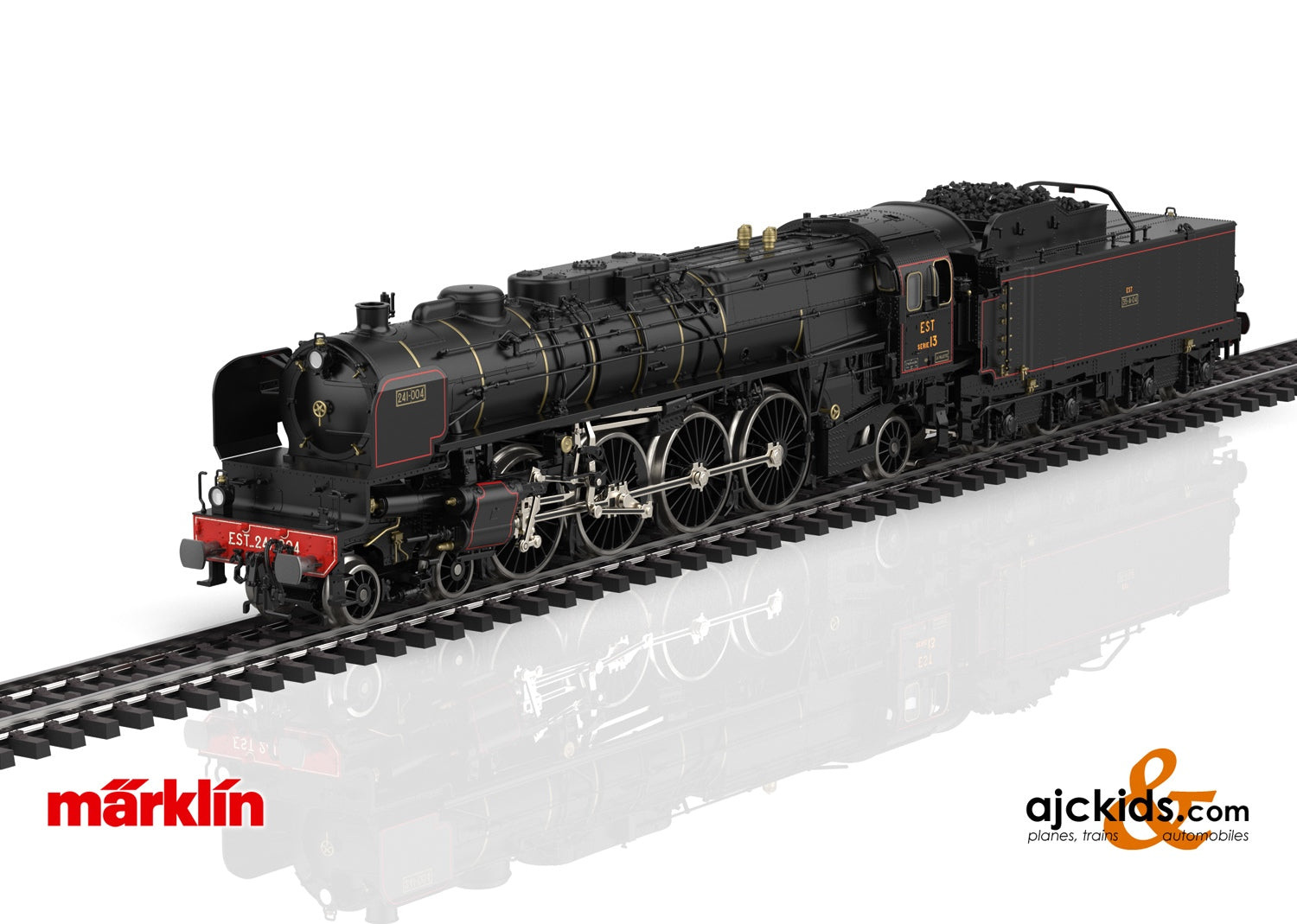

Prototype: French East Railroad (EST) class 13 (241-A) heavy express train steam locomotive with a tender. Black basic paint scheme with a black frame. Version as a locomotive for the "EDELWEISS" express train passenger car set. Changes to the smoke deflectors specific to the type. Dual headlights with kerosene lamps, with one lamp above and one lamp below. Road number EST 241 004. The locomotive looks as it did around 1931.

Highlights

• Tooling changes for the version as the French East Railroad (EST) class 13.
• Very detailed realization of the model.
• Cab lighting can be controlled digitally.
• Equipped with a factory-installed smoke unit.
• World of Operation mfx+ decoder and extensive light and sound functions included.

Product description

Model: The locomotive has an mfx+ digital decoder and extensive light and sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 4 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The model has a factory-installed 72270 smoke unit. The dual headlights on the locomotive and tender change over with the direction of travel. They and the built-in smoke unit will work in conventional operation and can be controlled digitally. There is also cab lighting that can be controlled digitally. Maintenance-free warm white LEDs are used for lighting. There is an adjustable coupling with a guide mechanism between the locomotive and tender. The rear of the tender has a close coupler in an NEM pocket with a guide mechanism.

The minimum radius for operation is 437.5 mm / 17-1/4".

Brake hoses, heating lines, and imitation prototype couplers are included. There is also a frame without a wheel cutout for the trailing truck, which can be swapped with the factory-installed trailing truck for display case use for example.

Length over the buffers 30.4 cm / 12".

Chrlie's Tips

The "EDELWEISS" express train passenger car set, with passenger cars as new tooling, to go with this locomotive can be found at Ajckids in the Märklin H0 assortment under item number 42470.

This model can be found in a DC version in the Trix H0 assortment under item number Trix 25241.

Publications

Prototype information

EST Class 13 (241 A) Steam Locomotive At the start of the Twenties, the French East Railroad (EST) urgently needed a motive power unit to haul its heavy express trains on the line Paris – Belfort – Basle. The new locomotive was planned to haul a 700-ton train at a constant speed of 115 km/h / 72 mph on level track with a maximum speed of 120 km/h / 75 mph, which required a continuous performance of 2,720 horsepower. Even more ambitious was the requirement to pull 800 tons at 80 km/h / 50 mph on a 0.5% grade. Around 3,540 horsepower was necessary for this – an exorbitant level of performance for steam locomotives!

A prototype delivered on January 17, 1926 by Fives-Lille with number 41.001 was the first time the "Mountain" 4-8-2 wheel arrangement was presented in Europe. In line with French practice, it was designed as a four-cylinder compound locomotive using de Glehn/du Bousquet principles with separately adjustable Heusinger valve gear for the high and low pressure running gear. After extensive testing, another 89 units were built between 1930 and 1934. They differed in several details from the prototype. Forty units with road numbers 241 002-041 were delivered to the EST and 49 locomotives went to the ÉTAT. The prototype's road number was changed to 241 001.

The class 241 A locomotives had a type of boiler new in Europe that was based on an American design with a large combustion chamber as well as Nicholson design thermal syphons. The boiler was fed water by means of an exhaust steam injector and two live steam injectors. The inner cylinders (low-pressure cylinders) worked on the offset driving wheel set and the external cylinders (high-pressure cylinders) worked on the second driving wheel set. A slide valve allowed high-pressure steam to reach the low-pressure cylinders during a start up or when greater performance was required.

While the EST used their "Mountains" pulling heavy express trains on the routing Paris – Belfort – Mulhouse – Basle to bring vacationers bent on the mountains or starved for sun to Switzerland or to Italy, the ÉTAT ensured the connection to the ships landing at Cherbourg or Le Havre from the USA or Great Britain. Yet, the ÉTAT was not happy with their "Mountains", since the latter's' high weight and the large fixed wheelbase apparently caused a high degree of wear to the track. They therefore sold all 49 units to the EST.

After its founding in 1938, the SNCF took over all 90 locomotives, which after different temporary numbering schemes were given the road numbers 241 A 1-41 (EST locomotives in the original sequence) and 241 A 42-90 (former ÉTAT units in an altered sequence). The SNCF used these locomotives until their retirement in the years 1960 to 1965 mainly between Paris and Strasbourg as well as Paris and Basle. Two examples remain preserved: road number 241 A 1 at the Mulhouse Railroad Museum and road number 241 A 65 in operational condition in Switzerland.
