Scale: H0-Scale

EAN/UPC: 4001883392509

System: 3-Rail AC (Märklin).

View full details

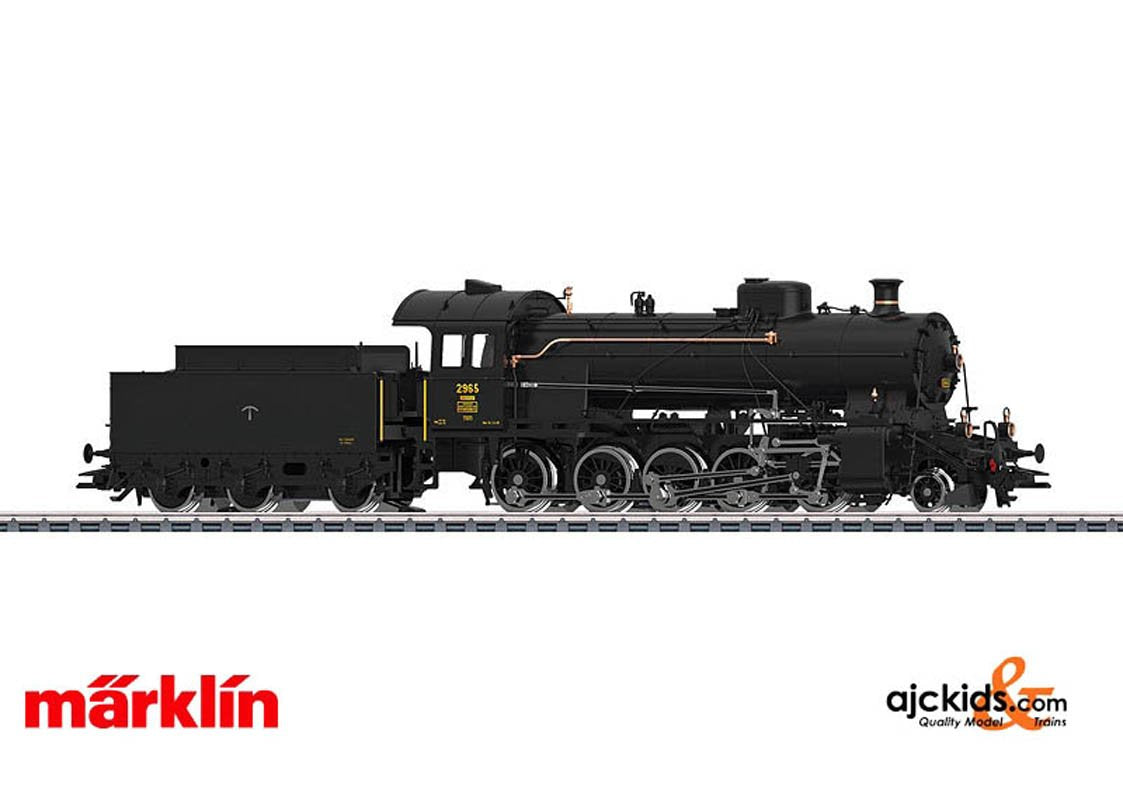

Prototype: Swiss Federal Railways (SBB) class C 5/6 "Elephant" Gotthard steam locomotive, with a 3-axle tender, for used in freight and express train service on the Gotthard line. Road number 2965, still currently on display in the Transportation Museum in Lucerne.

Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and tender are constructed chiefly of metal. The locomotive has a factory-installed 72270 smoke unit. The triple headlights and 2 lights on the tender change over with the direction of travel. They and the built-in smoke unit will work in conventional operation and can be controlled digitally. The cab lighting can also be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting. There is an adjustable coupling with a guide mechanism between the locomotive and tender. The front of the locomotive has an NEM pocket and a close coupler. The rear of the tender has an NEM pocket, a close coupler, and a guide mechanism.

The minimum radius for operation is 360 mm / 14-3/16". Piston rod protection sleeves and brake hoses are included. Length over the buffers 22.3 cm / 8-3/4".

Features

( Metal frame and mostly locomotive body.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system. One controllable auxiliary function (function), when the locomotive is being run in the Digital system.
# mfx+ digital decoder
h Built-in sound effects circuit.
I Triple headlights and two white marker lights that change over with the direction of travel.
U Märklin close couplers in standard pocket with guide mechanism.
> Era 3 - 6
Y

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Smoke generator X X X X X
Steam locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Engineer’s cab lighting X X X X
Whistle for switching maneuver X X X X
Letting off Steam X X X X
Sound of coal being shoveled X X X
Grate Shaken X X X
Air Pump X X X
Water Pump X X X
Injectors X X X
Switching maneuver X X X

EAN/UPC: 4001883392509
