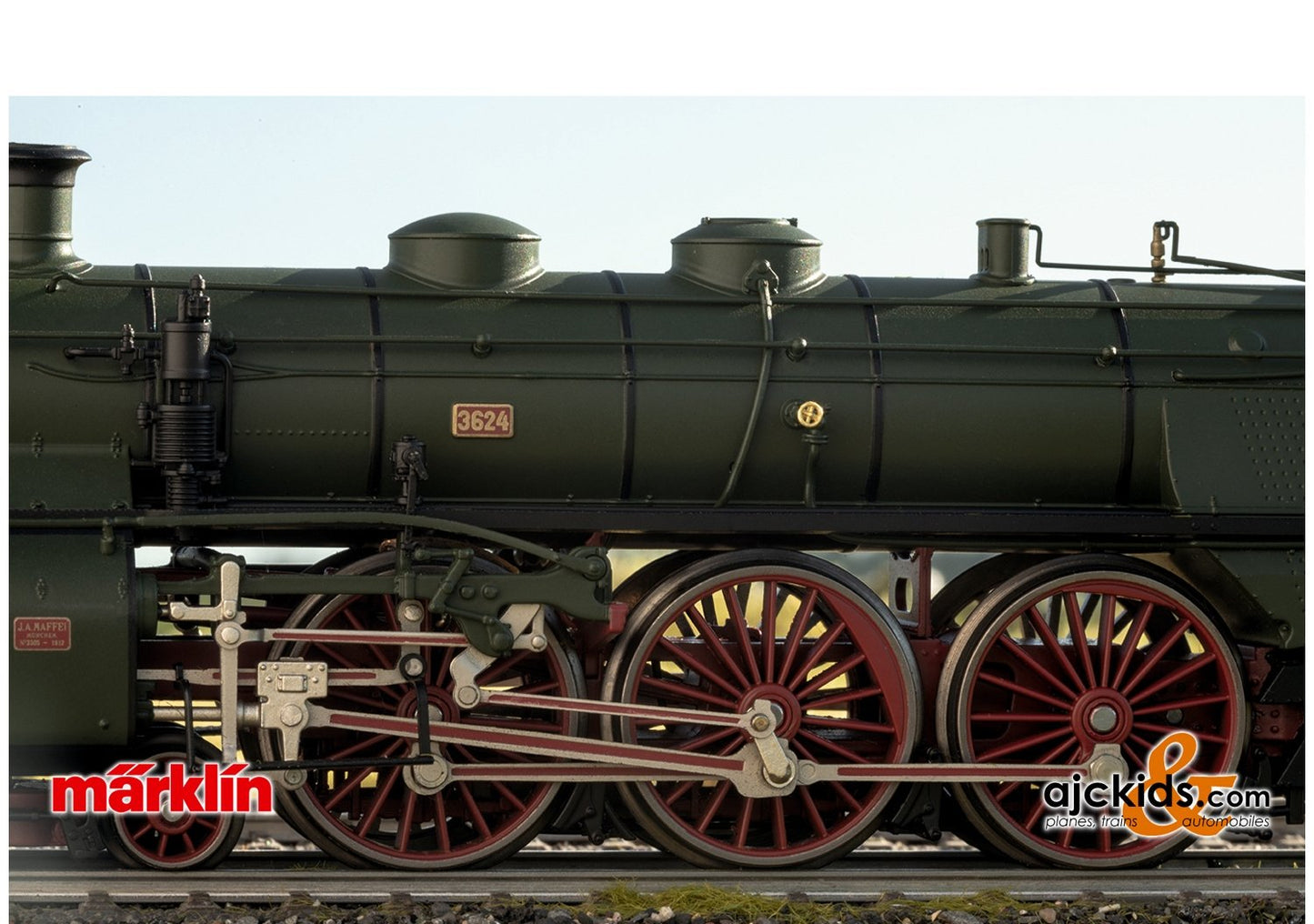

Marklin 39436 - Class S 3/6 Steam Locomotive, the "Hochhaxige" / "High Stepper"

Skip to product information
1 of 4

$0.00
Regular price Sale price $000
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883394367

System: 3-Rail AC (Märklin).

View full details

Model: The locomotive is completely new tooling. The locomotive is constructed mostly of metal. The running gear is intricately constructed of die-cast metal with a partially open bar frame. There is an open view through the running gear. The cab is modelled in detail. The lamps are designed to be white. The locomotive has 5-pole high-efficiency propulsion with a flywheel. The locomotive also has a factory-installed smoke unit, a lighted cab, a light for oncoming trains, which can be controlled in digital operation, and an mfx+ decoder. There is a close coupling mechanism between the locomotive and tender with a "display case position". The locomotive has intricate smoke box door steps, and the tender has a hook coupler and an air hose on the rear. Piston rod protection sleeves are also included.

Length over the buffers 26.7 cm / 10-1/2".



Prototype: Royal Bavarian State Railways class S 3/6 express steam locomotive, subclass d, the "Hochhaxige" / "High Stepper" with 2,000 mm / 78-3/4" diameter driving wheels. Road number 3624. Later 18 441. The locomotive looks as it did around 1912.

Class 18.4 Steam LocomotiveThe first unit left the builder in July of 1908. By 1911, Maffei delivered another 16 almost structurally identical units in three production runs. In a departure from the first locomotives, 18 units (Series d and e, Maffei 1912/1913, road numbers 3624-3641) were equipped with driving wheels with a diameter of 2,000 mm / 78-3/4". This caused the boiler on these units to be higher.The "High Stepper" S 3/6 placed into service in 1912/13 developed into the masterpiece of Bavarian express locomotives. They proved to be marvelous long-distance runners and were virtually predestined for fast trains especially. They thus immediately hauled without stopping the D 57/58 between Munich and Würzburg (277 km / 173 miles in 3 hours 20 minutes) as well as the D 79/80 between Munich and Nürnberg (199 km / 124 miles in 2 hours 15 minutes). Unfortunately, World War I ended these marvelous performances a little later. On the DRG the remaining units with small wheels were given the road numbers 18 401-434, 18 461-478, and 18 479-548, the "High Steppers" the road numbers 18 441-458. With a few short-lived exceptions, the latter remained true to their Bavarian homeland. Even though all of the "High Steppers" survived World War Era_II, hardly a unit experienced the German Railroad period. Almost all were retired in the first postwar years. One exception was road number 18 451, for starting in February of 1950 it was made available to the Locomotive Research Institute in Göttingen. There, it did a series of excellent runs. Among them, the long-distance run of May 2, 1951 still occupies a remarkable position. The running times of the newly introduced Ft 56 express powered railcar were specified for the new bi-level train to be hauled from Hamburg to Munich. Actually, road number 18 451 was able to maintain the running times of the Ft and in part even undercut them somewhat. The absolute most remarkable thing on this run was covering an 820 km / 513 mile long route in the long-distance run with a locomotive that had just reached 40 years old and without dumping cinders in between. Actually, the fire was still so good upon arrival in Munich that road number 18 451 could have done another 100 to 200 km / 63 to 125 miles. Starting in April of 1952, the research institute was then able to do without the locomotive and it was put into storage. By 1958, it was immaculately refurbished at the repair facility in Ingolstadt, put back to its original condition, and transferred to the German National Museum in Munich as a donation, where it currently occupies a place of honor as the only surviving "High Stepper".

Charlie's Tip: Passenger cars to go with this locomotive can be found under item numbers 41358, 41359, and 41369. The baggage car to go with this locomotive is item number 41379. These cars have new car numbers, new overhaul information, and a new train route.

This locomotive can be found at Ajckids in a DC version in the Trix assortment under item number 22403.

  • Large driving wheels included.
  • Detailed modelling of the lighted cab.
  • Intricate running gear constructed of die-cast metal with a partially open bar frame.

Magical – Well-Designed – Elegant

In the spring of 1907, Maffei was given an order to build a Pacific compound locomotive for the Royal Bavarian State Railways. Using the Baden "IV f" built by the same company as a basis, Maffei developed the Bavarian S 3/6, which was soon to fascinate generations of railroad fans with its timeless elegant looks characterized chiefly by the four-cylinder compound running gear.

Completely and finely detailed new tooling

Our surprise model for 2019

Features

( Metal frame and mostly locomotive body.
# mfx+ digital decoder
§ DCC decoder
h Built-in sound effects circuit.
E Dual headlights that change over with the direction of tavel.
U Märklin close couplers in standard pocket with guide mechanism.
1 Era 1
Y

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Smoke generator contact X X X X X
Locomotive operating sounds X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Light(s) for Oncoming Train X X X X
Whistle for switching maneuver X X X X
Engineer’s cab lighting X X X X
Letting off Steam X X X
Operating sounds X X X
Tipping grate X X X
Air Pump X X X
Water Pump X X X
Injectors X X X
Sound of coal being shoveled X
Conductor's Whistle X
Rail Joints X
Coupler sounds X
Sanding X
Switching maneuver X
Replenishing fuel X
Replenishing fuel X
Replenishing fuel X
Safety Valve X
Dialog X
Dialog X
Conductor X
Surrounding sounds X
Station Announcements X

EAN/UPC: 4001883394367
