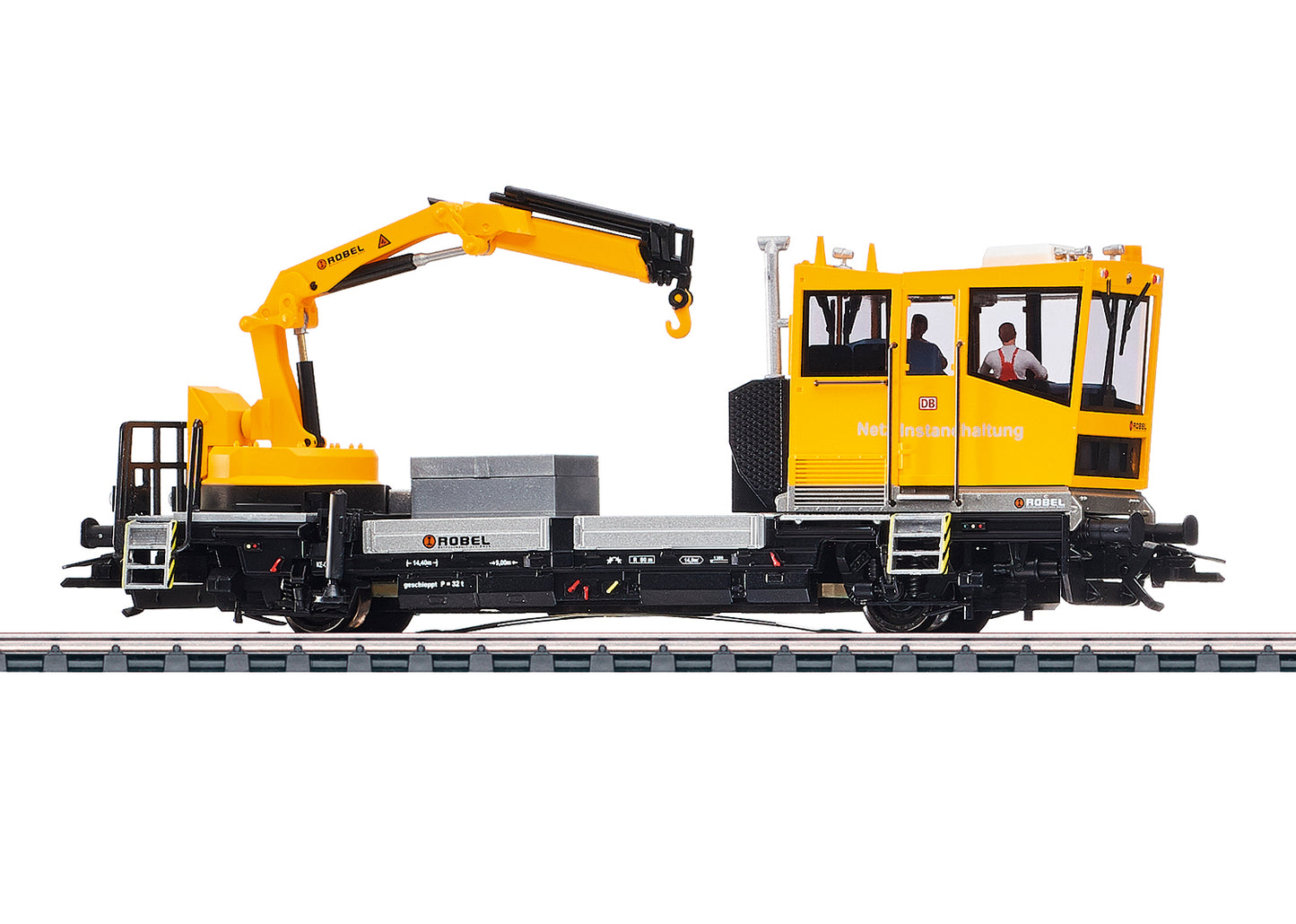

Marklin 39549 - ROBEL 54.22 Powered Track Car



  • $369.90
    Unit price per
Shipping calculated at checkout.

  Shows to be in stock at Ajckids

Add to Wishlist

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: ROBEL 54.22 powered track car as a construction site vehicle for the DB Network Maintenance. With a movable loading crane. Used for maintenance and monitoring. The unit looks as it currently does in real life.

Highlights

  • Loading crane can be controlled digitally.
  • mfx+ digital decoder and full sound features included.

Product

Model: The model has an mfx+ digital decoder and extensive sound functions. It has controlled high-efficiency propulsion. The model has a compact design maintenance-free motor. 2 axles powered. The model has separately applied grab irons on the cab. The triple headlights and dual red marker lights change over with the direction of travel and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. The model has the double "A" light function. Maintenance-free warm white and red LEDs are used for the lighting. The cab has interior details and controllable interior lighting. The loading crane can be turned by a motor and can be controlled digitally.

Length over the buffers 13.4 cm / 5-1/4".

One-time series.

Product info

This product was done in cooperation with the firm Viessmann Modellspielwaren GmbH.

Publications

- New items brochure 2017 - Product programme 2017/2018

Prototype information

At the turn of the millennium, the German Railroad needed additional powered track cars. However, due to increased work requirements as well as altered conditions for use, the new units had to be modified from the designs for existing units. On the units previously purchased, the power shift transmissions were usually overloaded in the toughest of conditions. Two requirements were that the units quickly reach a maximum speed of 100 km/h / 63 mph and a higher motor performance. These requirements could be fulfilled very well by the "BAMOWAG 54.22" Robel powered track car with a hydrodynamic transmission and a 440 kilowatt / 590 horsepower water-cooled type BF 8 M 1015 C KHD diesel motor. The result was a tractive and work unit with greater pulling power and ideally suited for transfer service. The DB then purchased it in the years 1999 to 2006. A high-quality drivetrain and modern, technically well-engineered steering for the unit enabled heavy loads behind it. The starting tractive effort was thus 90 kilo Newton / 20,233 pounds and the maximum trailing load was specified as 2,000 metric tons.

In addition, the classic requirements of loading, hauling, lifting, and lowering were mastered effortlessly. The BAMOWAG 54.22 features a generously proportioned, air-conditioned operator's cab as well as a large, low-mounted load area. The hydraulic PALFINGER loading crane, type PK 19000 with 10 metric tons of lifting power and 5 metric tons of payload, is located there. This crane can also be used as a power shovel. The powered track car as well as the crane can be remote controlled and tandem operation of several units is possible. All of the units have indirect braking and spring-loaded brakes. In 2011/12, 11 Bamowag 54.22 units were converted to lightweight snowplow units with a mounting arrangement for accessory snow brooms and rotary snowplows. The Austrian Federal Railways (ÖBB) purchased the same unit as the X630, and the Swiss BLS Lötschberg Railroad, Inc. purchased it as the Tm 235.

Features

# mfx+ digital decoder
§ DCC decoder
h Built-in sound effects circuit.
G Triple headlights front and rear.
N Triple headlights and two red marker lights that change over with the direction of travel.
U Märklin close couplers in standard pocket with guide mechanism.
8 Era 6
Y

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
On/off function F1 X X X X X
Diesel locomotive op. sounds X X X X X
On/off function F3 X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Headlight(s): Cab2 End X X X X
Flashing Warning Light X X X X
Headlight(s): Cab1 End X X X X
Engineer’s cab lighting X X X
Horn X X X
Locomotive whistle X X X
Compressor X X X
Surrounding sounds X X X
Surrounding sounds X X X
Surrounding sounds X
Surrounding sounds X
Cab Radio X
Dialog X
Dialog X
Dialog X
Surrounding sounds X
Marklin 39549 Instructions: You can download the Instruction Manual for Marklin 39549 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 39549
Scale H0-Scale (1:87)
Availability   Shows to be in stock
Country Germany
Era VI
Railroad DB - German Bahn
Railroad DB - German Bahn AG
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883395494

Instruction Manual Download


You can download the Instruction Manual for Marklin 39549 as a .pdf file here:

 Marklin 39549 Instruction Manual
