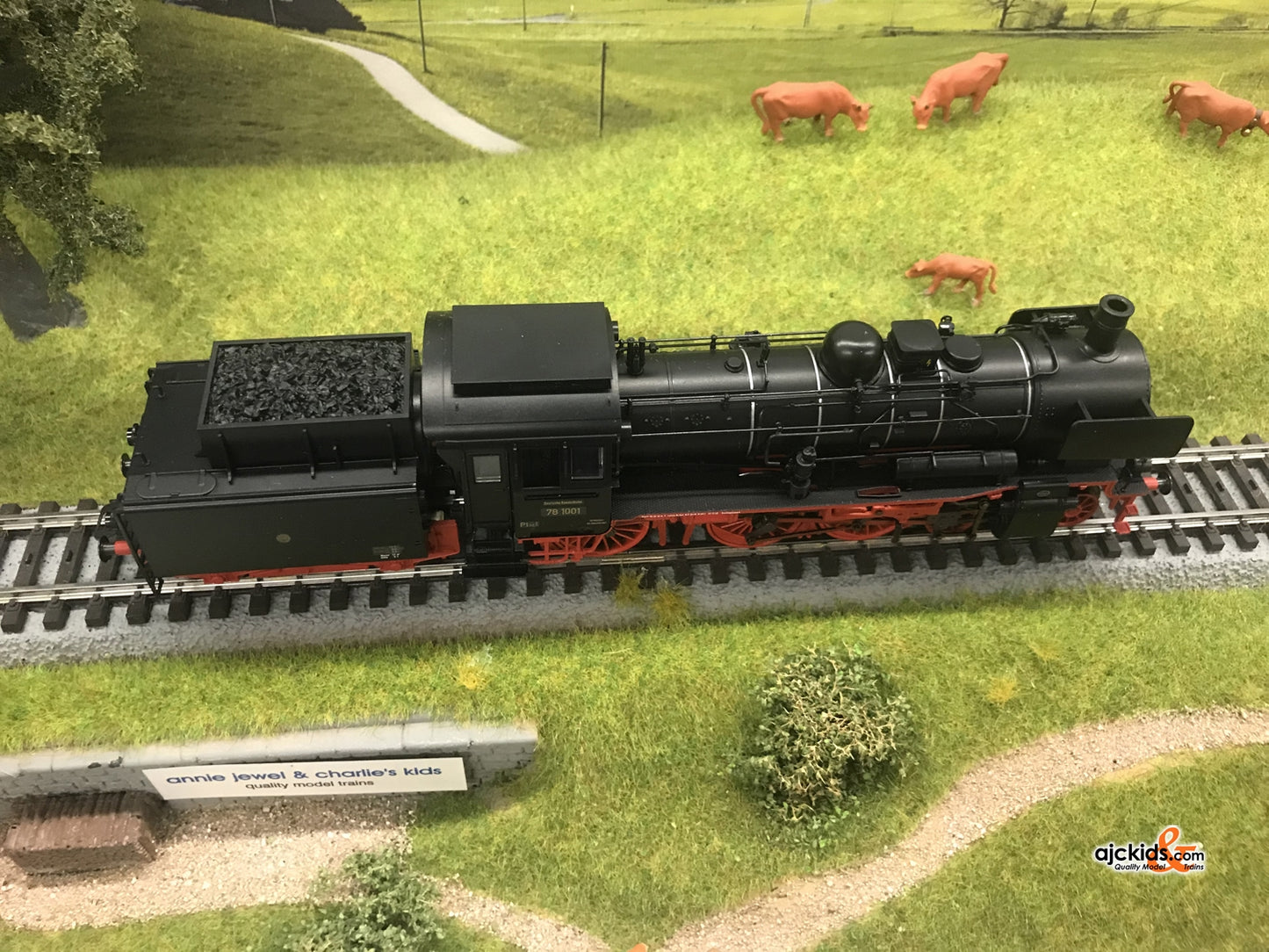

Marklin 39781 - Class 78.10 Steam Locomotive (Insider)

The prototype is a symbol for the German Federal Railroad's thoughts about reawakening and its willingness to experiment at a time when it was still new. Theoretically well thought out but not feasible practically, the two class 78.10 locomotives remained the only ones of their type. The H0 model of road number 78 1001 is now available for the first time and as completely new tooling exclusively for Insider members.

Prototype: German Federal Railroad (DB) steam locomotive, road number 78 1001, 4-6-4T design with a type 2T17 two-axle short tender. The locomotive looks as it did around 1951.

Highlights

• Completely new tooling.
• Especially intricate metal construction.
• Many separately applied details.
• Cab lighting controlled digitally.
• Firebox flickering controlled digitally.
• Current-conducting coupler on the tender controlled digitally.
• Factory-installed smoke unit, controlled digitally.
• mfx+ digital decoder and extensive operating and sound functions included.

Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The locomotive has a built-in smoke unit that will work in conventional operation and that can be controlled digitally. The dual headlights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. Firebox flickering can be controlled digitally. The cab lighting can also be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. The current-conducting coupler on the tender can be controlled digitally.

The minimum radius for operation is 360 mm / 14-3/16".

Piston rod protection sleeves, brake hoses, and reproduction prototype couplers are included.

The locomotive also comes from the factory with figures of a locomotive engineer and a fireman.

Length over the buffers approximately 19.9 cm / 7-7/8".

The steam locomotive, road number 78 1001, is being produced in 2019 in a one-time series only for Insider members.

Charlie's Tip:

The passenger car set to go with this locomotive is offered under item number Marklin 43141, also exclusively only for Insider members. This model can be found in a DC version in the Trix H0 assortment under item number Trix 22890 exclusively for Trix Club members.





Prototype information

Steam Locomotive, Road Number 78 1001 At the start of the Fifties, acceleration of suburban and urban mass transit enjoyed a high priority on the new German Federal Railroad, yet the roster of tank locomotives usable for this purpose was clearly limited. On the contrary, locomotives with tenders were in abundant supply and it seemed obvious to investigate the large roster of class 38.10-40 (Prussian P 8) locomotives for this kind of use. Therefore, the DB took on the experiment of converting this unit into a tank locomotive in order to save the required turning of the locomotive at the destination station. The firm Krauss-Maffei was contracted in 1951 due to suggestions from Prof. Mölbert, Hannover, and in cooperation with the railroad's central office in Munich to equip road numbers 38 2890 and 2919 with short tenders. The boiler, running gear, and frame remained almost unchanged. Only the pilot truck was changed by the installation of a new pivot housing to preserve even more side play. In addition, an automatic reset device was applied. The cab was now enclosed on all sides and it was completely rebuilt of welded construction. A hefty drawbar connected the newly developed two-axle short tender to the locomotive. This drawbar had a reset device based on a Krauss-Helmholtz frame. Coal could be taken through a circular cutout in the cab's back wall, which was sealed to the tender by a rubber diaphragm. After being rebuilt, the two units were classified as tank locomotives with a 4-6-4T wheel arrangement and were therefore given the road numbers 78 1001 (former 38 2919) and 1002 (former 38 2890). They were certified for a permissible maximum speed of 100 km/h / 63 mph in both directions, yet when run in reverse over 60 km/h / 38 mph they were said to be problematic. More units were not rebuilt because this investment was no longer worth it due to the ongoing structural change on the railroad. Initially, the two units ran starting in 1953 in the area of the Munich District. Later they were used in the Lake Constance area. Both locomotives were put into storage as early as 1959 and retired in 1961.
