Marklin 88275 - Class 41 Oil Steam Locomotive



  • $267.35
    Unit price per
Shipping calculated at checkout.

new for 2020

This is a new release for 2020.


The production date and arrival estimate has not yet been updated.


Add to Wishlist

Scale: Z-Scale (1:220)

Product Description

Model: The locomotive is mostly new tooling that is finely detailed with a high-performance boiler (new design). The locomotive body is constructed of metal and has inset cab windows along with correct modeling of the details (smoke stack, cab, vents, etc.). The sanding pipes, imitations of brakes, inductive magnet, track clearance devices, and other details on the underside of the locomotive are modelled. The valve gear and drive/side rods are finely detailed and fully functional. The locomotive has a motor with a bell-shaped armature. All four driving axles are powered. Warm white LEDs are used for the headlights. The tender has spoked wheels.

The minimum radius for operation is 195 mm / 7-11/16”.

Total length over the buffers approximately 112 mm / 4-3/8”.

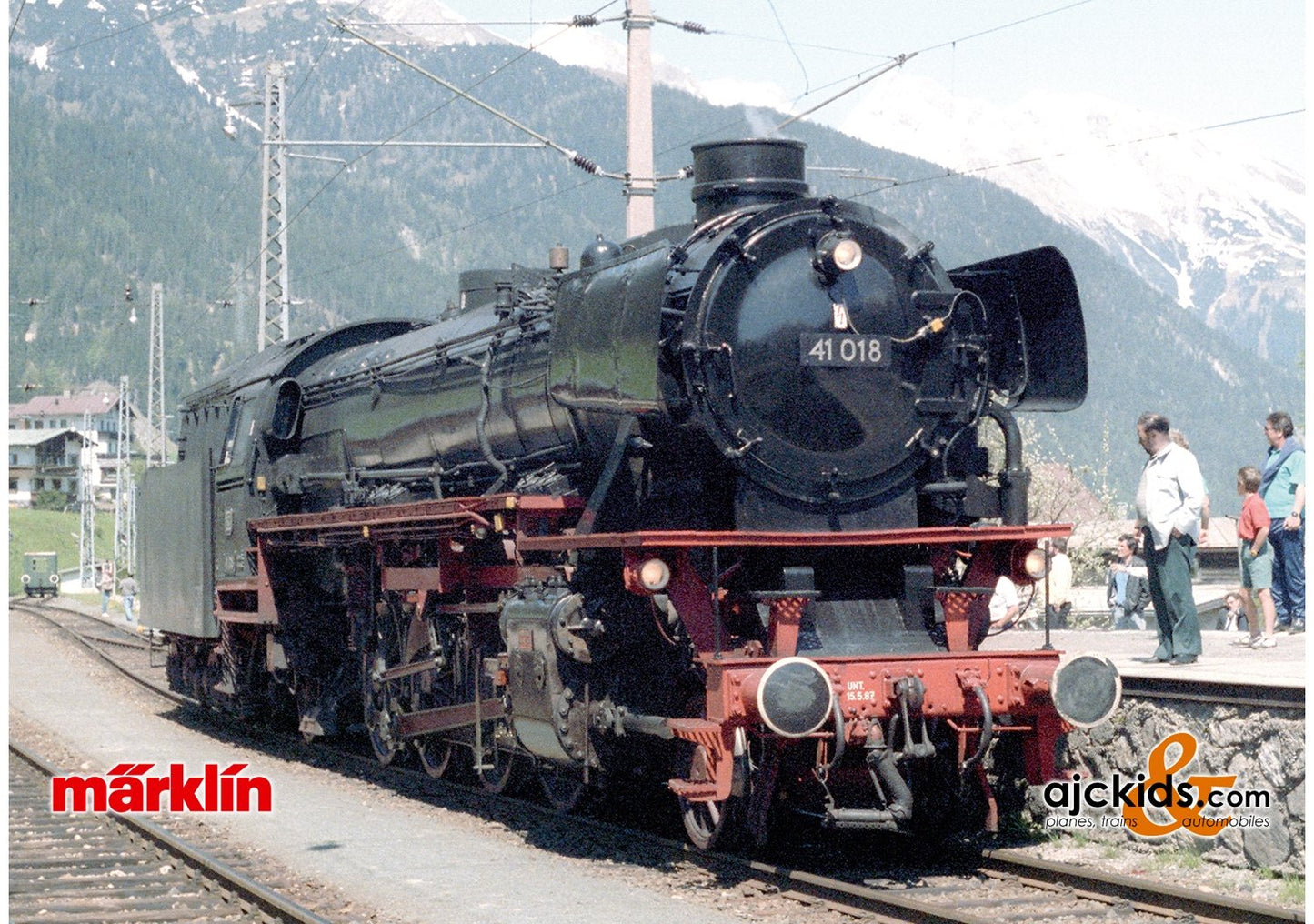

Prototype: German Federal Railroad (DB) class 41 steam freight locomotive with a new design high-performance boiler and a type 2´2´T34 oil tender. The locomotive looks as it did in Era IIIb.

The Class 41The locomotive building industry developed the class 41 2-8-2 locomotive for fast freight trains as part of the DRG's standardized locomotive program. Schwartzkopff delivered two sample units in 1936. The frame was a new development, the boiler was the same as on the class 03, but was designed on the class 41 for 20 atmospheres or 290 pounds pressure per square inch. The axle load could be set at 18 tons or 20 tons per axle. The resulting class 41 was for the first time a general-purpose locomotive that could be used anywhere. The two pre-production units were followed by 364 regular production locomotives that were improved somewhat and that were delivered by almost all of the German locomotive builders by 1941. These locomotives could run at 90 km/h or 56 mph and had 1,900 horsepower, they were used almost everywhere.After World War Era_II, there were 216 locomotives on the DB's roster. It was soon found out that the type St47K boilers were worn out. Since the class 41 was indispensable, the DB developed a completely welded, high-performance boiler with a combustion chamber as a replacement. Compared to the previous long tube boiler, this version had a higher ratio of premium radiant heating surface and could therefore support a greater load. Between 1957 and 1961, 102 class 41 locomotives were equipped with this new boiler at the maintenance facility in Braunschweig. Together with the front skirting being removed, this resulted in a considerably new look for the class 41 locomotives. Forty (40) of these converted locomotives were also equipped for oil firing. The last grate-fired converted units were retired in 1971.


One-time production only for Märklin Insider members.

  • Mostly new tooling.
  • Locomotive running gear and body constructed of metal.
  • Finely detailed valve gear and drive/side rods.
  • Modeling of the braking system, inductive magnet, track clearance devices, etc.
  • Motor with a bell-shaped armature.
  • Inset cab windows.
  • Warm white LEDs for the headlights.

More Information

Manufacturer Marklin
Item 88275
Scale Z-Scale (1:220)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Era III
Edition Insider Model
Railroad DB - German Bahn
UPC or EAN (GTIN) 4001883882758
