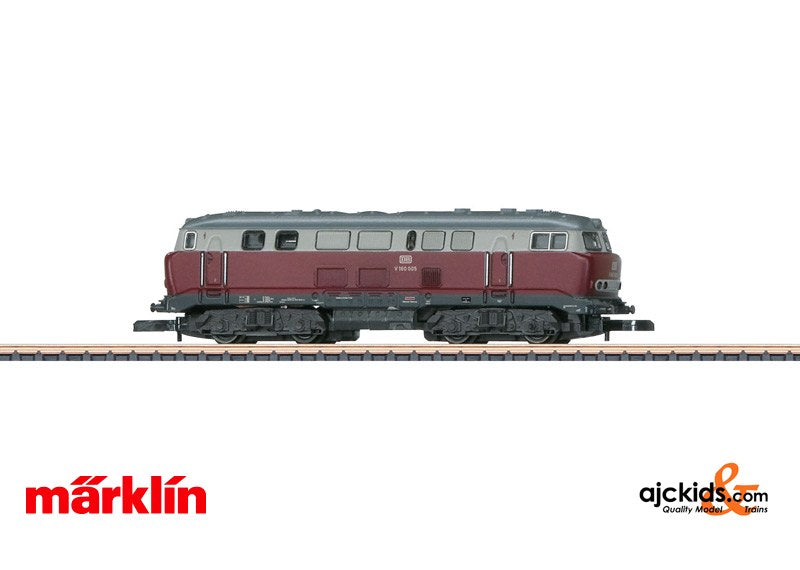

Marklin 88785 - DB cl V 160 Lollo Diesel Locomotive Era III

Marklin 88785 - DB cl V 160 Lollo Diesel Locomotive Era III


  • $186.36
    Unit price per
Shipping calculated at checkout.

This item may be out of stock.
The availability has not yet been updated.

Only 0 left!
Add to Wishlist

Scale: Z-Scale (1:220)

Product Description

Prototype: German Federal Railroad (DB) class V 160 "Lollo" pre-production general-purpose locomotive. Prototype paint scheme. Different vent and window arrangement on the sides. Road number V 160 005. The locomotive looks as it did around 1962.

Model: Both trucks are powered. The triple headlights and red marker lights change over with the direction of travel. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has a finely executed, extensive paint scheme and lettering. It also has larger buffer plates.

Length over the buffers approximately 75 mm / 2-15/16".

Prototype information: V 160 Pre-Production Series In 1956 the German Federal Railroad‘s central office in Munich contracted with the locomotive builder Krupp in Essen to develop a single-motor, general-purpose diesel locomotive. Originally, the plan was for a unit with a nominal power output of 1,600 horsepower and a class designation of V 160 in keeping with the conventions of that time. The plan for the locomotive was for two engineer‘s cabs, two two-axle trucks, a maximum speed of 120 km/h / 75 mph, a maximum length over the buffers of around 16,000 mm / 52 feet 6 inches as well as sufficient train heating for an express train of ten cars. A maximum axle load of 18 metric tons was planned to enable operation on expanded branch lines. Hydraulic fluid transmissions were planned for transmitting power to the wheels. It was planned that the new V 160 would replace the provincial steam locomotives with the class numbers 38.10, 39, 55.25, 56.20, and 57.10 as well as the standard design locomotive with the class numbers 03 and 50.

During the development phase of the V 160 it was possible to increase the motor performance to 1,900 horsepower with improved supercharging and forced air cooling. In 1960/61 the firm of Krupp delivered six prototypes as the road numbers V 160 001-006, which were equipped with different 1,900 horsepower motors and gear drives. In 1962/63 four additional units followed (V 160 007-010) from Henschel. The first nine locomotives had fully rounded ends beneath the windshields which quickly gave them the nickname „Lollo“ (after the Italian film star Gina Lollobrigida). The tenth locomotive by contrast had the angled look taken from the V 320 001, that was to become the typical characteristic of the entire V 160 family. The frame and the superstructure were of lightweight steel construction, completely welded. Between the two engineer‘s cabs insulated against sound was the engine room with its propulsion layout, cooling equipment, and oil-fired forced-flow boiler for train heating. It was accessible by a side corridor. The power transmission was done with a Voith fluid transmission that had to be developed from scratch for motors of the performance class. In addition, road numbers V 160 001-009 also had equipment for shuttle train operation and multiple unit lashups.

More Information

Manufacturer Marklin
Item 88785
Scale Z-Scale (1:220)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Era III
Railroad DB - German Bahn
UPC or EAN (GTIN) 4001883887852
