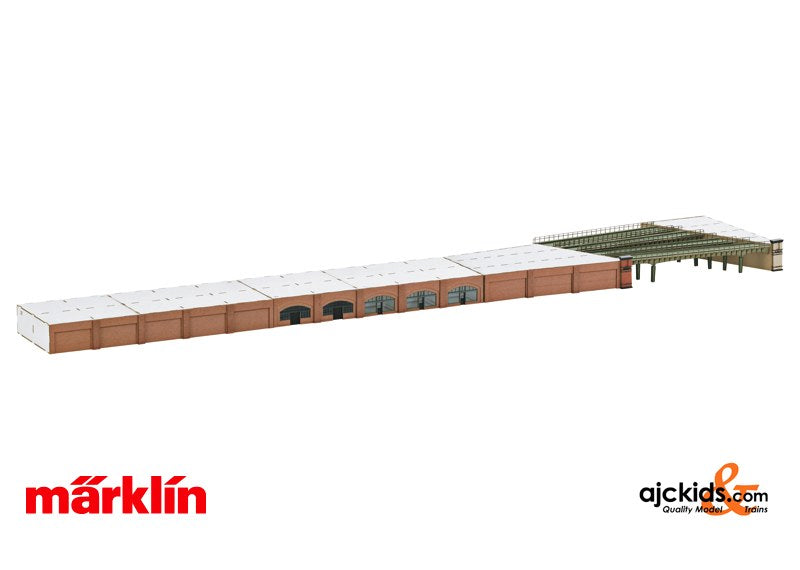

Prototype: Hamburg Dammtor Station arcades and bridges.

Model: This laser-cut kit is for the Dammtor Bridge and the Dammtor arcades for four tracks. This kit goes with the 89792 Hamburg Dammtor Station. All 4 right-of-way bridges are included in this kit. The Dammtor Bridge was in use until 2012 and was then replaced by a concrete bridge. The length of a right-of-way bridge is approximately 171 mm / 6-3/4". This kit set also includes 8 Dammtor arcades and 2 workshop arcades each for four tracks. These laser-cut kits fit together exactly and are scale length at 852 mm / 33-1/2". The dimension of each arcade is 300 mm / 11-13/16". The total length is shortened by approximately 300 mm / 11-13/16" if the arcades are used on both sides of the right-of-way. In the prototype the arcades are only on one side. An embankment is on the other side. The right-of-way is included as a sturdy sub-base. An additional "workshop arcade" is included to swap with other arcades and provide greater flexibility. The height of the track layout level above the baseplate is approximately 30 mm / 1-3/16", just like the 89792 kit. Dimensions L 852 mm / 33-1/2" x W 152 mm / 6". Detailed building instructions are included with this kit.

Highlights:

• Highly detailed prototypical kit.

This kit goes with the 89792 kit for the Dammtor Station.

Released in: New items brochure 2015
