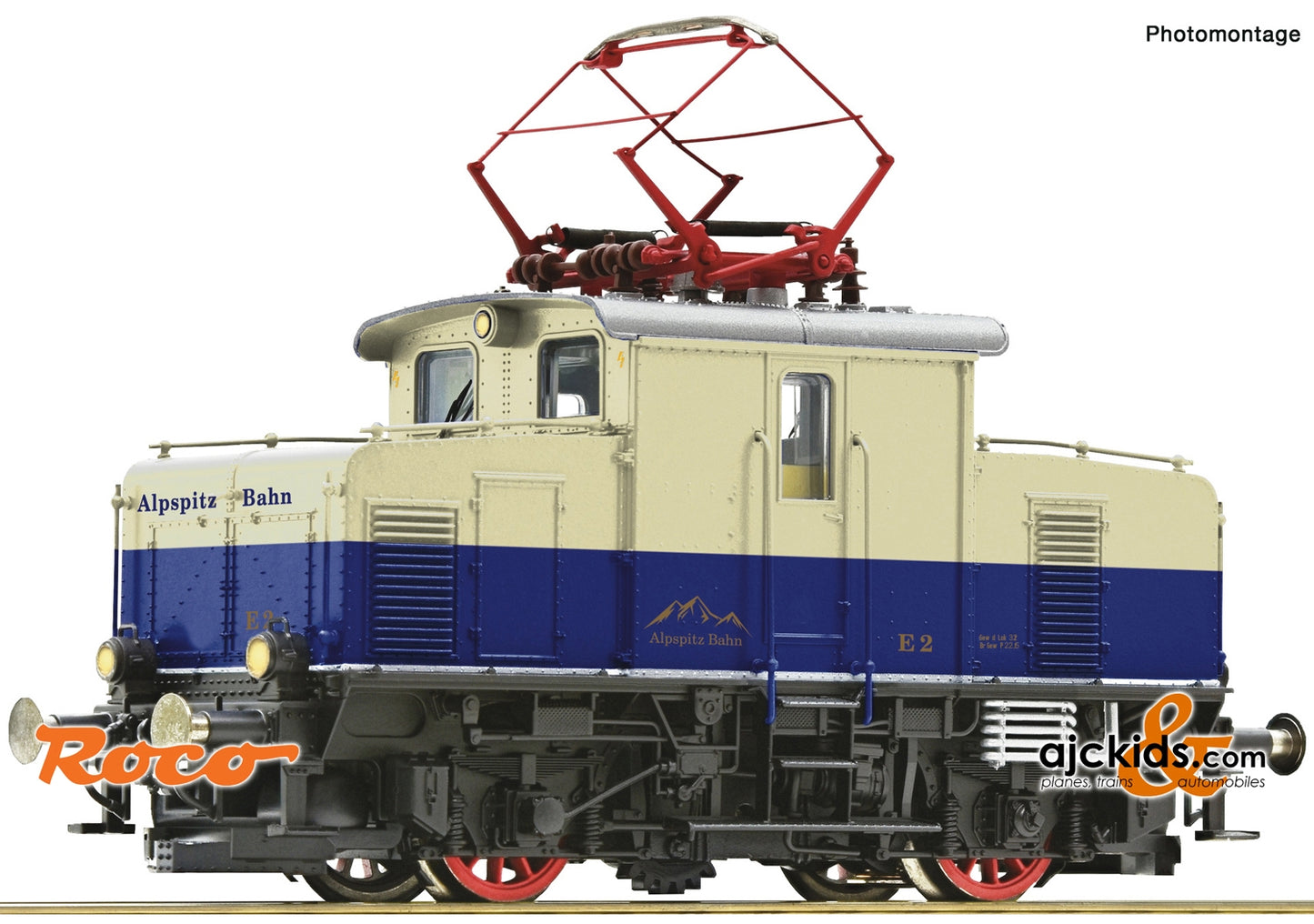

Roco 70442 - Cogwheel electric locomotive

Skip to product information
1 of 1

Regular price $0.00 Sale price $000
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 9005033704421

View full details

Cogwheel electric locomotive (similar to the class E 69 loco) from the Alpspitz-Bahn.

  • Can be operated on and off toothed rack tracks
  • Due to its enormous climbing ability on cogwheel tracks, the machine can cope with extreme differences in altitude (up to 35%) even when space is limited.
  • Due to the particularly high transmission ratio, it is also ideal for shunting operations on standard lines
  • Fleischmann PROFI plug-in coupling for cogwheel railway operation for replacement is included

Cogwheel railways radiate an exceptional fascination with the unique combination of mountains, complex routing and numerous bridges and tunnels. The locomotion of the train is based on a cogwheel that locks into a rack located between the tracks, since the standard friction between the wheel and the track is not sufficiently robust for the steep inclines. On cogwheel railway lines that are based on what is called a mixed system and where friction sections alternate with rack sections, depending on the gradient, the tractive power is exerted by the same machine. There are a lot of private cogwheel railways in the Alps, which are very popular with tourists from all over the world.

General data
Number of driven axles   2
Coupling   NEM shaft 362 with close coupling mechanism
Minimum radius   358 mm
Flywheel   yes
Motor   3 pole motor
Interface   Electrical interface for digital decoders (ask Ajckids) PluX16
Head light   Both sides of the vehicle are equipped with direction dependent triple headlights.
LED head light   yes
Length over buffer   100 mm

Prototype Information

With their unique combination of mountain landscape and venturesome routing featuring numerous bridges and tunnels, rack-and-pinion railways engender particular fascination. The movement of the train is achieved through the engagement of a toothed wheel in a toothed rack positioned in the centre of the track, as the usual friction generated between wheels and rails is insufficient for the steep inclines. After the rack-and-pinion trains originally produced for tourist and industrial traffic proved their worth, plans were formed to utilise the toothed rack for continuous passenger and freight transport, and thus railways in the so-called mixed system were developed. This system features the alternating use of friction and toothed rack sections depending on the gradient ratios.

The traction is exercised by one and the same engine. The first rack-and-pinion railways were exclusively operated using steam locomotives. At the end of the nineteenth century, electric traction increased greatly in significance. Today, many of the trains originally operated using steam have been electrified; on several of these, the steam locomotives have been replaced or supplemented with diesel traction units. Because steam engines were so popular with the tourists, several rack-and-pinion railway operators procured new, oil-fired steam locomotives in the 1990s. It is possible to find a particularly large number of private rack-and-pinion railways in the Alps, and these attract tourists from all over the world. Some of the most famous railways are the Zugspitzbahn in Germany, the Schafbergbahn in Austria and the Vitznau-Rigi-Bahn in Switzerland, which is the country with the most rack-and-pinion railways.
