Trix 22163 - Class 4000 Steam Locomotive

Trix 22163 - Class 4000 Steam Locomotive

Product Description

Class 4000 Steam Locomotive

Model: The locomotive has a digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion. 8 axles powered. Traction tires. The locomotive has an articulated frame enabling it to negotiate sharp curves. It also has Boxpok driving wheels. 2 each 7226 smoke generators can be installed in the locomotive. The headlight changes over with the direction of travel. The headlight, the backup light on the tender, the number board lights, and the smoke unit contacts will work in conventional operation and can be controlled digitally. The engineer's cab lighting can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting. The running gear is articulated for operation on curves. The locomotive has Boxpok driving wheels. The locomotive comes from the factory with RP 25 wheels and Kadee-compatible couplers. The middle driving axles are spring-loaded. Steam lines are mounted to swing out and back with the cylinders. There is a close coupling between the locomotive and tender. There is a powerful speaker in the tender and the volume can be adjusted. Coupler hooks can be inserted in the pilot on the front of the locomotive. The locomotive has separately applied metal grab irons. There are many separately applied details. Figures of a locomotive engineer and fireman for the engineer's cab are included. Length over the couplers approximately 46.5 cm / 18-5/16".The locomotive comes in a wooden case.

Prototype: Union Pacific Railroad (UP) class 4000 "Big Boy" heavy steam freight locomotive. Version with oil firing. Road number 4014. The locomotive looks as it did in 2019.



One-time series.


One-time series of the "Big Boy", road number 4014, with oil firing, put back into operation by Union Pacific in the prototype.Prototypical execution of the model.Factory-installed RP 25 wheels and Kadee-compatible couplers.



Product info

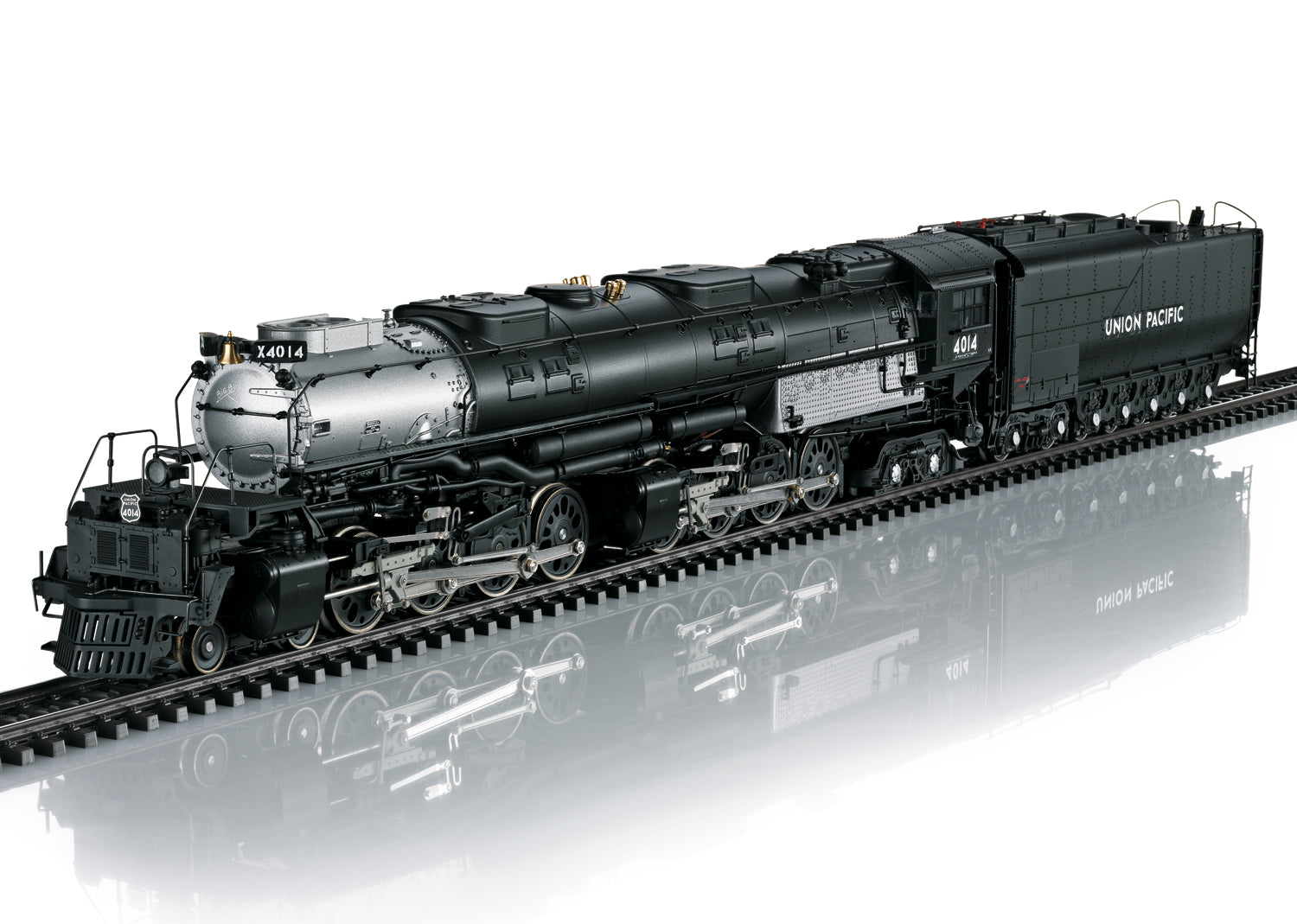

The image of the locomotive is digitally retouched.

Notes for operating this locomotive: The locomotive can be used on curved track with a radius of 360 mm / 14-3/16" or more. However, we recommend larger radii. Due to the overhang of the long boiler, signals, catenary masts, bridge railings, tunnel portals, etc. must be installed for sufficient clearance on curves. The track must be well mounted due to the heavy weight of the locomotive. The locomotive can only be run through a turntable or transfer table. Products bearing "Union Pacific" are made under trademark license from the Union Pacific Railroad Company.

A freight car set to go with this locomotive can be found in the Trix H0 assortment under item number 24914. This model can be found in an AC version in the Märklin H0 assortment under item number 37997.

Publications

- New items brochure H0 2020

Features

_ Era VI
§ DCC decoder
` Digital decoder with up to 32 digitally controlled functions. The quantity depends on the controller being used.
! Sound effects circuit
> Single headlight front and rear that changes over in one direction of travel
W Metal locomotive frame and boiler
1 With NEM coupler pocket and mechanism for close couplers
\ For adults only

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
DCC SX2 SX MFX
Headlight(s) X X
Steam locomotive op. sounds X X
Locomotive whistle X X
Smoke generator contact X X
Direct control X X
Sound of squealing brakes off X X
Engineer’s cab lighting X X
Whistle for switching maneuver X X
Number Board Lights X X
Bell X X
Operating sounds X X
Air Pump X X
Injectors X X
Auxiliary Blower X X
Conductor's Whistle X X
Cab Radio X X
Coupler sounds X X
Replenishing fuel X X
Replenishing fuel X X
Replenishing fuel X X
Headlight(s) X X
Switching maneuver X X
Rail Joints X X

More Information

Manufacturer Trix
Item 22163
Scale H0-Scale
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Era VI
UPC or EAN (GTIN) 4028106221637
