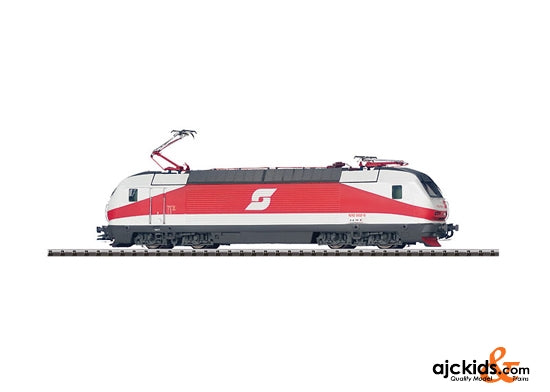

Trix 22600 - High Performance Electric Locomotive

Skip to product information
1 of 1

$190.00
Regular price $19000
Regular price $291.90 Sale price $19000
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4028106226007

System: 2-Rail DC.

View full details

Prototype: Austrian Federal Railways (ÖBB) class 1012 express locomotive. Built in 1997 by SGP, ELIN, and Siemens as a series of 3 prototypes. Road number 1012.002-0. Use: Test runs and in regularly scheduled service.


Highlights

  • New tooling.
  • Scale construction.
  • Super detailing.

Product

Model: Era V. The frame is made of die-cast metal. The locomotive has a 21-pin digital connector. The locomotive has a centrally mounted 5-pole can motor with diagonally offset commutator segments and with a flywheel. All 4 axles are powered through cardan shafts. The headlights are maintenance-free warm white LEDs, and they will work in conventional operation. The regular and long distance headlights can be controlled digitally when a 66839 decoder is installed. The locomotive has separately applied grab irons and many other details. It also has detailed roof equipment. The engineer's cabs have interior details; the front one has a figure of a locomotive engineer. The locomotive has NEM coupler pockets and a close coupler mechanism. The couplers can be replaced by closed end skirting. Brake hoses can be installed on the locomotive.

Length over the buffers 222 mm/8-3/4".

Product info

This model is available with 2 road numbers: Item no. 22600 is 1012.002-0, item no. 22601 is 1012.003-8.

Publications

- Main Catalog 2007/2008 - New items 2007 - Main Catalog 2008/2009 - Main Catalog 2009/2010 - Main Catalog 2010/2011

Prototype information

The high performance class 1012 electric locomotive was specially designed for the Austrian railroad network. The mountainous terrain with sharp curves and steep grades but also long straight routes such as in the Inn Valley or on the West Railroad / Westbahn pose great challenges in the design of locomotives for the Austrian Federal Railways. The class 1012 locomotive was originally intended for use as an express locomotive with a maximum speed of 230 km/h / 144 mph and was supposed to replace the class 1044. It was used for several years in regular scheduled service as general-purpose motive power with an output of 6.4 megawatts / 8,582 horsepower for express passenger and freight service on the point of trains for the "Rollende Landstrasse" / "Rolling Road" on the Innsbruck - Brenner line.

Technically, the class 1012 was designed to haul trains of 660 metric tons on .5% grades at 220 km/h / 138 mph and of 600 metric tons on 2.8% grades at 100 km/h / 63 mph. It was designed to be able to haul express passenger trains on flat terrain and heavy freight trains in mountainous territory with double-heading equally well. The locomotive strongly resembled the SBB's class 460 in the design of its superstructure with the side walls of fluted sheet steel and the engineer's cabs elements of fiberglass components. The mechanical part of the locomotive came from Simmering-Graz-Pauker, and the electric part was delivered by ELIN, Siemens, and ABB. The top management of the Austrian Federal Railways changed while the first three locomotives were being built, and new regulations were effected for announcing requests to tender bids in the EU region. Initially, the ÖBB no longer wanted to take delivery of the locomotives as a result, but in the end an agreement was reached and the locomotives were accepted by the ÖBB in 1997. These locomotives were stationed in Innsbruck during their entire service life. The class 1016/1116 "Taurus" locomotives soon represented a more economical alternative, and the class 1012 locomotives with their attractive shape remained a splinter class.

Features

f Era V
& 21-pin connector
P Triple headlights and two red marker lights that change over with the direction of travel.
S Triple headlights front and rear that change over with the direction of travel
, Lighting with warm white LED’s
Y Metal locomotive frame
X Power supply can be switched to operate from catenary
1 With NEM coupler pocket and mechanism for close couplers

Warning

ATTENTION: not for children under 3 years

EAN/UPC: 4028106226007
