Trix 66861 - C Track Turntable

Skip to product information
1 of 1

$499.95
Regular price $49995
Regular price Sale price $49995
Sale Sold out
Shipping calculated at checkout.

Available to order, not in stock here (can email for estimate)

Add To Wishlist

Scale: H0-Scale

EAN/UPC:

System: DC 2-Rail.

View full details

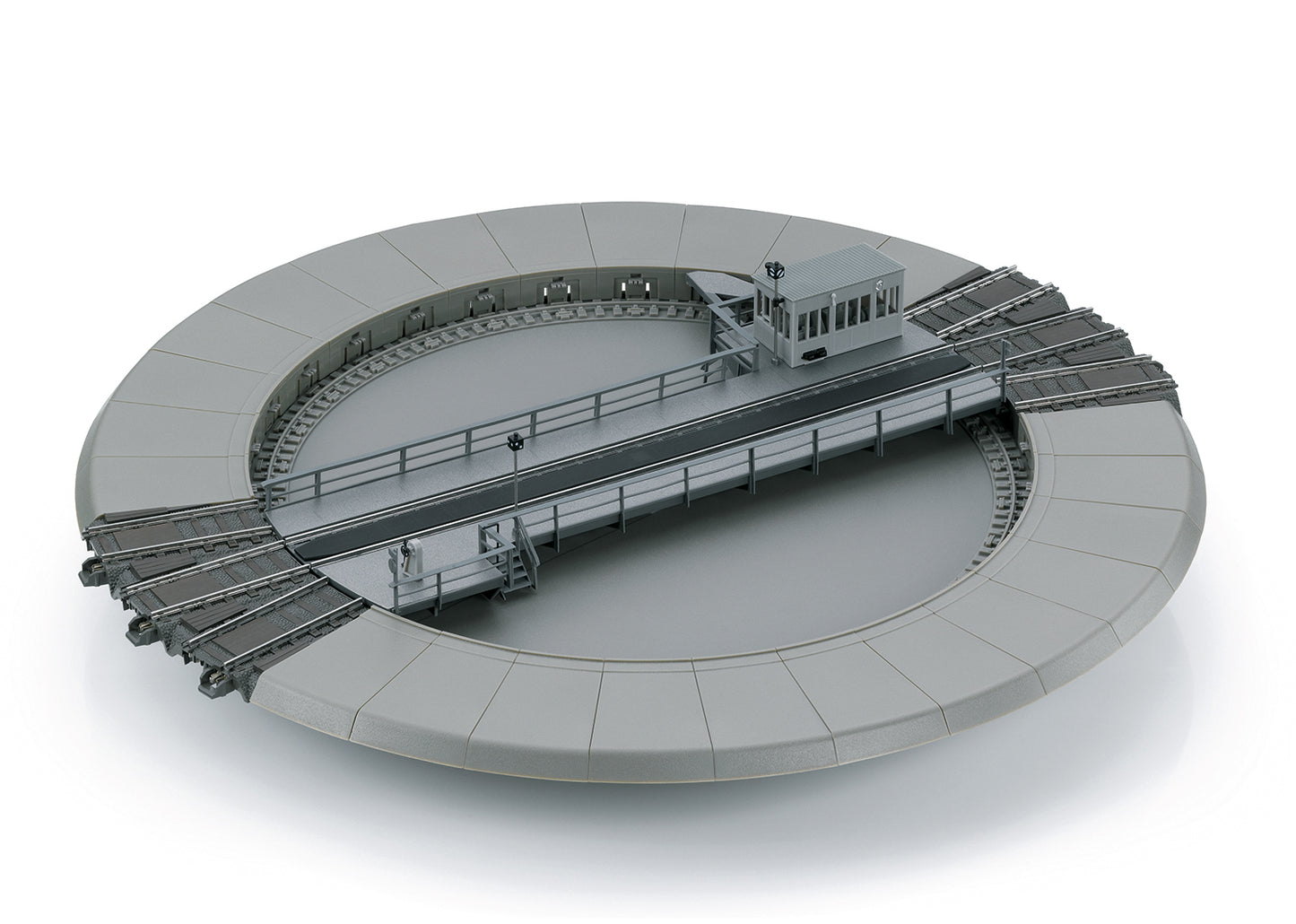

This is a DB standard design 23 meter / 74 foot 9 inch turntable. It is designed for conventional and digital locomotive operation. The remote controlled deck has a built-in motor. It can only be controlled digitally with the Mobile Station 2 and Central-Station 2 and 3 (not included). Control with the Central-Station 2 and 3 is especially easy by means of track indexing (after carrying out an update), or with different digital central controllers that use the DCC digital format. Function: The deck turns right/left and the pit is designed for sunken installation in the layout. 6 track spoke connections for C Track are included for insertion at the location of your choice. The spoke angles are in the C Track grid spacing of 12°. A maximum of 30 track spoke connections in the spacing of 12° can be done with the 66871 expansion set. Locomotive operating current is supplied to the track spoke connections by means of the turntable deck. Polarity change can be programmed.

The external diameter of the turntable with one each spoke track opposite each other is 378 mm / 15-1/32".

The diameter of the pit without spoke tracks is 278 mm / 10-15/16". The deck length is 263 mm / 10-3/8".

This turntable can be used with the 72886 roundhouse locomotive shed.

Various sound functions can be controlled. LEDs are used to light the turntable operator's hut and the outside lighting and they can be controlled.

Highlights

  • New tooling.
  • Sound.
  • Operator's hut with LED lighting.

Publications

- New items brochure 2019 - Main Catalog H0 2019/2020 - Main Catalog H0 2020/2021

Features

c Era II
d Era III
e Era IV
f Era V
_ Era VI
§ DCC decoder
` Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
! Sound effects circuit
, Lighting with warm white LED’s
\ For adults only

Warning

ATTENTION: adults only
DCC SX2 SX MFX
Light Function X X
Light Function X X
Operating sounds X X
Horn blast 1 X X
Horn blast 2 X X
