Brawa 40905 - Steam Locomotive BR 01 DB Digital BASIC+

Brawa 40905 Steam Locomotive BR 01 DB Digital BAS+


  • $473.80
    Unit price per
Shipping calculated at checkout.

This item is not in stock, but available to order.

Only 0 left in stock in our store!
We can't ship until around
Add to Wishlist

Scale: H0-Scale (1:87)

Product Description

Steam Locomotive BR 01 DB Digital BAS+

Road no.: 01 173

Item no. 40904
Direct current Analogue BASIC+
Prepared for locomotive sound
20
Locomotive is prepared for the installation of a smoke generator
Delivery date: Q II / 2020

Item no. 40905
Alternating current Digital BASIC+
Prepared for locomotive sound
20
Locomotive is prepared for the installation of a smoke generator
Decoder Doehler & Haass
Delivery date: Q II / 2020

Item no. 40906
Direct current Digital EXTRA
Integrated locomotive sound
Locomotive has a smoke generator
Decoder Doehler & Haass
Delivery date: Q II / 2020

Item no. 40907
Alternating current Digital EXTRA
Integrated locomotive sound
Locomotive has a smoke generator
Decoder Doehler & Haass
Delivery date: Q II / 2020

275,3
Length over buffer in mm
Navigable minimum radius 360 mm
PluX22
4 wheels with fiction tyres
Locomotive has flywheel drive
Triple headlights alterning with the direction of travel
With interior lighting
The model has a coupler pocket and short coupling cinematic


MODEL DETAILS

  • Boiler, driver's cab and tender made of high-quality, impact-resistant plastic
  • Perforated underframe and spoked wheels in die-cast zinc
  • Smoke generator and sound decoder, either built in or as a retrofit option
  • Illuminated driver's cab
  • True-to epoch lighting, multipart lamp housing
  • Standard shaft rear with link guide
  • Close coupling between locomotive and tender
  • Perfectly replicated back boilerplate
  • Finest paintwork and printing
  • Lines and extra mounted parts in minimum material thickness
  • Extra mounted steps
  • Drive in the tender
  • Single axle bearing
  • True-to-scale details
  • Epoch-typical toe bearing
  • Many extra mounted parts
  • 1000 mm leading wheels
  • Cast discharge boxes on the cylinders
  • Valve gear holder in welded design
  • Tender 2'2' T34



NAVIGABLE MINIMUM RADIUS: The models of BR 01 are technically suitable for R 360. For best driving characteristics we recommend the use on R 420.

OVERVIEW OF TECHNICAL FUNCTIONS

Light change
Fire flickering
Driver cabin lighting 1) 1)
Engine lighting
Smoke generator
Digital interface PluX22 PluX22 PluX22 PluX22
Decoder
Sound

1) function only available in digital mode

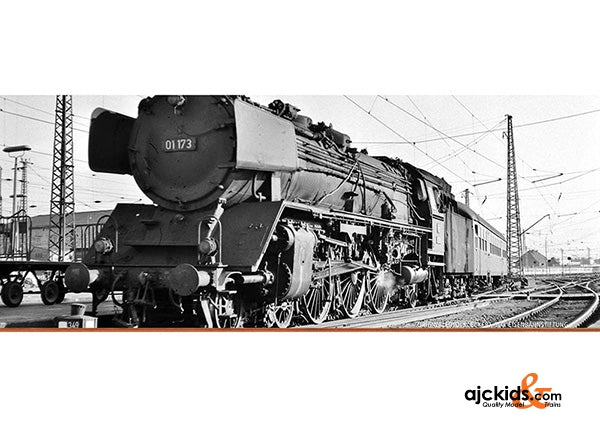

INFO ABOUT THE ORIGINAL

The Kassel-based Henschel Company delivered the 01 173 locomotive to the Göttingen P railway depot under the works serial number 22721 in 1936. In addition to the North-South route, the Göttinger 01 also operated
on routes to the west and east and turned around in Berlin and Osnabrück. The 01 173 was not in operation at the end of the war and its association to a railway depot is unknown. It was only restored in 1948
and then moved to Cologne operating railway station via Hagen Eckesey. Except for a brief loan to Osnabrück, it remained here for almost twenty years, although it was located at the Deutzerfeld railway depot from
1964. The “Cologne 01” vehicles travelled along the Rhine from Ludwigshafen and Mannheim to Arnhem and Hamm as well as to Kassel and Osnabrück. In 1967, the locomotive relocated to Hof, the last 01 stronghold.
It was here that the “Ulmer Eisenbahn Freunde e.V. (UEF)” [Ulm Railway Friends Association] noticed the locomotive in 1973. The association tried all Hofer 01 vehicles as part of their search for a larger club
steam locomotive. The locomotive’s good general condition saved it from the cutting torch. The UEF used it for numerous special train journey up until 1975 when it was replaced by a 01 1066 as a result of laborious
boiler work. Today, the 01 173 is owned by the “Freunde und Förderer des Deutschen Technikmuseums Berlin e.V.” [Friends and Sponsors of the German Museum of Technology, Berlin] and is currently being restored to
an operative condition under museum-based aspect in cooperation with the UEF Historischer Dampfschnellzug e.V. [UEF Historical Steam Express Train Association].

More Information

Manufacturer Brawa
Item 40905
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Era III
Railroad DB - German Bahn
UPC or EAN (GTIN) 4012278409054
