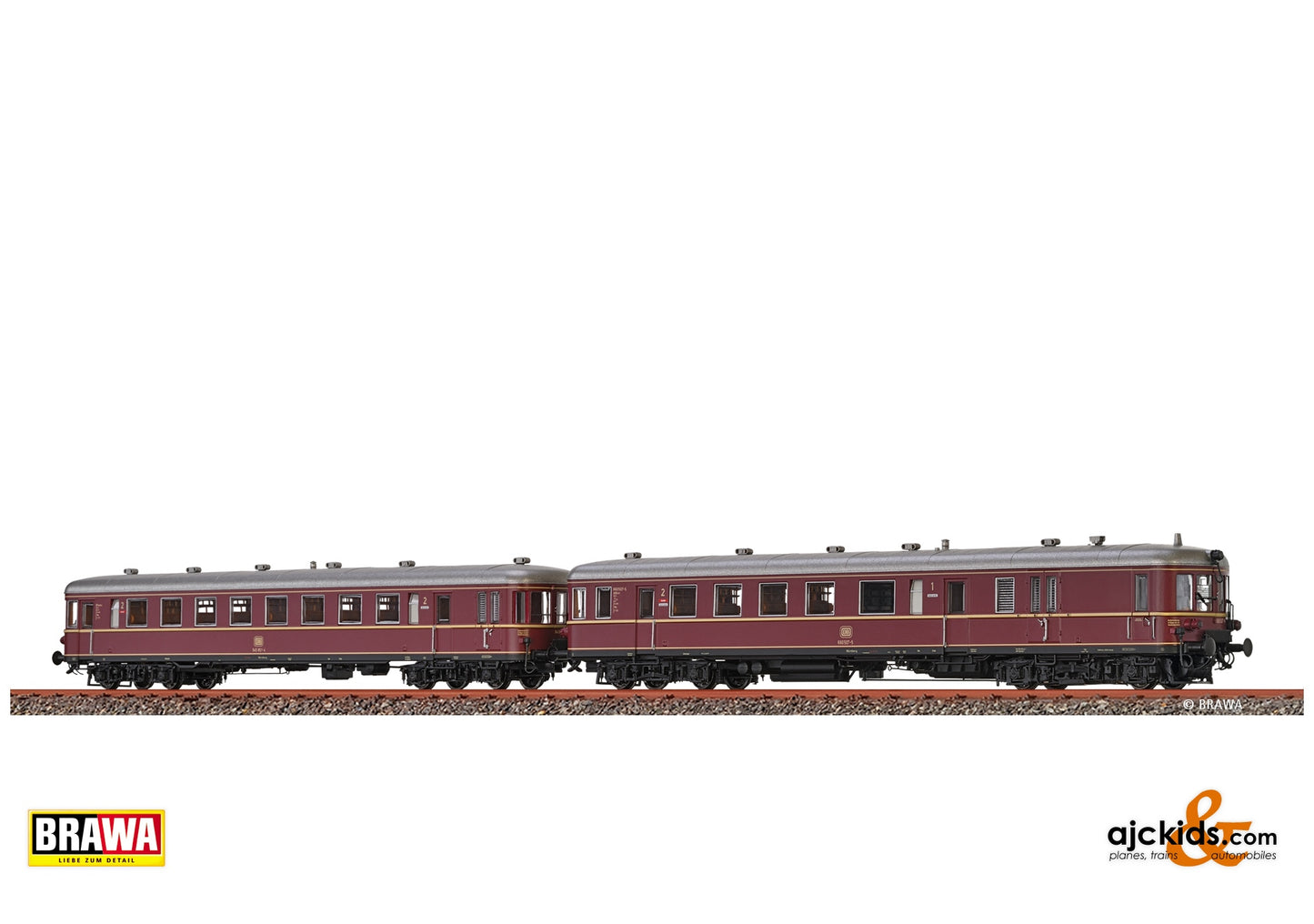

Brawa 44743 - H0 Diesel Railcar BR 660 and Trailer 945 DB

Skip to product information
1 of 1

Regular price $55545
Regular price $0.00 Sale price $55545
Sale Sold out
Shipping calculated at checkout.
This is a new item for 2024

Available to order, not in stock here (can email for estimate)

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4012278447438

System: 3-Rail AC (Märklin).

View full details

After the railcars were assumed by the recently-founded German Federal Railway (DB), several design changes were made in the 1950s in order to retrofit the vehicles that now bore the designation VT60.5 for the upcoming service period. At the Friedrichshafen repair centre, the engines were replaced with 330 HP MAN machines that were already used in small locomotives from service group III. The upholstering of the 3rd class which was upgraded to become 2nd class also increased passenger comfort. Furthermore, many railcars were equipped with modern DB lights during the 1960s in order to improve the view of the track and the conspicuous railcar lights from the National Railway era were removed. Colour changes were also made as the uniform purple for DB diesel vehicles replaced the old DR colour scheme. In contrast to the initial settlement, DB distributed their 31 VT60.5 vehicles to many more operating
locations. Consequently, the Rheine, Darmstadt, Stuttgart, Kassel, Frankfurt-Griesheim, Heilbronn, Nuremberg and Friedrichshafen railway depots became primary application locations. In doing so, six railcars were leased to the American occupying forces until 1960. As the vehicles aged, the inventory of the VT60.5 shrunk by the mid-1960s and the Rheine railway depot became the de facto discontinuation railway depot for the remaining railcars of the old
design belonging to DB. With a fleet of six vehicles, the inventory was the highest here at the start of the 1970s. Four more vehicles were stationed in Nuremberg and two further vehicles were also in service; one in Heilbronn and one in Kassel. These 12 vehicles, which were issued with the EDP-compliant 660 designation, were all removed from regular service by 1972. Converted to radio
measurement wagons, the former 660 506 and 660 531 remained in service
until 1979. Only the VT 60 531 exists today. Only three railcars - the 137 348,
137 366 and the 137 387 - remained in the Soviet occupation zone following
the war. They were utilised from the Aschersleben railway depot. However, all of
the railcars were removed from service by 1969 as a result of the poor availability of replacement parts. Alongside the 40 railcars, the procurement plan
also allowed for suitable VS145 control cars, particularly for the VT137 347
- 366 and 137 377 - 396. The wagons ordered in accordance with the CPost4ivS-
36 sketch boasted 76 spaces in 3rd class, a control compartment at the
front end and a post compartment at the rear end. As the control cars were
largely delivered at a different time to the VT, the intended combinations did
not materialise from the start. In fact, the liberal applicability was utilised to
deploy the VS with other VT designs. During the Federal Railway era, a total
of 10 VS145 vehicles were documented for 1952 and were primarily used
with the VT60.5. In contrast, the vehicles were also deployed with the VT36.5
or V36 in Bremen and Wuppertal. Now bearing the designation 945, the last
VT60.5 was discontinued at Rheine in 1972 together with the last VS145.

Model Details

  • Drive on two axles
  • Free standing steps
  • True to original bogies
  • Sharp engravings
  • Die-cast zinc drive unit
  • Multi-part interior fittings
  • True to original corrugated wheel discs
  • True to era lighting
  • Passenger compartment lighting


Length over the Buffers (LOB) 506 mm
Recommended Minimum Radius 360 mm
Decoder Interface PluX22
Traction Tires 2
Flywheel included
Directional Lights Triple Headlight & two red taillights with directional change-over
Detailed interior included
Interior Lighting included
Close Coupler Mechanism included
Sound included
Decoder (Döhler+Haass) included is an authorized Brawa Factory Direct Dealer for the USA.

EAN/UPC: 4012278447438
