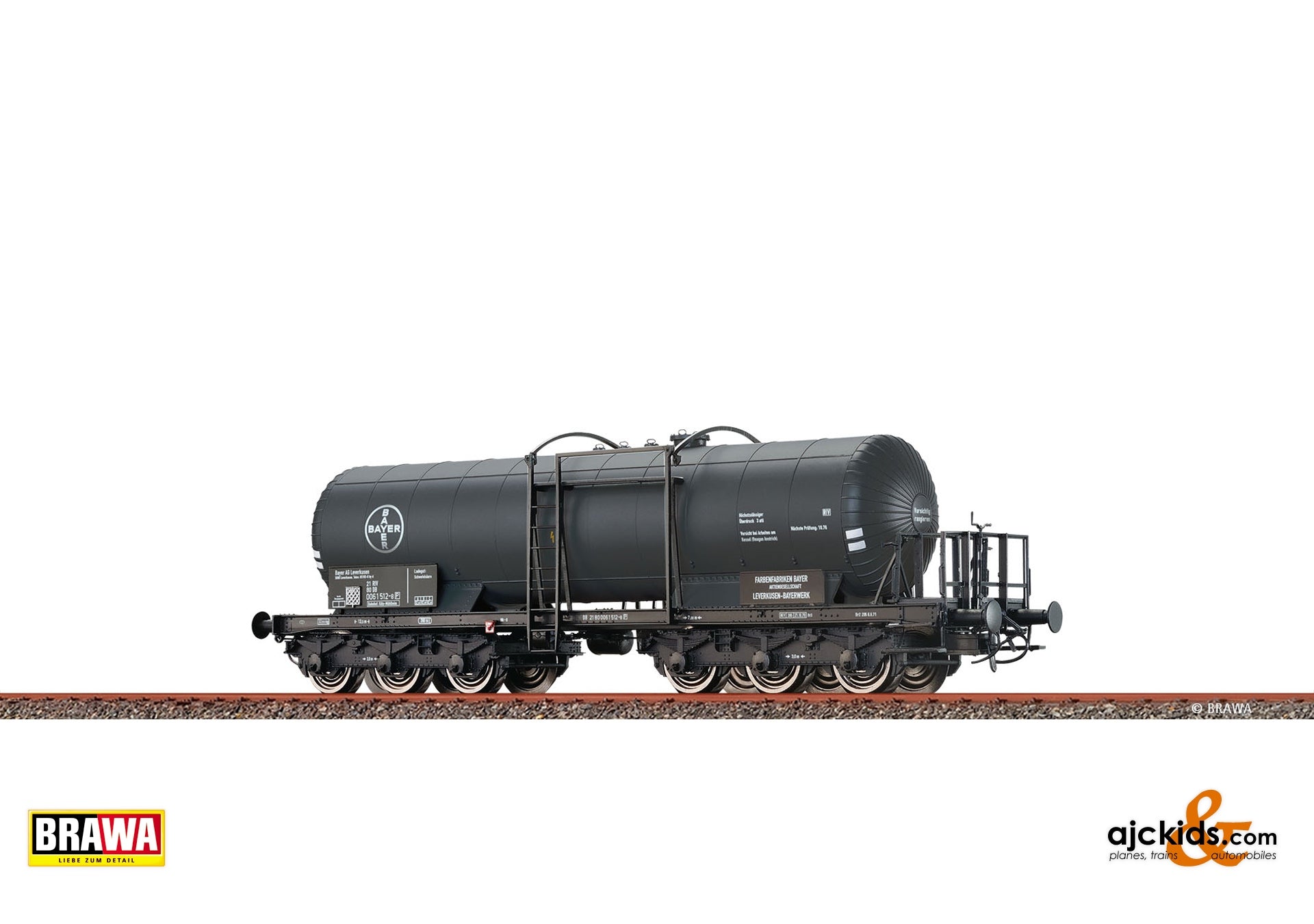

Brawa 58222 - H0 Tank Car 6-axle ZZ "Bayer" DB

Prototype

For the increasing requirements of the armaments industry and for other war-related transport, H. Fuchs Waggonfabrik A.G. in Heidelberg, for example, built six-axle cars to transport acids at the beginning of the 1940s. The cars had a riveted base frame and riveted bogies and were equipped with a handbrake and a Hildebrand-Knorr freight train brake. The tank was designed as a 10-section welded construction and had a 40 mm thick insulation as well as heating with connections to the end without the handbrake. At the handbrake end there was an intercommunication platform with a brakeman’s cab.

With a capacity of approximately 40 cubic metres, the tank was comparatively small.

Due to the distribution over six axles, however, the mean axle load was very low and the cars could also be used fully loaded on lines with a lighter superstructure. The tanks could only be filled and emptied from above, as with wagons for transporting acids floor valves were not permitted in those days. With the vehicles which were mostly used by the large factories of the chemical industry on the Deutsche Reichsbahn as private cars, their products were transported between the various locations.
Bogie with three-point support
Individually mounted wheelchocks
Individually mounted brake systems
Finely engraved bogies
Brake blocks in wheel plane
Free standing handle bars
Individually mounted axle brake rod
Length over buffers: 155 mm
Kurzkupplungskinematik: eingebaut
