ESU 51801 - SwitchPilot Extension

ESU 51801 - SwitchPilot Extension, 4x relay output, extension for SwitchPilot V1.0

  • $31.99
    Unit price per
Shipping calculated at checkout.

  Shows to be in stock at Ajckids

Add to Wishlist

Scale: All Scales

UPC or EAN: 4044645518014

Product Description

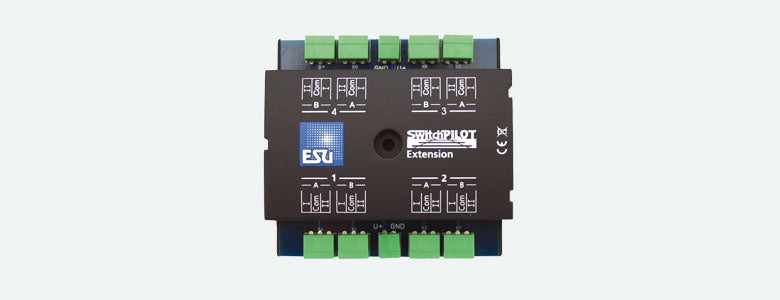

SwitchPilot Extension, 4x relay output, extension for SwitchPilot V1.0

If required, SwitchPilot can be augmented with the SwitchPilot Extension Module: Plugged in at the side of the SwitchPilot, it offers four relay-driven outputs, used for switching potential-free loads, or for polarizing the frog; the ideal supplement for tricky circuitry.

Modes of operation

The SwitchPilot Extension Module only works in conjunction with a SwitchPilot. Plugged in at the side, it gets its electrical power directly from the SwitchPilot. It contains a total of 4 Twin-Relays (2 x DPDT), of which each is dedicated to a pair of transistorized SwitchPilot outputs.

The respective relay’s switch position is directly dependent upon the state of this pair of outputs. With the relay’s help, loads can be switched, galvanically separated from the rest of the track (it functions like a k84), or a motorized turnout can be polarized.

With the relay’s 1.5 Amp continuous rating, either frogs can be polarized-, or blocks powered signal dependent, or motorized devices, such as (water) pumps may be switched. Especially intricate is the option to control motorized turnouts: Of course the SwitchPilot Extension Module easily handles the necessary motor polarization as well.

Operational modes: Accessory module for use with SwitchPilot. Supply through SwitchPilot. Control of Relay outputs by SwitchPilot module.

Outputs: 4 Relay outputs 2x UM (DPDT) equipped with terminal block for switching of potential-free loads or for polarizing the frog. Alternatively, each relay output could be used to reverse the polarity for motorized turnouts.

Dimensions: 95mm x 85mm x 22mm (3.74 inch x 3.35 inch x 0.87 inch)

Included: SwitchPilot Extension Module, detailed instruction manual

ESU 51801 Instructions: You can download the Instruction Manual for ESU 51801 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer ESU
Item 51801
Scale All Scales
Availability   Shows to be in stock
UPC or EAN (GTIN) 4044645518014

Instruction Manual Download

You can download the Instruction Manual for ESU 51801 as a .pdf file here:

 ESU 51801 Instruction Manual
