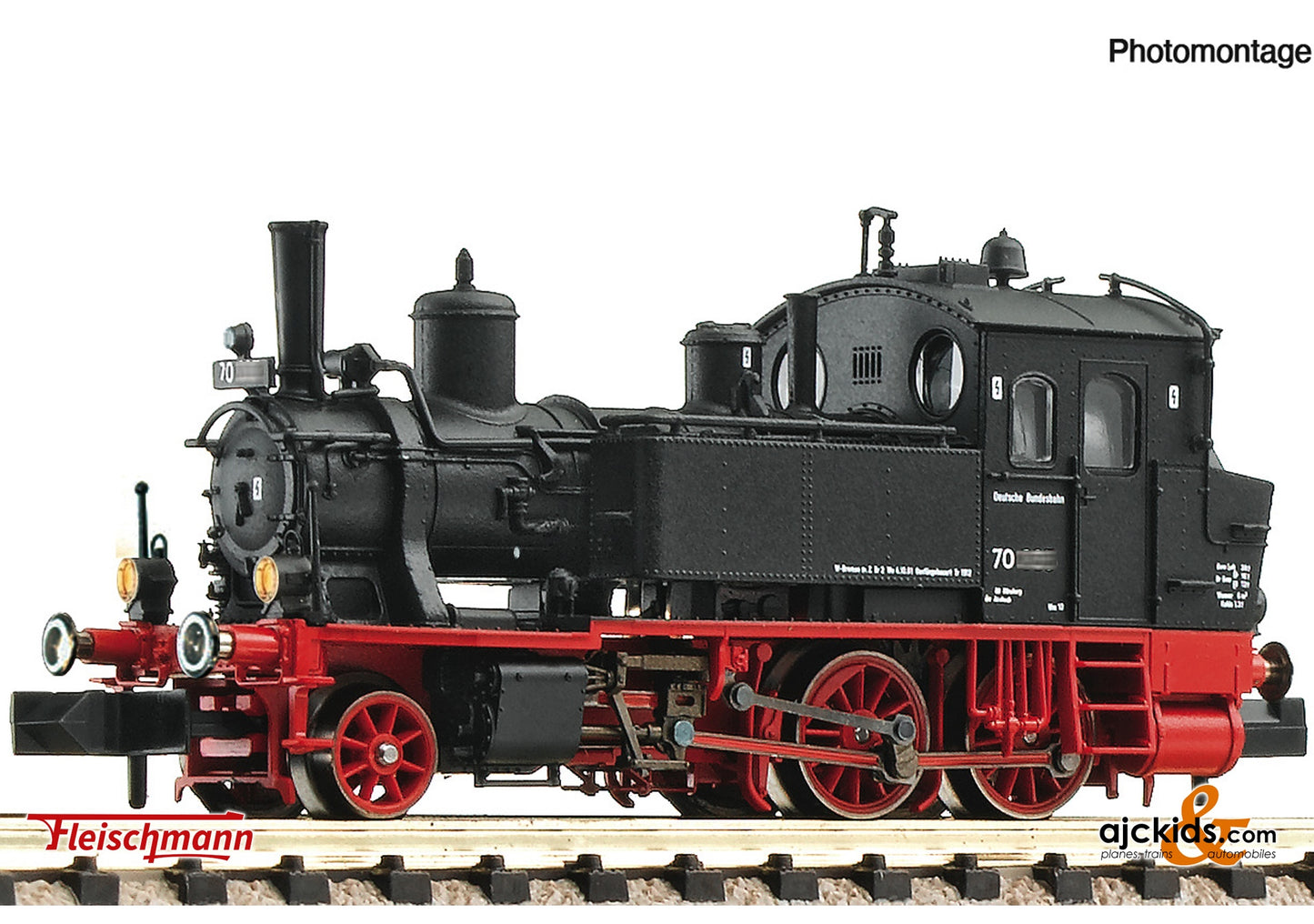

Fleischmann 7170010 - Steam Locomotive class 70.0, DB (DCC)
Steam locomotive class 70.0 (Bavarian Pt 2/3) of the German Federal Railway.
■ Model with a tightly soldered decoder built-in from factory
■ Finely-detailed model with springy beam chassis
■ Metal die-cast housing
■ Ideal for use on branch lines
The class 70.0 was a tender locomotive for light passenger trains. It was commissioned by the Royal Bavarian State Railways as the type Pt 2/3. Between 1909 to 1916, a total of 97 locomotives were constructed by Krauss in Munich. In order to optimise traffic on the local railways, a door was installed at the rear through which the stoker could enter the train to take over the conductor's duties. The doors were later partially removed to make room for a larger coal box. The unusually large distance between the driving and running axles of 4,000 mm is characteristic of this locomotive. It results in an economical but also economically expedient lightweight engine construction which proved outstanding in its design.
After the Second World War, the DB took over 89 of these locomotives, which were able to reach top speeds of up to 65 km/h, and used them on south German branch lines until the 1960s. The last locomotive was phased out in 1963.
Features
Coupling | NEM shaft 355 without close coupling mechanism |
Minimum radius | 192 mm |
Flywheel | yes |
Number of driven axles | 2 |
Scale | N-Scale |
Era | III |
Railway Company | DB |
Headlight | Direction dependent dual headlights |
LED Headlight | yes |
Control | 2L - Digital |
Digital decoder | DCC |
Length over buffer | 58 mm |
