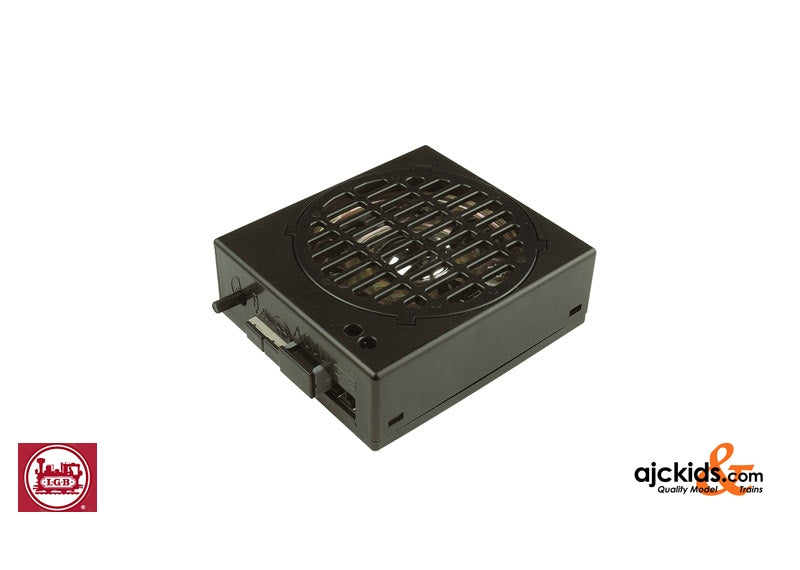

LGB 65003 - American Diesel Sound Module

Now you can add digital sound to your LGB locomotive! This module combines electronics, volume control, and a speaker all in one, compact box (60 x 68 x 23 mm / 2-3/8” x 2-11/16” x 7/8”).

It’s small enough to fit easily into most LGB freight and passenger cars or in the cab of many LGB locos. Just connect two wires to track power or to a locomotive general-purpose socket, and you’re ready to enjoy digital LGB sound. This unit offers an authentic steam chuff sound. With the LGB Multi-Train System, you can activate by remote control additional sounds like bell, whistle, brake sounds, and station announcements. All LGB Sound Units are equipped with a Multi-Train System sound decoder and are thereby ready for MTS operation. In analog operation the standing sounds power supply unit (LGB 65011) can be added so that you can the sounds made by the locomotive when it is stopped. The sound module function activation unit (LGB 65012) can be added so that bell and whistle sounds can be activated by means of track magnets.

Note: LGB sound modules are specially designed for easy, do-it-yourself installation in a car or a locomotive cab.

Functions

You can equip your LGB locomotives very easily with the sound module. The sound module comes equipped with a sound decoder for the LGB multi-train control system. It can be used as it comes from the factory on analog layout or with the multi-train control (digital) system.

The module has the following:

• a built-in multi-train control system sound decoder for analog and digital operation
• digital electronic sound
• a built-in speaker
• an external volume controller
• remote operation of the sound functions (with the multi-train control system / in digital operation)
• dimensions: 60 mm x 68 mm x 23 mm

Charlie's Tip: Here are the sound functions of the different available LGB Sound Modules:

65000 European Steam Sound Module

• 1: Whistle
• 2: Brake sounds
• 3: Bell
• 4: Announcement: “Einsteigen bitte!“ (“All aboard!“), conductor‘s whistle
• 5: Air compressor
• 6: Sound of coal being shoveled
• 8: Sound off/on

65001 American Steam Sound Module

• 1: “Railroad Grade Crossing“ whistle pattern
• 2: Brake sounds
• 3: Bell
• 4: Announcement: „All aboard!“
• 5: Air compressor
• 6: Sound of coal being shoveled
• 8: Sound off/on

65002 European Diesel Sound Module

• 1: Horn
• 2: Brake sounds
• 3: Bell
• 4: Announcement: “Einsteigen bitte!“ (“All aboard!“), conductor‘s whistle
• 5: Compressor
• 6: Diesel motor off/on
• 7: Pressure relief valve
• 8: Sound off/on

65003 American Diesel Sound Module

• 1: “Railroad Grade Crossing“ whistle pattern
• 2: Brake sounds
• 3: Bell
• 4: Announcement: “High ball, John!“
• 5: Evacuating the brake lines
• 6: Diesel motor off/on
• 7: Warning bell
• 8: Sound off/on

65004 European Electric Locomotive Sound Module

• 1: Whistle
• 2: Brake sounds
• 3: Sound of the pantograph
• 4: Announcement: “Einsteigen bitte!“ (“All aboard!“), conductor‘s whistle
• 5: Compressor
• 6: Turning off appliances: main blower motor off, vacuum pump, main relay
• 8: Sound off/on
