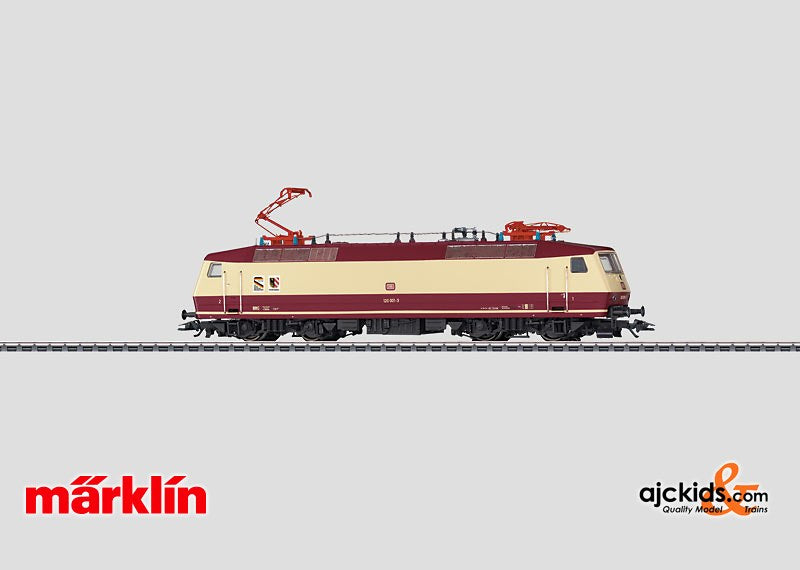

Marklin 37485 - Electric Locomotive BR 120.0

Marklin 37485 - Electric Locomotive BR 120.0


  • $346.35
    Unit price per
Shipping calculated at checkout.

This product is sold out at the factory

  Shows to be in stock at Ajckids

Only 1 left in stock at Ajckids!
Add to Wishlist

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Gauge: H0    Era: IV

Prototype: German Federal Railroad (DB) class 120.0 express general-purpose locomotive. Pre-production version in the original paint scheme.

Model: The locomotive has an mfx digital decoder, controlled high-efficiency propulsion, and factory-installed, controllable sound functions. 2 axles powered. Traction tires. The headlights are maintenance-free LEDs. The headlights will work in conventional operation and can be controlled digitally. The engineer's cab lighting, the sound effect of a whistle, and the acceleration and braking delay can be controlled digitally. The engineer's cabs have interior details. The locomotive has separately applied grab irons.

Length over the buffers 22.1 cm / 8-11/16".

Highlights:

  • Engineer's cab lighting included.
  • Locomotive whistle sound included.

Prototype information

The Three-Phase Current Pioneer. The class 120 marked the technological change to three-phase current propulsion. This principle promised compact motors largely free of parts that would wear out, without commutators, commutator rings, brushes, and mechanical contacts. Because a wide torque range and rpm range can be mastered with three-phase current technology, the performance specifications for this new development were broadly formulated.

The class 120 was designed to pull 200 km/h or 125 mph fast InterCity trains and 5,400 metric ton freight trains and be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units, which were thoroughly tested on test stands, on test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking power, power consumption, and stability were part of these tests. Comparison tests with other makes of locomotives as well as startup tests on the Lötschberg and Semmering grades confirmed the effectiveness of the technology.

The speed record was 265 km/h or 165 mph. During the test phase, new developments were introduced, for example: microprocessors for faster monitoring and control. Components were constantly improved until all five units were technically at the same level in 1982 and were ready for regular production.

During the several years of development the purchasing policy changed, however. Instead of all-round locomotives, special locomotives were once again preferred on the basis of common development platforms with many parts in common. Therefore, only the first production run of 60 units of the class 120 were purchased. The five prototypes, to which the prototype of our model also belongs, continue to be used for test purposes.

Features

) Metal frame and locomotive body.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system.
e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
h Built-in sound effects circuit.
N Triple headlights and two red marker lights that change over with the direction of travel.
i Power supply can be switched to operated from catenary.
T Märklin close couplers in standard pocket with pivot point.
4 Era 4

Warning

ATTENTION: not for children under 3 years
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Engineer’s cab lighting X X X X X
Station Announcements X X X X X
Horn X X X X X
Direct control X X X X X
Marklin 37485 Instructions: You can download the Instruction Manual for Marklin 37485 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37485
Scale H0-Scale (1:87)
Availability   Shows to be in stock
Country Germany
Era IV
Railroad DB - German Bahn
Railroad DB - German Bahn AG
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883374857

Instruction Manual Download


You can download the Instruction Manual for Marklin 37485 as a .pdf file here:

 Marklin 37485 Instruction Manual
