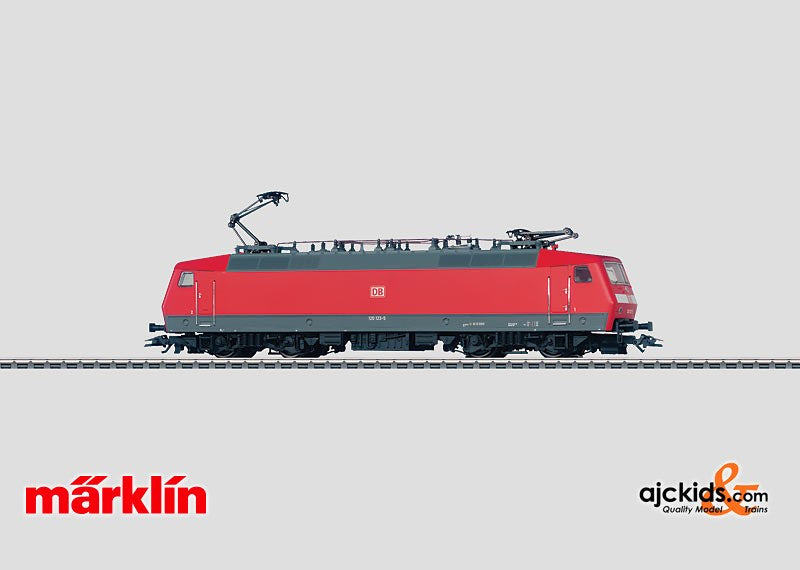

Marklin 37539 - Electric Locomotive BR 120.1

Marklin 37539 - Electric Locomotive BR 120.1


No longer Available

  • Sold Out

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: German Railroad Inc. (DB AG) class 120.1 general-purpose locomotive. Regular production version.

Highlights:

  • Engineer's cabs with interior details and lighting.
  • All of the lights are maintenance-free, warm white LEDs.
  • Digital sound: locomotive whistle and station announcements.



Model: The locomotive has an mfx digital decoder and comes from the factory with sound functions that can be turned on and off. It also has controlled high-efficiency propulsion. 2 axles powered. Traction tires. The headlights are maintenance-free, warm white LEDs. They will work in conventional operation and can be controlled digitally. The engineer's cab lighting can also be controlled digitally. The locomotive has separately applied grab irons.

Length over the buffers 22.1 cm / 8-11/16".



Prototype information

The Three-Phase Pioneer. The class 120 marked the technological breakthrough to three-phase current propulsion systems. This principle carried with it the promise of compact, largely non-wearing motors without commutators, wear rings, brushes, and mechanical contacts. Because a broad range of torque and speed could be mastered with three-phase current technology, the performance specifications for this new development were formulated rather like a long wish list.

The class 120 was intended to pull 200 km/h / 125 mph fast InterCity trains and 5,400 metric ton freight trains, and was also to be equipped with push/pull controls and electric regenerative brakes. In 1977, the DB ordered five experimental units that were exhaustively probed on test stands, during test runs, and in operational use. Startup, tractive effort, acceleration, running characteristics, braking performance, power requirements, and stability under a load were part of the program.

Comparison tests with other makes of locomotives as well as start-up tests on the Lötschberg and Semmering grades confirmed the performance capabilities of the technology. The speed record was 265 km/h / 166 mph. New developments flowed in during the experimental phases such as microprocessors for faster control and monitoring. Components were improved again and again until all five units were brought to the same technical level in 1982 and were pronounced ready for regular production.

During the development phase of several years the procurement policy changed. Instead of all-round locomotives, special locomotives were again preferred on the basis of common development platforms with many parts identical in construction. Only a first production run of 60 units of the class 120 was purchased. The prototypes continue to be used for test purposes, and the regular production locomotives prove themselves in daily operation.

Features

) Metal frame and locomotive body.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system.
e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
h Built-in sound effects circuit.
N Triple headlights and two red marker lights that change over with the direction of travel.
i Power supply can be switched to operated from catenary.
T Märklin close couplers in standard pocket with pivot point.
5 Era 5

Warning

ATTENTION: not for children under 3 years
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Engineer’s cab lighting X X X X X
Station Announcements X X X X X
Horn X X X X X
Direct control X X X X X
Marklin 37539 Instructions: You can download the Instruction Manual for Marklin 37539 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37539
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Railroad DB - German Bahn
Railroad DB - German Bahn AG
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883375397

Instruction Manual Download


You can download the Instruction Manual for Marklin 37539 as a .pdf file here:

 Marklin 37539 Instruction Manual
