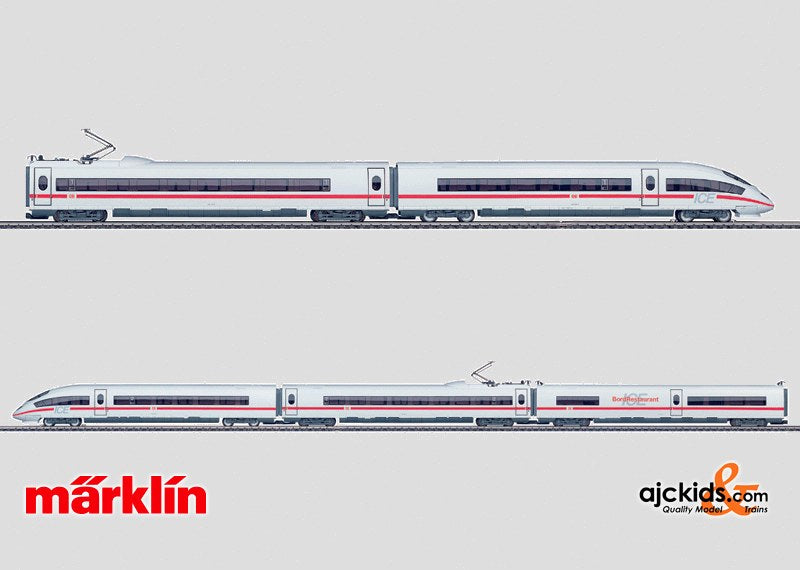

Marklin 37783 - ICE 3 Rail Car Train

Marklin 37783 - ICE 3 Rail Car Train in H0 Scale


No longer Available

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: German Railroad, Inc. (DB AG) class 403 ICE 3 high speed powered rail car train. 1 type 403.0 end car. 1 type 403.1 transformer car. 1 type 403.3 dining car. 1 type 403.6 transformer car. 1 type 403.5 end car.



Highlights

  • Prototypical roof arrangement.
  • Scale length.
  • Comes from the factory with interior lighting.
  • Motor comes with a flywheel.
  • Open view into the cockpit.
  • Direction-dependent power pickup in the end car at the front of the train.




Model: 5-part version. The train comes with a digital decoder, high-efficiency propulsion, and long-distance headlights. 2 axles powered. 4 traction tires. The engineer's cabs in the end cars have interior details. Direction-dependent power pickup in the end car at the front of the train. Special close couplers with guide mechanism. The interior lighting is supplied with power by means of a continuous electrical connection through the entire train. The pantographs are only mechanically functional, they do not function electrically. The headlights / marker lights together with the interior lighting will work in conventional operation and can be controlled digitally. The direction-dependent long-distance headlights as well as the acceleration and braking delay can be controlled digitally with the 6021 Control Unit. Train length 142.2 cm / 56".

Prototype information

The class 406 designates those ICE trains that are used as four-system trains, particularly in cross border passenger service. The class 403 by contrast is designed as a single system train for operation with 15,000 volts at 16 2/3 hertz.

These trains are authorized to travel at speeds up to 330 km/h or 206 mph, and they shorten travel times especially on the newly constructed routes. Externally, they differ from the class 406 in the arrangement of the pantographs and the roof arrangement. The 8-part unit has a total length of 200 meters or 656 feet 2 inches with seating for 415 passengers. The weight of the train when not loaded is 409 metric tons.

Features

c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system.
d Digital decoder with additional, digitally controlled functions (f1, f2, f3 or f4) when operated with the 6021 Control Unit. The functions present depend on how the locomotive is equipped. Standard function (function) active during conventional operation.
E Dual headlights that change over with the direction of tavel.
N Triple headlights and two red marker lights that change over with the direction of travel.
k Built-in interior lighting.
j Built-in interior details.
5 Era 5

Warning

ATTENTION: adults only
Marklin 37783 Instructions: You can download the Instruction Manual for Marklin 37783 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37783
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Railroad DB - German Bahn
Railroad DB - German Bahn AG
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883377834

Instruction Manual Download


You can download the Instruction Manual for Marklin 37783 as a .pdf file here:

 Marklin 37783 Instruction Manual
