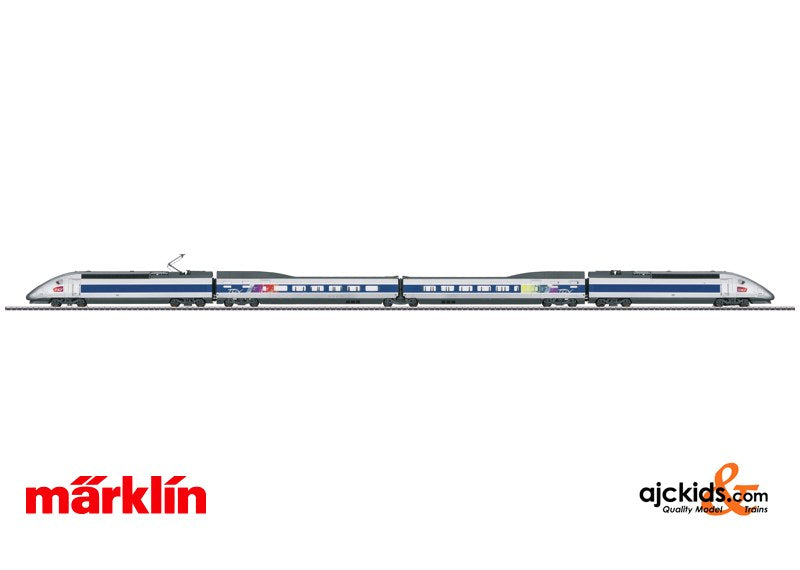

Marklin 37796 - TGV POS High-Speed Train

Marklin 37796 - TGV POS High-Speed Train in H0 Scale


No longer Available

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: French State Railways (SNCF) TGV POS (train à grande vitesse) high-speed train, in the version for service between Paris and Southern Germany. 2 powered end cars, 1 transition car (R1), 1st/2nd class, 1 transition car (R8), 2nd class. Powered rail car road number 4415. The train looks as it did in 2012.

Model: The train is a 4-part set. Both end cars (TK1 and TK2) are powered. The train has an mfx digital decoder and extensive sound functions. It has controlled, high-efficiency propulsion in both powered end cars, centrally mounted. 4 axles powered through cardan shafts in each end car. Traction tires. The train has factory-installed interior lighting. The triple headlights and dual red marker lights change over with the direction of travel. They and the interior lighting will work in conventional operation and can be controlled digitally. The third headlight for the French headlight code can be turned off separately in digital operation (light function). The headlights and interior lighting are maintenance-free, warm white LEDs and the marker lights are maintenance-free red LEDs. The train has separately applied, working windshield wipers in each cab, and they can be controlled separately in digital operation in the respective cabs (switching function F/R). The cabs in the powered end cars have interior details. The train has separately applied metal grab irons. A powered end car and a transition car are permanently coupled together in pairs and have special close couplings with a guide mechanism. There is an additional guide mechanism in the Jakobs truck. The transition cars have roof hoods. The end cars have a pickup shoe changeover feature so that the pickup shoe at the front of the train is the one picking up power. The interior lighting is powered through a continuous electrical connection through the entire train. Each powered end car has 2 different design single-arm pantographs. The pantographs work mechanically but are not wired to take power. The train is a scale reproduction.

The minimum radius for operation is therefore 360 mm / 14-3/16", when there is sufficient clearance on both sides.

Length of the 4-part set 101 cm / 39-3/4".


Highlights:

  • Scale 1:87 reproduction.
  • Working windshield wipers, can be controlled digitally.
  • Factory-installed LED interior lighting.
  • Extensive sound functions.
  • Both end cars powered.
  • New roof hoods on the transition cars.


Released in: New items brochure 2015

Prototype information

The French railroad SNCF purchased the "Train à Grande Vitesse Paris - Ostfrankreich Südwestdeutschland" (TGV POS) for high-speed service between Paris, Eastern France (Strasbourg), and Southern Germany. The core of the TGV POS was initially the new construction of the high-speed route, which was planned to connect Strasbourg better with Paris. A trip of four hours was simply no longer tolerable if the railroad was to compete effectively with people driving cars. The new route with a maximum speed of 350 km/h / 218.75 mph was planned to be 430 kilometers / 269 miles long and make connections to Nancy, Reims, Luxembourg, and Basle. The TGV Est trains were planned to travel at 350 km/h / 218.75 mph. On May 9, 2000, the DB AG and the SNCF agreed on standardization of cross-border cars and powered units, routes, and signals. Due to the short time plan and several disagreements there was no common high- speed train. Instead, a mixed operation of ICE and TGV was planned. Both trains had to pass a great many test runs in the two countries in order to receive permission for operation. The TGV POS is not really a generation of cars and powered units that has been developed totally from scratch. The TGV POS is more a mix of new powered end cars and intermediate cars from the TGV Réseau.

The new powered end cars are mechanically very similar to those of the TGV Thalys PBKA (Paris - Brussels - Cologne / Amsterdam). The electrical equipment for three current systems (25 kilovolts / 50 Hertz as well as 1.5 kilovolts DC in France, 15 kilovolts / 16-2/3 Hertz in Germany and Switzerland) is being done for the first time using asynchronous technology with IGBT-controlled three-phase asynchronous motors. Two pantographs are located on the roof. The one with a contact strip 1,650 mm / 64-15/16" wide is used for 25 kilovolts / 50 Hertz in France and in Switzerland; the second one with a contact strip 1,950 mm / 76-3/4" wide and metallic plated carbon contact strips is used in Germany. In France, the 1,950 mm / 76-3/4" pantographs on both powered end cars must be up under the 1.5 kilovolt catenary due to the high level of current.

The intermediate cars come from the TGV Réseau. However, they were extensively modernized and brought up to the latest technical standard at the workshops in Bischheim; they therefore differ strikingly from the other generations of TGV trains. A train set consists of two powered end cars and eight intermediate cars. The intermediate cars are connected to each other by means of Jakobs trucks and thereby form an operational unit. Five intermediate cars (one with a bar) are intended for passengers in 2nd class and three intermediate cars are for 1st class. The approximately 200 meter / 656 foot TGV POS has seating for 360 passengers.

Nineteen units have been purchased with the road numbers 4401 to 4419, whereby road number 4406 was sold recently to the SBB. In France, the trains are allowed to run at a maximum speed of 320 km/h / 200 mph; in Germany the maximum speed allowed on the high speed routes is 250 km/h / 156 mph. TGV road number 4402 is a special train. Its powered end cars along with three modified intermediate cars set a new, unbelievable speed record for rail vehicles as World Record Train V150 at noon on April 3, 2007 on the route LGV Est. In 13 minutes, this train accelerated to 574.8 km/h / 359.25 mph.

Features

/ Metal locomotive frame.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system.
e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
h Built-in sound effects circuit.
N Triple headlights and two red marker lights that change over with the direction of travel.
+ Built-in LED interior lighting.
j Built-in interior details.
8 Era 6
| 1:87
Y

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Interior lights X X X X X
Light Function X X X X X
Electric locomotive op. sounds X X X X X
Horn X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
On/off function F/R X X X X
On/off function F/R X X X X
Whistle for switching maneuver X X X X
Doors Closing X X X
Conductor's Whistle X X X
Station Announcements X X X
Stat. Announce. - Fren. X X X
Marklin 37796 Instructions: You can download the Instruction Manual for Marklin 37796 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 37796
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country France
Era VI
Railroad SNCF - National French Railways
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883377964

Instruction Manual Download


You can download the Instruction Manual for Marklin 37796 as a .pdf file here:

 Marklin 37796 Instruction Manual
