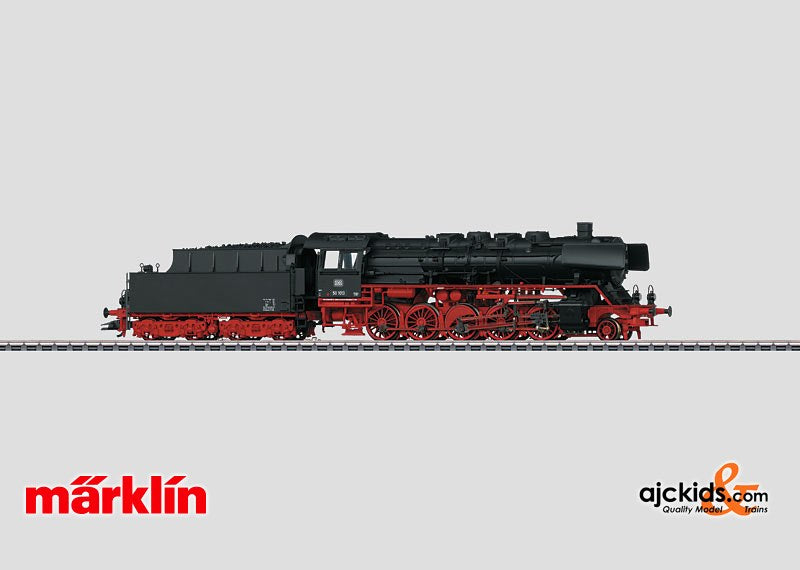

Marklin 37810 - Freight Steam Locomotive BR 50 (Sound)
Scale: H0-Scale, 3-Rail AC (for Marklin)
UPC or EAN: 4001883378107
System: AC 3-Rail for Marklin
Gauge: H0 Era: III
Prototype: German Federal Railroad (DB) class 50 freight train steam locomotive, with a coal tender as a standard design type 2'2'T26 box-style tender in its original design. With Witte smoke deflectors, standard engineer's cab, long walkway that is angled at the front to the smoke box, DB Reflex glass lanterns, and an inductive magnet on one side. Road number 50 1013. The locomotive looks as it did around 1965.
Model: The locomotive has an mfx digital decoder and extensive sound functions. It has controlled high efficiency propulsion with a bell-shaped armature and a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the tender are constructed mostly of metal. A 7226 smoke generator can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke generator contact will work in conventional operation and can be controlled digitally. The headlights are maintenance-free, warm white LEDs. There is a close coupling with a guide mechanism between the locomotive and tender and it can be adjusted for curves. The front of the locomotive and the back of the tender has a close coupler in an NEM pocket with a guide mechanism. Minimum radius for operation is 360 mm / 14-3/16". Piston rod protectors and brake hoses are included.
Length over the buffers 26.4 cm / 10-3/8".
|Smoke generator contact||·||·||·||·|
|Steam locomotive op. sounds||·||·||·||·|
|Sound of squealing brakes off||·||·||·|
|Whistle for switching maneuver||·||·||·|
|Letting off Steam||·||·||·|
|Sound of coal being shoveled||·||·|
- Completely new tooling.
- Especially finely detailed metal construction.
- Partially open bar frame and many separately applied details.
- High-efficiency propulsion with a bell-shaped armature, mounted in the boiler.
- A variety of operating and sound functions that can be controlled digitally.
The class 50 locomotive came into being shortly before the start of World War II as the last of the so-called "standard design steam locomotives". In April of 1937 the Reich Transportation Ministry (RVM) charged the German State Railroad Central Office (RZA) with the design of a powerful freight locomotive for branch lines, among other things, as a replacement for the class 57.10-40 (Prussian G 10) 0-10-0 freight steam locomotives. It had to be able to pull a medium weight train on flat terrain, negotiate curves with a radius of 140 meters / approximately 460 feet, and be usable with about a 15 metric ton wheel load on branch lines with less than ideal roadbed. A suitable maximum speed appeared to be 80 km/h / 50 mph. Since many end terminals had no turntable or one that was too short, this locomotive had to be able to go at the same speed in both directions. For that reason a protective wall was planned for the tender to protect the locomotive crew when running in reverse. The RZA initially planned a 2-8-0 locomotive (class 46) because no faith was placed in a 2-10-0 design for the required high speed in reverse and the necessary tractive effort. The required wheel loads could not be reached with a 2-8-0 design, so the design remained with a locomotive with 5 driving axles and a pilot truck. From April to July of 1939 Henschel delivered the first twelve locomotives with a steel firebox, alloy steel for the boiler plating, a two-cylinder, super heated steam running gear layout with a Wagner super heater as well as 232 pounds per square inch boiler excess pressure. The class 50 that came out of this was soon destined to become the German State Railroad's most successful design, because this locomotive with its approximately 1,600 horsepower and 80 km/h / 50 mph speed quickly became a general-purpose, sturdy, reliable unit.
The outbreak of war on September 1, 1939 caused a leap in the demand for freight locomotives, and the twelve pre-production locomotives were followed by another 3,152 units over the course of the next few years. Almost all of Europe's locomotive builders participated in the construction of these units. Like the class 44, the class 50 was also simplified in steps during the course of World War II, so that starting in 1942 locomotives were delivered as the class 50 ÜK. Over 300 units were so simplified in the end that, although they were planned as the class 50, they were designated as the war class 52. Despite numerous losses to the war, after 1945 there were almost 3,000 locomotives on the two German railroads alone. The East German DR had over 317 after giving up and retiring a quantity, and the DB had more than 2,000 units. The DB units were at home all over the German Federal Republic. They were equipped with Witte smoke deflectors, and the running board skirting was removed on most units. Starting in 1961 the tenders on 730 locomotives were equipped with engineer's cabs as part of a rationalization and updating of service and operations. This did limit the coal capacity to 6.6 metric tons. With the lower weight these locomotives became more multifaceted in their use and replaced tank locomotives on many branch lines. With the introduction of computer numbers starting in 1968 the class 50 became the classes 050-053. They were among the last steam locomotives on the German Federal Railroad and were in use until 1977.
Charlie's Tip: A freight car set to go with this freight steam locomotive can be found under item no. Marklin 46080.
This model can be found in a DC version in the Trix H0 assortment under item no. Trix 22780.
Released in: New items brochure 2012
This item is currently out of stock.
|Railroad||DB - German Bahn|
|System||3-Rail AC (for Marklin)|
|UPC or EAN (GTIN)||4001883378107|
Instruction Manual Download
You can download the Instruction Manual for Marklin 37810 as a .pdf file here:
Marklin 37810 Instruction Manual
