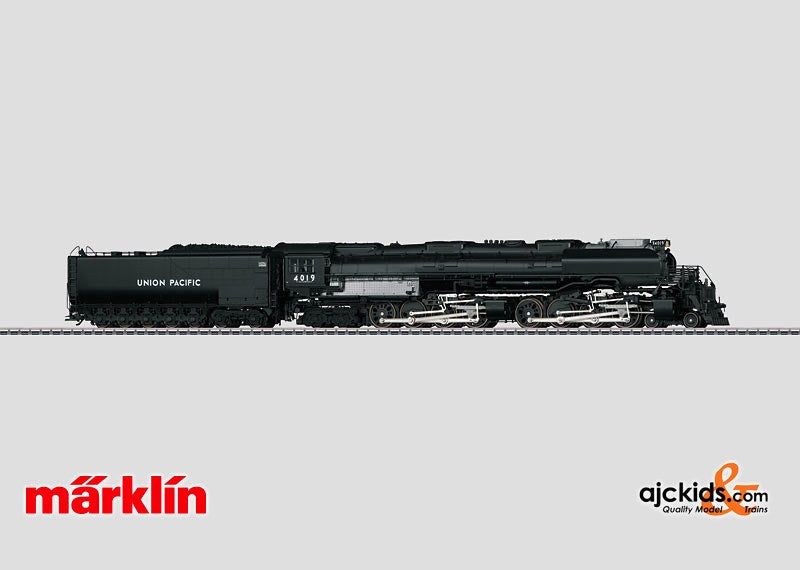

Marklin 37994 - Steam Locomotive with Tender 4019 Big Boy

Marklin 37994 - Steam Locomotive with Tender 4019 Big Boy in H0 Scale


No longer Available

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Gauge: H0 Era: III    sold out at factory

Prototype: Union Pacific Railroad (UP) class 4000 "Big Boy" heavy freight locomotive. Version with the road number 4019 as equipped with smoke deflectors. In the winter of 1944/45 this unit had smoke deflectors installed on it as an experiment.

Model: The locomotive has an mfx digital decoder and a sound generator. It also has controlled high-efficiency propulsion, a powerful motor. 8 axles powered. Traction tires. The locomotive has an articulated frame enabling it to negotiate sharp curves. It also has Boxpok driving wheels. The middle driving axles are spring-loaded. The headlight, backup light on the tender, and the number board lights are maintenance-free, warm white LEDs. 2 smoke generators (Seuthe no. 11) can be installed in the locomotive; the contacts for them are on constantly.

Marklin

The headlight, backup light on the tender, the number board lights, and the engineer's cab lighting will work in conventional operation and can be controlled digitally. There is a powerful speaker in the tender and the volume can be adjusted. Coupler hooks can be inserted in the pilot on the front of the locomotive. There is a close coupling between the locomotive and tender. Steam lines are mounted to swing out and back with the cylinders. The locomotive has separately applied metal grab irons. There are many separately applied details. Figures of a locomotive engineer and fireman for the engineer's cab are included.



Marklin



Length over the couplers 46.5 cm / 18-5/16".

The locomotive comes in a wooden case.

  Control
Unit
Sx Mobile
Station
DCC Mobile
Station 2
Central
Station
Headlight(s) ·   ·   · ·
Smoke generator contact ·   ·   · ·
Steam locomotive op. sounds ·   ·   · ·
Locomotive whistle ·   ·   · ·
Direct control ·   ·   · ·
Engineers cab lighting     ·   · ·
Bell     ·   · ·
Warning Sound     ·   · ·
Sound of squealing brakes off     ·   · ·
Air Pump         · ·
Injectors         · ·
Auxiliary Blower         · ·
Sound of Couplers Engaging         · ·
Rail Joints         · ·
Operating Sounds 2         · ·
Cab Radio         · ·



Marklin



Highlights:

  • Spectacular version with smoke deflectors.
  • Detailed tooling changes to the locomotive and tender.


The Union Pacific Railroad (UP) class 4000 known as the "Big Boy" is surely one of the most popular steam giants in America if not worldwide. These articulated locomotives with their 4-8-8-4 wheel arrangement had their origin in 1941 at ALCO from the continuation of the "Challenger" concept, extremely successful UP articulated steam locomotives with a 4-6-6-4 wheel arrangement. The conception of the "Big Boys" resulted from the usual requirements as with all the other American classes of large locomotives. Fewer locomotives were expected to pull heavier loads with higher speeds. Basically the UP bought the 25 units for only one single route: From Cheyenne, Wyoming 830 kilometers / 519 miles westwards through the foothills of the Rocky Mountains over Sherman Hill to Ogden, Utah. Before the pass named after General William T. Sherman is a long grade of about 50 kilometers / 31 miles from Cheyenne with a maximum climb of 1.5 percent. In the opposite direction the 105 kilometer / 66 mile long grade of 1.14 % through the Wasatch Range of the Rocky Mountains demands it tribute. The result was a gigantic machine with a service weight of 548 tons (including the tender). An attempt was made to reach an equal distribution of the weight with the 4-8-8-4 wheel arrangement that had not been built up to then. With a grate area of almost 14 square meters / 150.70 square feet and a superheating surface of 229 square meters / 2,464 square feet the Big Boys had a continuous power rating of 6,290 horsepower at the couplers. Boiler performance of over 10,000 horsepower or 8,200 electrical horsepower was recorded. The assigned range of duties for the "Big Boys" was fast freight service. They were capable of pulling 4,000 ton trains over the mountain passes without help. The new locomotive had a design speed of 128 km/h or 80 mph that it reached with only 1.7 meter / 66-15/16" diameter driving wheels. This put it in the ranks of the fastest articulated steam locomotives. But, these units were not allowed to thunder through this part of the West at this speed in regular service. Locomotive engineers confirmed however that speedometer often showed more than the allowed 112 km/h / 70 mph when they were running late.



According to the legend these giants acquired the nickname "Big Boy" from a young worker who scribbled the name on the smoke box shortly before the locomotive was presented. Officials from ALCO and UP liked this so much that "Big Boy" was even used in the advertising for the locomotive. On average these units consumed 47,200 liters or 12, 469 gallons of water and 22 tons of coal per hour. Of course, a fireman would have been overwhelmed if he had had to feed one of these ravenous beasts with a shovel. A stoker moved coal from the tender to the locomotive by means of a screw in a pipe and sprayed it into the fire box with steam pressure. The fireman adjusted the distribution of the coal in the fire box by controlling the steam pressure. In the fall of 1945 the UP decided to equip a "Big Boy" with smoke deflectors as an experiment in order to keep the smoke out of the engineer's and fireman's eyes. In the beginning of December 1945 the "Big Boy" with road number 4019 had smoke deflectors installed on it at the maintenance center in Green River, Wyoming. The tests were finished on January 20, 1946 and these "large ears" were removed again in Green River. The tests had shown that at lower speeds in freight service and with recently improved blowers the smoke could be routed ever better over the engineer's cab and without smoke deflectors. The Big Boy era was definitively past in July of 1959 when the fires in all of the units were banked for good. The hope of many railroad fans to see road numbers 4003 and 4019 (stored in operational condition as reserve locomotives in 1960) thundering one more time over Sherman Hill sadly did not come to pass. At least eight of the steam locomotive giants were preserved but not in operational condition.

Notes for operating the locomotive: The locomotive can be used on curved track with a radius of 360 mm / 14-3/16" or more, however we recommend larger radii. Signals, catenary masts, bridge railings, tunnel portals, etc. must be installed for sufficient clearance on curves. The track must be well mounted due to the heavy weight of the locomotive. The locomotive can only be run through a turntable or transfer table.

Products bearing "Union Pacific" are made under trademark license from the Union Pacific Railroad Company. We would like to thank the Union Pacific Historical Society for their support in making this version of the Big Boy possible.

This model can be found in a DC version in the Trix H0 assortment under item no. Trix 22115.


Released in: New items brochure 2012
