Marklin 39044 - Class 42 Heavy Steam Freight Locomotive with a Tub-Style Tender

Skip to product information
1 of 1

$0.00
Regular price Sale price $000
Sale Sold out
Shipping calculated at checkout.

Sold out, discontinued at Marklin

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883390444

System: 3-Rail AC (Märklin).

View full details

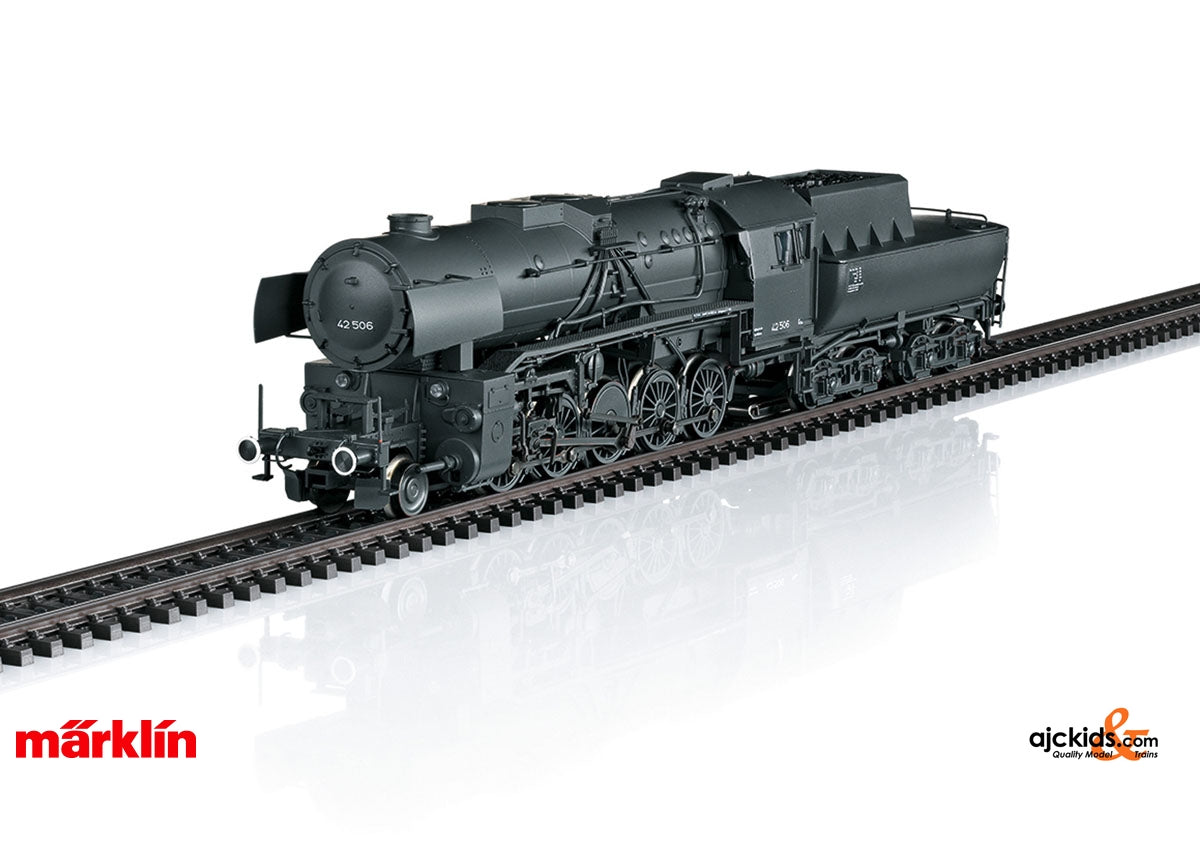

Prototype: German State Railroad Company (DRG) class 42 heavy steam freight locomotive with a type 2´2´T30 tub-style tender. Dark gray basic paint scheme. With standard design Witte smoke deflectors, pilot truck wheel set with solid wheels, both lower headlights in the front of the locomotive built into the cylinder block. No smokebox access step below the smokebox door. Locomotive road number 42 506. The locomotive looks as it did around 1944.

Highlights:

  • Prototypical tooling changes for the version as a German State Railroad locomotive.
  • Frost protection cladding on the air pump and lubrication lines included.
  • Rail clearance devices with large scoops.
  • Especially finely modelled metal construction.
  • mfx+ World of Operation digital decoder and a variety of operation and sound functions included.

Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the tub-style tender are constructed mostly of metal. A 7226 smoke unit can be installed in the locomotive. The double headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting can be controlled in digital operation. Maintenance-free warm white LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. The rear of the tender and the front of the locomotive have close couplers with NEM pockets and guide mechanisms.

The minimum radius for operation is 360 mm / 14-3/16".

Protective piston sleeves, brake hoses, and imitation prototype couplers are included.

Length over the buffers 26.4 cm / 10-3/8".

The type Erz IId four-axle hopper cars for transporting iron ore go well with this locomotive and can be found in the Märklin H0 assortment under item number Marklin 46230 as a 12-car set with different car numbers. Another 6 cars can be found in the Trix H0 assortment under item number Trix 24122 with different car numbers and with information about the required AC wheel sets.

This model can be found at ajckids.com in a DC version in the Trix H0 assortment under item number 22225.

Class 42 Heavy Steam Freight Locomotive In World War II there was already discussion in 1941 about a wartime steam locomotive with an 18 metric ton axle load, the boiler of the class 44, and the running gear of the class 50 for use on lines in the Eastern March (Austria) and the occupied areas in Russia. Two projects were finally favored from the 20 project suggestions for this so-called "Third Wartime Steam Locomotive" (KDL 3). After that, 8,000 units (a little later reduced to 5,000) were to be built of the class 42. Finally, the "Design" steering committee determined the following quantities: 2,500 locomotives with a stay bolt boiler and a bar frame, 1,150 locomotives with a Brotan boiler and a sheet metal frame, and 650 locomotives with a Brotan boiler and a condensation tender. Henschel delivered the first two units in 1943 with a Brotan boiler and the road numbers 42 0001 and 42 0002. Schwartzkopff built the first locomotive with a stay bolt boiler in 1944 as road number 42 501. The class 42 units were a completely new design compared to the predecessor class 52 wartime locomotives derived from the class 50. Externally they had the simple construction of the wartime locomotives with an enclosed cab and only one side window, simple Degenkolb smoke deflectors, and solid wheels on the pilot truck. Yet they offered a striking appearance with the lanterns built into the cylinder block and the short running boards falling to the cylinders. The dome arrangement and the dome sheathing was also unusual. The originally planned quantities were not achieved because of the war. The industry delivered all total 865 of these 80 km/h / 50 mph fast and approximately 1,800 horsepower units. Subsequent production after World War II in Poland and Vienna-Floridsdorf increased the quantity in the end to 1,063 units. In the western zones, there were still 701 locomotives left, many of them not operational however. The DB distanced itself rather quickly from them. The last was put into storage on March 27, 1956. Yet with the incorporation of Saarland in 1957, class 42 units came back to the DB roster. Up until October of 1962, they were used mostly in the greater Saarbrücken area to pull ore trains and in heavy pusher service. In the neighboring country of Luxembourg road number 5519 (planned as 42 2718, built in 1948 in Vienna-Floridsdorf) is still in existence as the last operational unit of this class and it is used for special runs under steam.



Features

( Metal frame and mostly locomotive body.
# mfx+ digital decoder
§ DCC decoder
h Built-in sound effects circuit.
E Dual headlights that change over with the direction of tavel.
U Märklin close couplers in standard pocket with guide mechanism.
2 Era 2
Y

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Smoke generator contact X X X X X
Steam locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Engineer’s cab lighting X X X X
Whistle for switching maneuver X X X X
Letting off Steam X X X X
Sound of coal being shoveled X X X
Tipping grate X X X
Air Pump X X X
Water Pump X X X
Injectors X X X
Replenishing fuel X X X
Rail Joints X
Sanding X
Replenishing fuel X
Generator Sounds X
Generator Sounds X
Sound of Couplers Engaging X
"Switcher Double ""A"" Light" X

EAN/UPC: 4001883390444
