Marklin 39234 - Passenger Locomotive with a Tender

Marklin 39234 - Passenger Locomotive with a Tender in H0 Scale


No longer Available

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

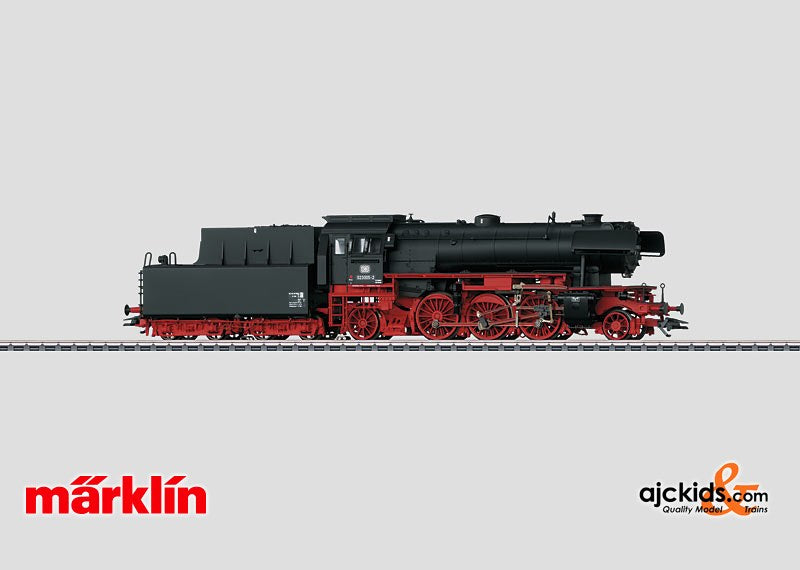

 Prototype: German Federal Railroad (DB) class 023 passenger steam locomotive with a tender. Road number 023 005-2. The locomotive looks as it did around 1972.
Model: The locomotive has an mfx digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, in the boiler. 3 axles powered. Traction tires. The triple headlights change over with the direction of travel. The headlights and the smoke generator that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The headlights are maintenance-free, warm white LEDs. A 7226 smoke generator can be installed in the locomotive. The locomotive and tender are constructed mostly of metal. There is a close coupling with a guide mechanism between the locomotive and the tender. The front of the locomotive and the back of the tender have a close coupler with a guide mechanism and an NEM coupler pocket. Minimum radius for operation is 360 mm / 14-3/16". Brake hoses and piston rod protection sleeves are included as detail parts. Length over the buffers 24.5 cm / 9-5/8".

  Control
Unit
Sx Mobile
Station
DCC Mobile
Station 2
Central
Station
Headlight(s) ·   ·   · ·
Smoke generator contact ·   ·   · ·
Steam locomotive op. sounds ·   ·   · ·
Locomotive whistle ·   ·   · ·
Direct control ·   ·   · ·
Sound of squealing brakes off     ·   · ·
Whistle for switching maneuver     ·   · ·
Letting off Steam     ·   · ·
Sound of coal being shoveled         · ·
Grate Shaken         · ·
Air Pump         · ·
Injectors         · ·
Special Function         · ·
Marklin 39234 Instructions: You can download the Instruction Manual for Marklin 39234 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 39234
Scale H0-Scale (1:87)
Availability   Shows to be in stock
Country Germany
Era IV
Railroad DB - German Bahn
Railroad DB - German Bahn AG
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883392349

Instruction Manual Download


You can download the Instruction Manual for Marklin 39234 as a .pdf file here:

 Marklin 39234 Instruction Manual
