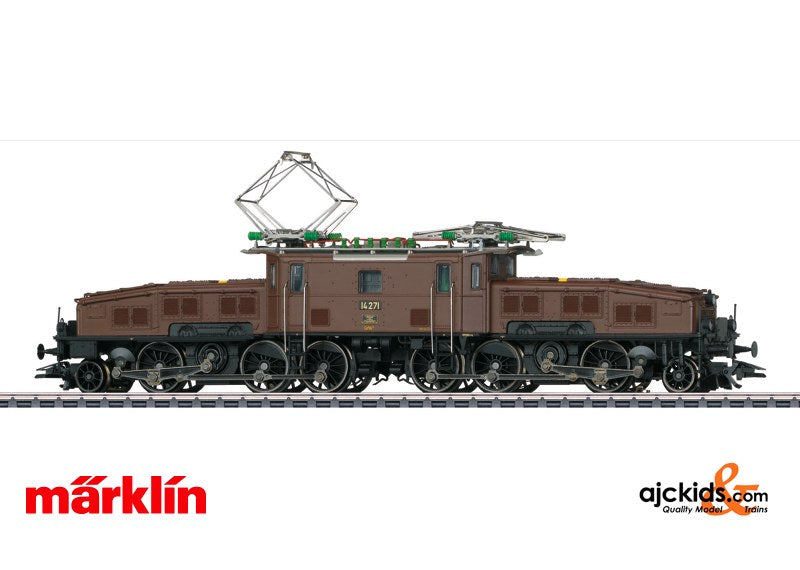

Marklin 39566 - Crocodile Electric Locomotive

Marklin 39566 - Crocodile Electric Locomotive in H0 Scale


No longer Available

Scale: H0-Scale (1:87)

System: 3-Rail AC (for Marklin)

Product Description

Prototype: Swiss Federal Railways (SBB) class Ce 6/8 II "Crocodile" freight locomotive. Design from the first production series. Dark brown basic paint scheme, with older design buffers, crossover plates at the ends, small switching steps and grab irons, with sanding equipment, without an oncoming train light and without an inductive magnet. The locomotive looks as it did around 1930.

Highlights

  • Highly detailed metal construction.
  • Locomotive powered with 2 high-efficiency propulsion systems, each with a flywheel.
  • New sanding equipment.
  • World of Operation mfx+ digital decoder and extensive operating and sound functions included.
  • For even more operating enjoyment in the "World of Operation".

Product

Model: The locomotive has the new mfx+ digital decoder and extensive sound functions. 2 controlled high-efficiency propulsion systems with flywheels, 1 motor for each powered truck. 3 axles and jackshaft powered in each powered truck. Traction tires. The locomotive frame is articulated to enable the locomotive to negotiate sharp curves. The triple headlights and 1 white marker light (Swiss headlight / marker light code) change over with the direction of travel, will work in conventional operation, and can be controlled digitally. When the locomotive is running "light" the lighting can be changed to 1 red marker light. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has highly detailed metal construction with many separately applied details. The sanding equipment is located between the two groups of driving wheels. The locomotive body comes in 3 parts with hoods that swing out separately. The roof equipment is detailed with safety grills beneath the pantographs.

Length over the buffers 22.3 cm / 8-3/4".

Product info

This model can be found in a DC version in the Trix H0 assortment under item number 22953.

Publications

- New items brochure 2015 - Product programme 2015/2016 - Product programme 2016/2017

Features

) Metal frame and locomotive body.
c Digital locomotives with high-efficiency propulsion. Maximum speed and acceleration / delay are adjustable. Special motor with electronically enhanced load compensation or a compact bellshaped armature. Can be operated with Märklin transformers, in the Märklin Delta system or in the Märklin Digital system. One controllable auxiliary function (function), when the locomotive is being run in the Digital system.
# mfx+ digital decoder
h Built-in sound effects circuit.
P Triple headlights and a white marker light that change over with the direction of travel.
O Triple headlights and a red marker light that change over with the direction of travel.
i Power supply can be switched to operated from catenary.
T Märklin close couplers in standard pocket with pivot point.
2 Era 2
Y ATTENTION: adults only

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Marker light(s) X X X X X
Electric locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Direct control X X X X X
Sound of squealing brakes off X X X X
Whistle for switching maneuver X X X X
Sound of Couplers Engaging X X X X
Letting off Air X X X
Blower motors X X X
Brake Compressor X X X
Pantograph Sounds X X X
Marklin 39566 Instructions: You can download the Instruction Manual for Marklin 39566 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 39566
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Switzerland
Era II
Railroad SBB - Swiss Federal Railways
System 3-Rail AC (for Marklin)
UPC or EAN (GTIN) 4001883395661

Instruction Manual Download


You can download the Instruction Manual for Marklin 39566 as a .pdf file here:

 Marklin 39566 Instruction Manual
