Marklin 43801 - Commuter Car Silberling in Red

Skip to product information
1 of 1

$0.00
Regular price Sale price $000
Sale Sold out
Shipping calculated at checkout.

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4001883438016

System: 3-Rail AC (Märklin).

View full details

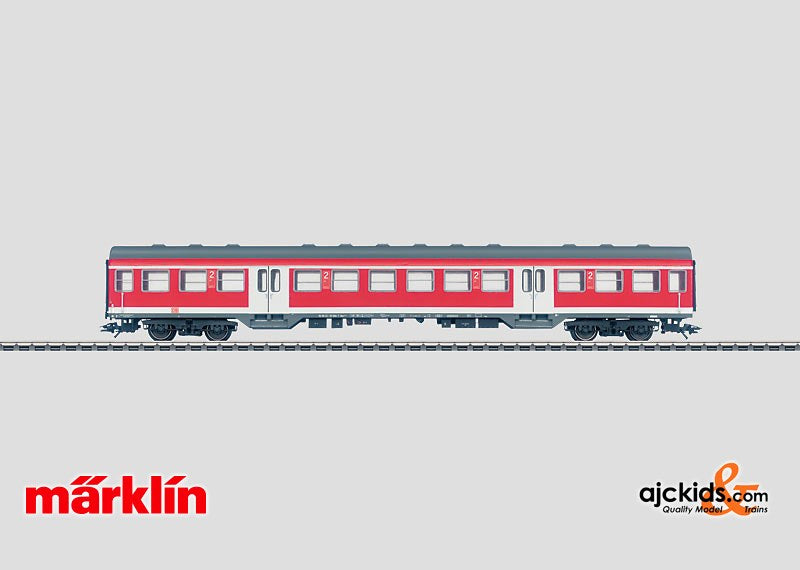

 Prototype: German Railroad, Inc. (DB AG) commuter car, 2nd class (type Bnrz 450.3). "Silberling / Silver Coin" design in the "traffic red" commuter paint scheme with a steep roof. Car no. 50 80 22-35 966-7.



The minimum radius for operation is 360 mm / 14-3/16". The underbody is specific to the type of car. The trucks come with disk brakes. The car is ready for installation of the 7319 current conducting couplings or the 72020/72021 current conducting couplers, the 73406 pickup shoe, the 73400/73401 lighting kit (2 per car), and the 73409 marker light kit. Length over the buffers 28.2 cm / 11-1/8". DC wheel set 4 x 700580.


Product info
The typical Era V DB AG push/pull train consists of a 43811 car, several 43801 cars, and a 43830 cab control car. The "Silberlinge / Silver Coins" cars in the Era V commuter service paint scheme are available with different car numbers in the Trix H0 assortment under item nos. 23431, 23432, and 23433. The ideal push/pull locomotive is the class 141 (item no. 39041 for Märklin).

Prototype information
The "Silberlinge / Silver Coins" - A DB Success Story. The German Federal Railroad car designated as "Silberling / Silver Coin" is a car adhering to the UIC-X guidelines. It is 26.4 meters / 86 feet 7-3/8 inches long and has 2 entry areas with double doors. The name derives from the car bodies constructed of polished stainless steel. The car group "n", the official designation for the "Silberling", was purchased in a group of 5,000 units between 1961 and 1980 and in different designs. For a long time it was the most numerous car in commuter service on the DB. Depending on the design, these cars tip the scales at 31-40 metric tons and are authorized for a maximum speed of 120-140 km/h / 75-88 mph. The pure 2nd class car has seating for 96, in the mixed class car there is seating for 30 in 1st class and for 46 in 2nd class. The German Federal Railroad placed different cab control cars into service for push/pull operation, which was often done with the class E 41/141. The "Rabbit Hutch", a cab control car with extremely cramped space for the locomotive engineer was replaced by the later "Karlsruher Kopf" type cab control car. This cab control car also had a baggage area, but more importantly a modern, generously arranged engineer's cab. The name derives from the maintenance facility in Karlsruhe, where the cab control cars were rebuilt. The "Silberling" was a universal car, from commuter service to express train, even used as reserve cars in Inter-Zone trains to Berlin. The "n" cars had steam, diesel, and electric locomotives for motive power, and, like many other DB cars, were run in different paint schemes. However, although they have been ignored in mint green, "traffic red", or countless forms of Graffiti, they have remained the "Silberlinge" in popular usage. Presently, these cars are in used on the DB AG in the "traffic red" paint scheme, and similar classes based on the construction principles for the "Silberlinge" can be found in Luxembourg, the Netherlands, and Poland, for example.

EAN/UPC: 4001883438016
