Scale: 1-Scale

EAN/UPC:

System: 3-Rail AC (Märklin).

View full details

The Württemberg T18
Conceived originally in 1911 for faster handling of passenger train service on the Isle of Rügen, built as the class T 18 (later class 78) in its symmetrical construction with three coupled wheel sets, two trucks, large fuel and water containers and a maximum speed of 100 km/h / 62.5 mph in both directions, one of the most successful German tank locomotives. Realized in an impressive highly detailed series of the arguably most successful locomotive classes that ever ran in Germany.

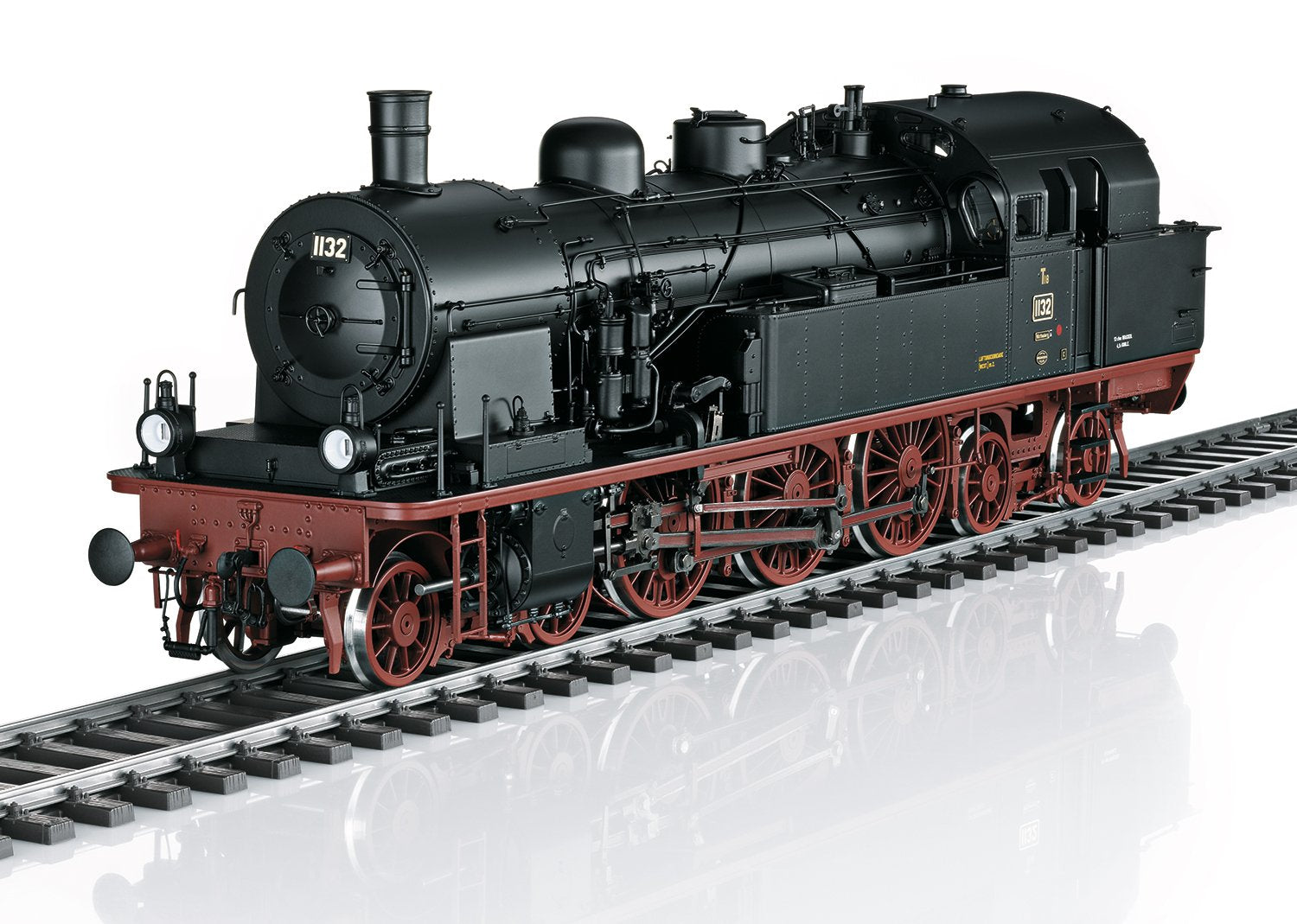

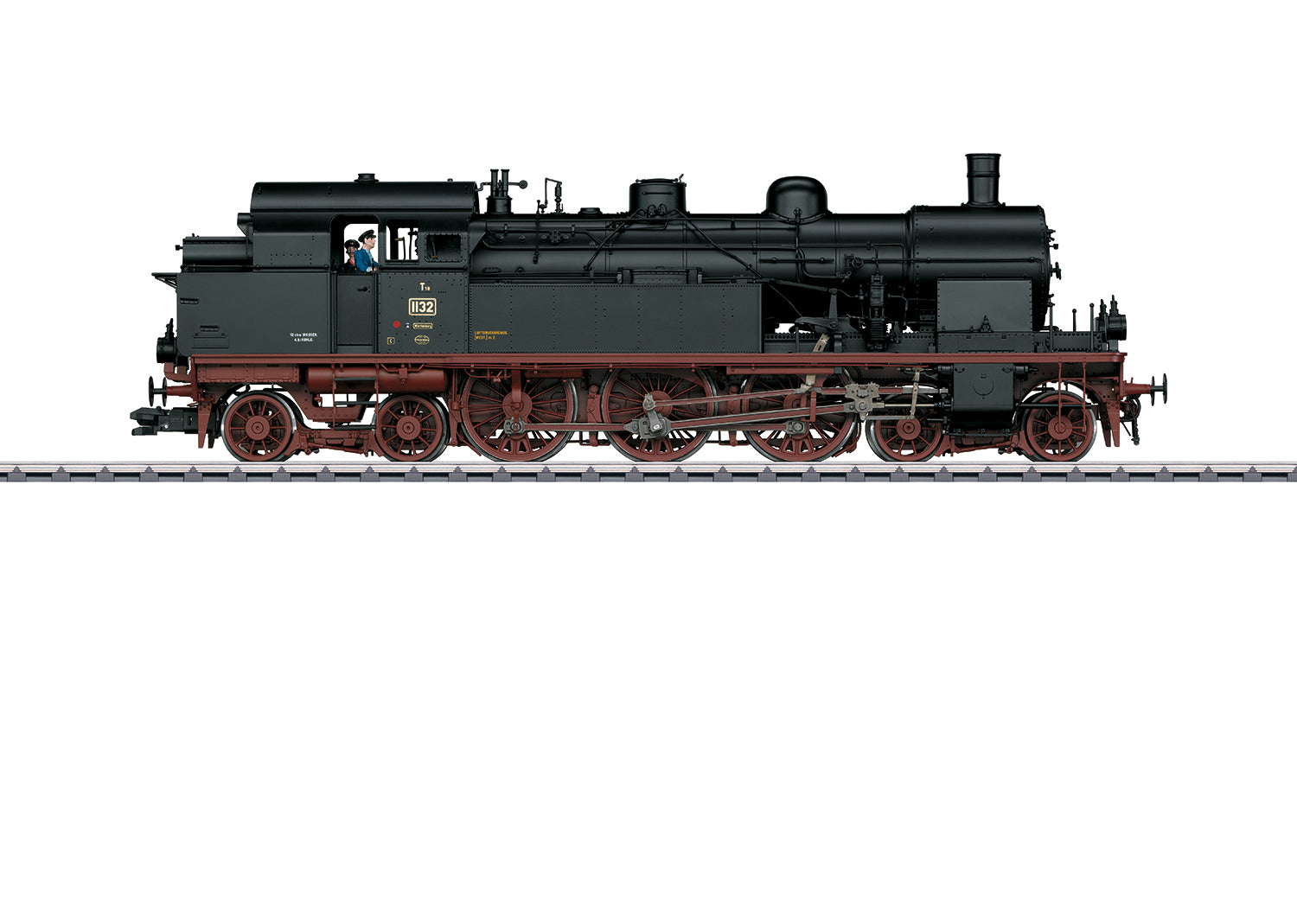

Prototype: Royal Württemberg State Railroad (K.W.St.E.) class T18 steam tank locomotive. The locomotive looks as it did around 1919. Road number Württemberg 1132.

Highlights

  • Completely new tooling.
  • Highly detailed full metal construction.
  • Frame, superstructure, boiler, etc. constructed of die-cast zinc.
  • Newly developed decoder generation with a current buffer and up to 32 functions.
  • Smoke generator with steam chuffing synchronized to the wheels, cylinder steam, and a steam whistle.
  • Load-controlled running sounds synchronized to the wheels.
  • Smoke box door and dome hatches can be opened, many original details included.
  • Headlights include light color correct for the era and warm white LEDs.
  • Red marker lights can be controlled.
  • Firebox flickering is two colors.
  • Cab lighting.
  • mfx decoder for operation with AC power, DC power, Märklin Digital, and DCC.
  • Valve gear switchover (forward, reverse, continuous operation) in 3 steps with a servomotor.
  • Telex coupler on the rear, prototype coupler on the front (an extra one of each included with the locomotive).

Product

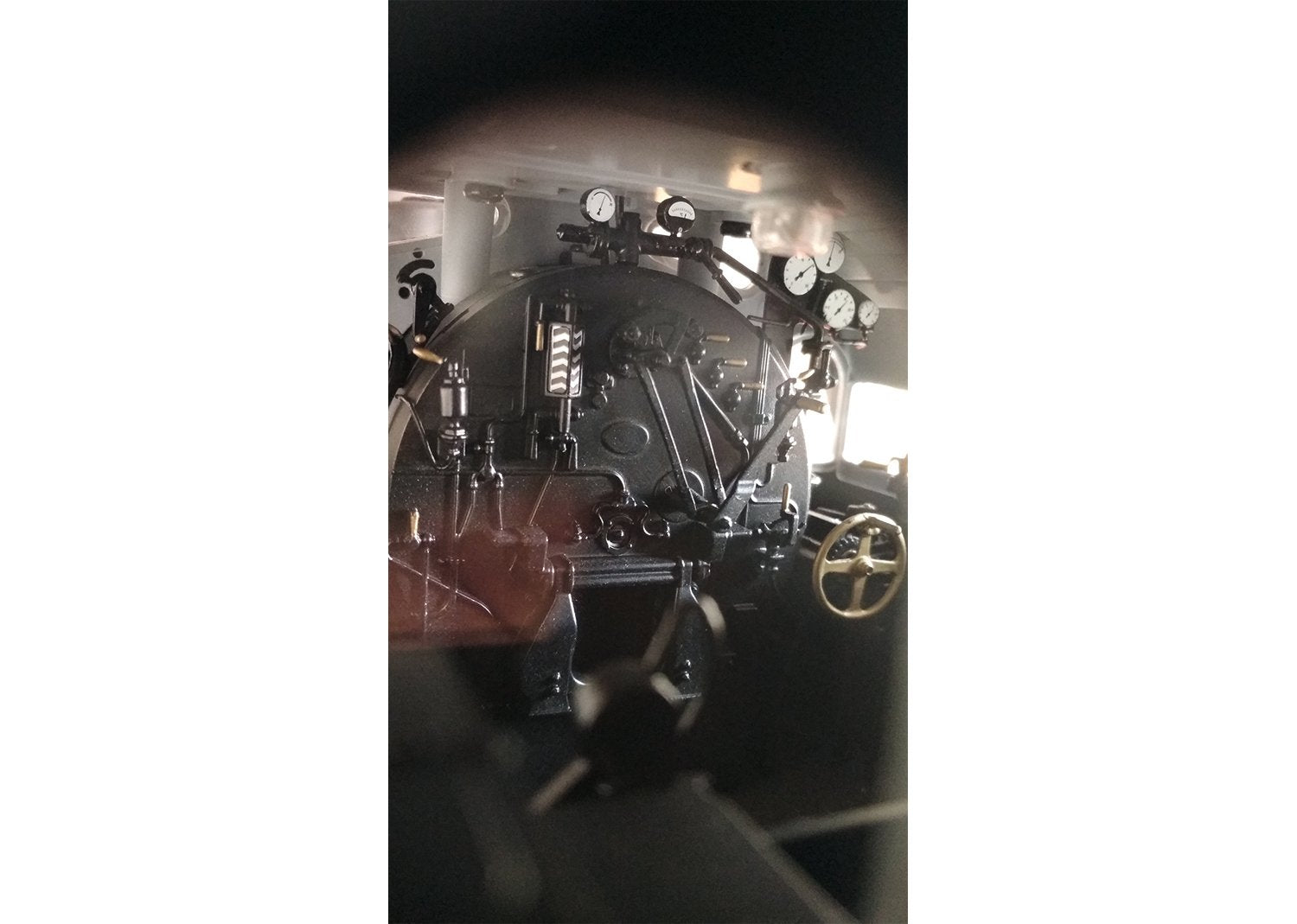

Model: The locomotive is completely new tooling. The frame and the locomotive body with boiler and cab are constructed of die-cast zinc. Other applied parts are constructed mostly of metal (brass). This is a highly detailed model with many separately applied details and a prototypically detailed cab. The locomotive has a cab with a Prussian double roof and 2 boiler attachments (round steam dome and sand box). The smoke box door has central locking and can be opened. The water tank hatches can be opened, the cab doors can be opened, and much more. The locomotive has an mfx digital decoder with many possible functions, controlled high-efficiency propulsion, and a sound generator with running sounds synchronized to the wheels as well as extensive sound functions.

The locomotive can be operated with AC power, DC power, Märklin Digital, and DCC. The locomotive has a built-in current buffer. All driving axles powered. The locomotive has a built-in smoke generator with steam chuffing synchronized to the wheels, cylinder steam, and a steam whistle. There are double headlights front and rear that change over with the direction of travel. The light color is correct for the era. The headlights will work in conventional operation and can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting. Red marker lights can be controlled. The locomotive has sprung buffers, and cab and firebox lighting. The locomotive comes with a prototype coupler on the front and a remote controlled Telex coupler on the rear. Both couplers can be replaced by the other type. The valve gear switchover is in 3 steps (forward, reverse, continuous operation). An accessory package with one each reproduction prototype coupler and a Telex coupler, smoke fluid, and a figure of a locomotive engineer and a fireman is included with the locomotive. The locomotive is mounted on an aluminum base painted black for display case presentation.

The minimum radius for operation of the train is 1,020 mm / 40-1/8".

Length over the buffers 46.2 cm / 18-3/16". Weight approximately 6.2 kilograms / 13 pounds 11 ounces.

Publications

- New items brochure 2018 - Product programme 2018/2019 - Product programme 2019/2020

Features

$
) Metal frame and locomotive body.
e Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
§ DCC decoder
h Built-in sound effects circuit.
E Dual headlights that change over with the direction of travel.
+ Built-in LED interior lighting.
1 Era 1
Y ATTENTION: adults only

Warning

ATTENTION: adults only
Control Unit Mobile Station Mobile Station 2 Central Station 1/2 Central Station 3/2
Headlight(s) X X X X X
Smoke generator X X X X X
Steam locomotive op. sounds X X X X X
Locomotive whistle X X X X X
Telex coupler on the rear X X X X X
Engineer’s cab lighting X X X X
Sanding X X X X
Whistle for switching maneuver X X X X
Direct control X X X X
Sound of squealing brakes off X X X
Sound of coal being shoveled X X X
Tipping grate X X X
Air Pump X X X
Injectors X X X
Water Pump X X X
Letting off Steam X X X
Marker light(s) X X
Whistle for switching maneuver X X
Conductor's Whistle X X
Rail Joints X X
Cab chatter X X
Cab chatter X X
Safety Valve X X
Station Announcements X X
Replenishing fuel X X
Replenishing fuel X X
Replenishing fuel X X
Special sound function X X
Auxiliary Blower X X
Telex coupler on the front X X
