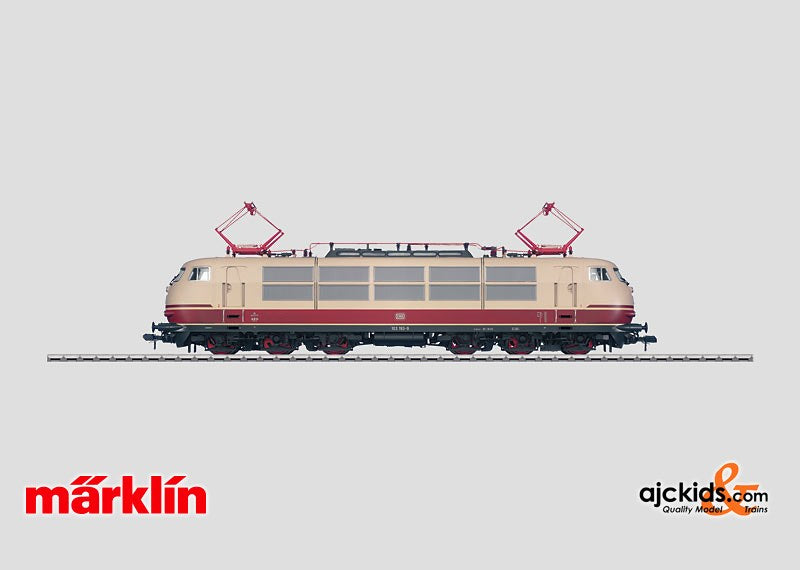

Marklin 55103 - Electric Locomotive BR 103.1

Marklin 55103 - Electric Locomotive BR 103.1



Product Description

Prototype: German Federal Railroad (DB) class 103.1 express locomotive. Regular production version with double-arm pantographs and a double row of side vents.



Model: The locomotive's frame and the side frames on the trucks are constructed of metal. The body is prototypically divided into parts and is constructed chiefly of metal. The locomotive has an mfx digital decoder with motor control which can be operated with AC power, DC power, Märklin Digital, and Märklin Systems. The locomotive has a powerful motor, centrally mounted. All of the axles in both trucks are powered through cardan shafts. The white headlights and red marker lights are LED's, they will work in conventional operation and can be controlled digitally. White LED's to light up the engineer's cab at the front of the locomotive (depending on the direction of travel) and the engine room. The engineer's cab doors can be opened, the locomotive has interior details, and there is a figure of an engineer in cab 1. The grab irons are metal and there are many other separately applied details: DB signs, windshield wipers, antenna, whistle, headlight bezels, and much more. The roof equipment is reproduced in detail with newly designed double-arm pantographs. The buffer beams have sprung buffers and separately applied brake lines. The Märklin couplers can be replaced by closed end skirting and prototype couplers.

Minimum radius for operation 1,020 mm / 40-3/16". Length over the buffers 60.9 cm / 24".

  Control
Unit
Sx Mobile
Station
DCC Mobile
Station 2
Central
Station
Headlight(s) ·   ·   · ·
Engineer’s cab lighting ·   ·   · ·
Electric locomotive op. sounds ·   ·   · ·
Locomotive whistle ·   ·   · ·
Direct control ·   ·   · ·
Compressor     ·   · ·
Letting off Air     ·   · ·
Station Announcements     ·   · ·
Conductor's Whistle     ·   · ·
Sound of squealing brakes off         · ·
Rear Headlights off         · ·
Front Headlights off         · ·

Highlights:
  • The typical TEE and IC locomotive as new tooling.
  • The entire locomotive is constructed mostly of metal.
  • Scale, profession quality model with super detailing.
  • Powerful all-wheel propulsion by means of a centrally mounted motor and cardan shafts.
  • White LED's for headlights and interior lighting.

The 55103 electric locomotive is being produced in 2008 in a one-time series only for Insider members.


The Class 103 - the DB's Media Star! The German Federal Railroad ushered in a new era, when the class E 03 was presented in 1965 at the International Transportation Exhibition in Munich: regularly scheduled passenger service at 200 km/h / 125 mph. In addition, the class E 03, designated as the class 103 in the German Federal Railroad's roster from 1968 on, represented a milestone in locomotive development - it was the first express locomotive to surpass the class E 19, whose design dated back to the Thirties. Reason enough to be proud of this powerful, beautifully shaped locomotive and to put it accordingly in the limelight. Hardly any other locomotive like the class 103, known for an entire generation as the Intercity locomotive, was marketed so much in the media. In TV ad spots, posters, and brochures this locomotive became a symbol for the German Federal Railroad's dynamism, a guarantee for reliability, speed, and comfort. Extensive test runs, among them regular speeds of 200 km/h / 125 mph between Munich and Augsburg, were done with four prototypes, until the class 103 was purchased as a regular production unit starting in 1970. The 145 locomotives differed from the prototypes in leaving off the decorative striping and in double rows of vents. Single-arm pantographs were installed on the locomotives from 1976 on, and the last series of units delivered had longer engineer's cabs, because crews complained about the cramped work space. The aerodynamic, six-axle locomotive had a total continuous power rating of 7,440 kilowatts / 9,977 horsepower and was the most powerful DB locomotive until the use of three-phase current technology. The high startup tractive effort as well as the electric brakes, independent for the first time of the catenary and connected in series with air brakes, drew favorable comment worldwide. The performance strengths of the 103 were reflected in the enormous number of runs and even today it is still rated as the locomotive with the highest level of service life in Germany. Its uncommonly attractive looks remained essentially unchanged during its use on the DB. In later years, the skirting and the buffer cladding were removed and several locomotives were painted in the "Chinese red" color scheme; only one unit was painted in "traffic red". The German Federal Railroad's class 103 was very popular with crews and passengers right up to the end of its regularly scheduled use, and it is understandable that a considerable number of them have remained preserved as museum locomotives. Many people today remember back as if it were just yesterday when they were young and how the 103 flew past them on the station platform. From the time the prototype was placed into service, it was a special challenge and pleasure for the firm of Märklin to develop a corresponding model and offer it to our customers. For that reason, we are also proud in 2008 that a model of this first class locomotive will also be produced in 1 Gauge exclusively for our loyal Insider customers. The translation of the real life locomotive into the model is being done in the customary uncompromising manner and the model of the class 103 will be a star in your 1 Gauge collection as it once was a star in the prototype.




The contemporary car types for the TEE "Rheingold" in the sets, item nos. 58038 and 58039, are the right express train passenger cars to go with the 103.1.


Marklin 55103 Instructions: You can download the Instruction Manual for Marklin 55103 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 55103
Scale 1-Scale (1:32)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

Country Germany
Era IV
Railroad DB - German Bahn
Railroad DB - German Bahn AG
UPC or EAN (GTIN) 4001883551036

Instruction Manual Download


You can download the Instruction Manual for Marklin 55103 as a .pdf file here:

 Marklin 55103 Instruction Manual
