Scale: 1-Scale

EAN/UPC: 4001883557533

System: 3-Rail AC (Märklin).

View full details

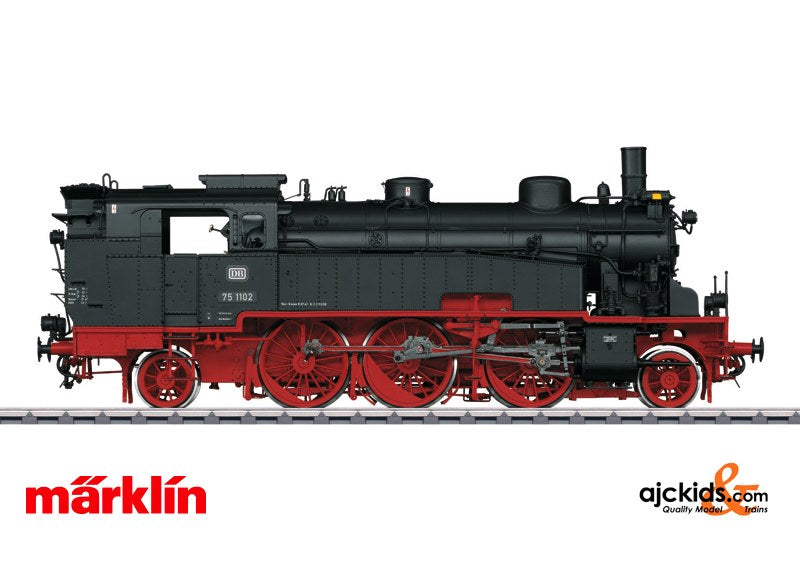

Prototype: German Federal Railroad (DB) class 75.4 10-11 steam tank locomotive. Former Baden VIc.

Model: The locomotive is completely new tooling with the frame and locomotive body with boiler constructed of die-cast zinc. Other separately applied parts are mostly made of metal. This is a highly detailed model with many separately applied details and a detailed engineer's cab. The locomotive has a bell separately applied behind the smoke stack, does have a raised addition to the coal bunker, a short smoke stack, a smoke box door without a central locking mechanism, a water tank hatch that can be opened, a sand dome that can be opened, cab doors that can be opened, and much more.

The locomotive has an mfx digital decoder, controlled high-efficiency propulsion, and a sound generator with operating sounds synchronized with the wheels as well as extensive sound functions. The locomotive can be operated with AC power, DC power, Märklin Digital, and DCC. 3 axles powered.

The locomotive has a built-in smoke unit with smoke exhaust synchronized with the wheels, cylinder steam, and a steam whistle. The locomotive has triple headlights that change over with the direction of travel and have a light color correct for the era. The headlights will work in conventional operation and can be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. Cab and firebox lighting are included. There is running gear lighting on the left side of the locomotive. The locomotive has a prototype reproduction coupler on the front and a claw coupler on the rear. Both can be changed to the other type of coupler. An accessory package with a prototype reproduction coupler and a claw coupler, smoke fluid, and figures of an engineer and fireman is included with the locomotive.

Minimum radius for operation is 1,020 mm / 40-1/8".

Length over the buffers 39.7 cm / 15-5/8".


  Control
Unit
Sx Mobile
Station
DCC Mobile
Station 2
Central
Station
Headlight(s) ·   ·   · ·
Smoke generator ·   ·   · ·
Steam locomotive op. sounds ·   ·   · ·
Locomotive whistle ·   ·   · ·
Direct control ·   ·   · ·
Engineer’s cab lighting     ·   · ·
Sound of coal being shoveled     ·   · ·
Bell     ·   · ·
Whistle for switching maneuver     ·   · ·
Sound of squealing brakes off         · ·
Letting off Steam         · ·
Running gear lights         · ·
Water Pump         · ·
Generator Sounds         · ·
Injectors         · ·
Grate Shaken         · ·


Highlights:

  • Completely new tooling.
  • Highly detailed full metal construction. Frame, superstructure, boiler, etc. constructed of die-cast zinc.
  • Smoke generator with smoke exhaust synchronized with the wheels, cylinder steam, and steam whistle.
  • Operating sounds synchronized with the wheels and controlled by the load.
  • Smoke box door and dome cover can be opened and include many details from the real life locomotive.
  • Warm white LEDs for the headlights in the light color correct for the era.
  • Two-color firebox flickering.
  • Running gear lighting on the left side as in the prototype.
  • Engineer's cab lighting.
  • mfx decoder for operation with AC power, DC power, Märklin Digital, and DCC.



EAN/UPC: 4001883557533
