Marklin 60173 - Booster with MFX, replaced by 60174

Marklin 60173 - Booster with MFX, replaced by 60174 in H0 Scale

Product Description

This booster is replaced by the Marklin 60174.

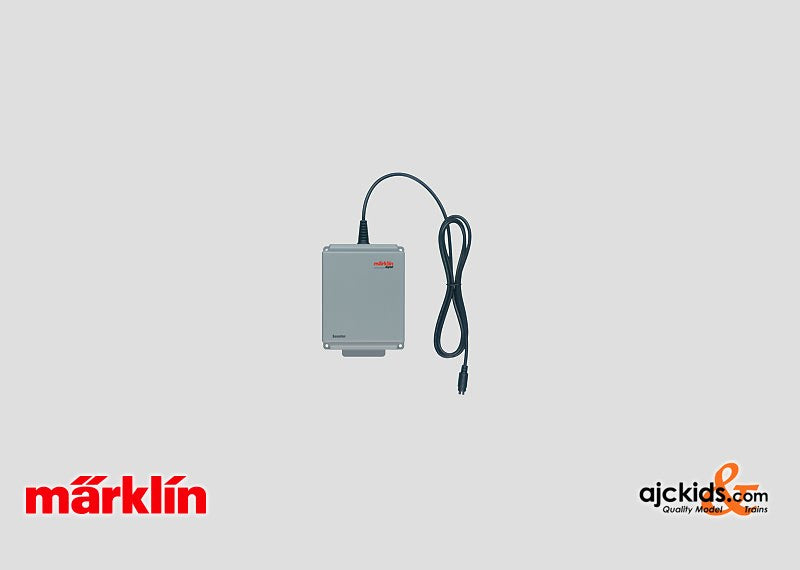

This is a power booster for large digitally controlled layouts (H0 and 1). It is mfx-capable in conjunction with the 60213 Central Station. It is connected directly to the 60213/60214  Central Station by means of a 9-conductor data bus line. Several Boosters can be used in a system by means of 60125 Terminals.

The Booster registers automatically with the 60213/60214 Central Station. The status display for the Booster is shown with an LED on the Booster and graphically in the display for the 60213/60214 Central Station. When a 60052/60055 transformer is used, the maximum power output of 48 VA and a maximum current of 3 amps is available.

Dimensions 150 x 110 x 80 mm / 5-7/8" x 4-5/16" x 3-1/8".

Charlie's Tip: The Booster 60173 is destined to be used in conjunction with the 60213/60214  Central Station only. It will not pass DCC data. If you use DCC as well as Marklin Motorola and Marklin MFX, use the 60174 booster.

Marklin 60173 Instructions: You can download the Instruction Manual for Marklin 60173 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 60173
Scale All Scales
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

UPC or EAN (GTIN) 4001883601731

Instruction Manual Download


You can download the Instruction Manual for Marklin 60173 as a .pdf file here:

 Marklin 60173 Instruction Manual
