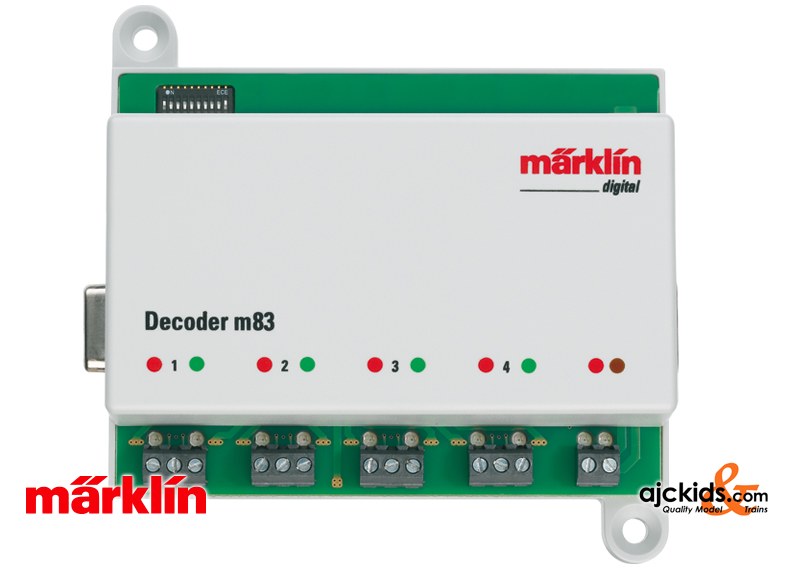

Marklin 60831 - M 83 Decoder (now 60832)

Marklin 60831 - M 83 Decoder (now 60832) in H0 Scale

Product Description

This is a receiver for controlling turnouts, signals, and uncoupler tracks. The m 83 supports the Motorola and DCC digital formats. The digital address can be set using the coding switches or by means of a programming track.

The available address range in the Motorola format is up to address 320 and in the DCC format up to address 2040. The m 83 has 8 outputs, and each one can be controlled separately. The default setting is for up to 4 turnouts. Other functions are controlling lighting (dimmable) with a defined power-on behavior (example: street lighting) as well as controlling building lighting (houses, etc.). It is possible to have an outside power supply such as the 66361/66365. The 60831 and 60841 decoders can be arranged in any order desired. A 60821 accessory set per output is required for turnouts with turnout motors.

Connections are done with set screw terminals. The maximum current load is 3 amps.


Highlights:

  • Many new control possibilities.
  • LED indicators for fast recognition of operating status.
  • Can be updated.
Marklin 60831 Instructions: You can download the Instruction Manual for Marklin 60831 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 60831
Scale All Scales
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

UPC or EAN (GTIN) 4001883608310

Instruction Manual Download


You can download the Instruction Manual for Marklin 60831 as a .pdf file here:

 Marklin 60831 Instruction Manual
