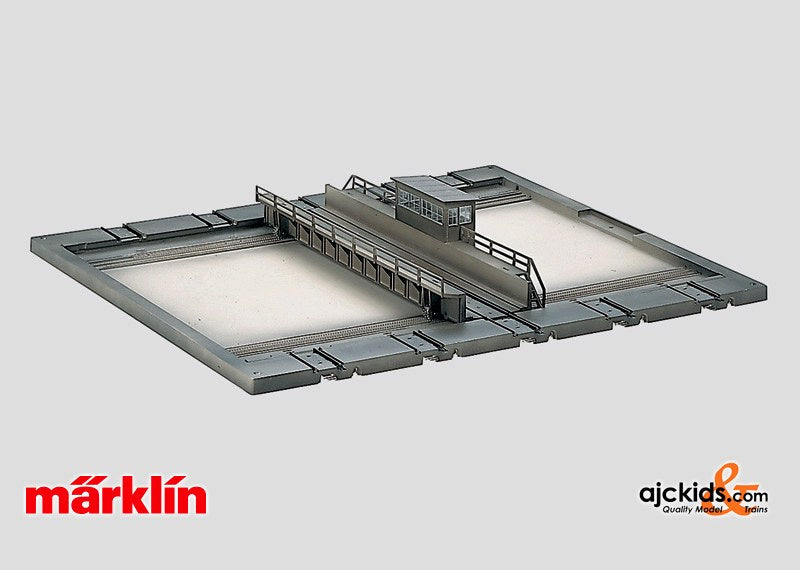

Marklin 7294 - Remote Control Transfer Table (replaced by 72941)

Marklin 7294 - Remote Control Transfer Table (replaced by 72941) in H0 Scale

Product Description

The base plate has 2 approach tracks and 8 stall tracks. The track connections are for M Track. The transfer table can also be used with C Track and K Track in conjunction with adapter tracks. It can be used with the 7289 locomotive shed. The deck has a motor in the operator's shed for forward and reverse operation. A control box and cable for remote control are included. The deck stops automatically at the tracks. Track power to the stall tracks comes through the deck. There are additional connections for catenary.

Dimensions of the base 360 x 420 mm / 14-3/16" x 16-1/2". Deck length 288 mm / 11-3/8".


The transfer table can also be controlled with Märklin Digital using a k 84 decoder. The connections for the transfer table are described in the instructions for the k 84 decoder and in the 0308 Digital book.


Marklin 7294 Instructions: You can download the Instruction Manual for Marklin 7294 as a .pdf file, at the "instructions" tab above.

More Information

Manufacturer Marklin
Item 7294
Scale H0-Scale (1:87)
Availability

This item is currently out of stock.
The arrival estimate has not yet been updated.

UPC or EAN (GTIN) 4001883072944

Instruction Manual Download


You can download the Instruction Manual for Marklin 7294 as a .pdf file here:

 Marklin 7294 Instruction Manual
