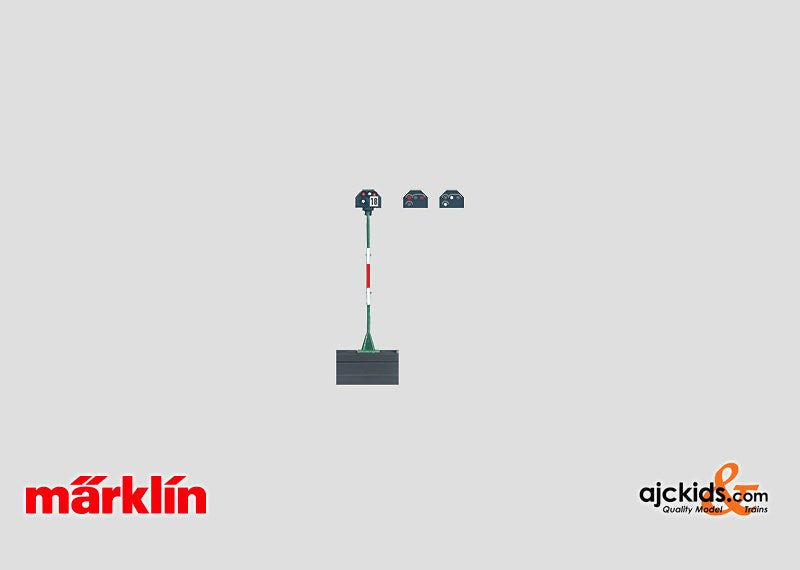

Marklin 76472 - Color Light Track Block / Yard Signal

Prototype: German Federal Railroad (DB) standard design yard signal. High mounted signal with tubular mast. 2 settings: "Stop" - red/red (Sh0) and "Proceed" - white/white (Sh1).


Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation of the signal. Connections for controlling train movements are on the signal decoder.

Height without base 50.0 mm / 1-15/16".


Highlights:

• Yard signal for use in switching areas.
• Prototypical thin pipe mast.
• The Sh1 aspect is correct with 2 white lights.
